Parking Collision-Avoidance Assist operation

Turning Parking Collision-Avoidance Assist On/Off

2C_ParkingSafetyButton

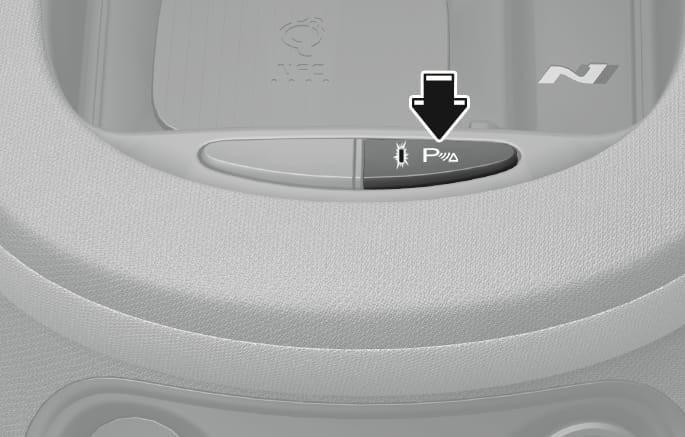

Press and hold the Parking Safety (ÿ) button more than 2 seconds, 'Rear Active Assist' or to turn the Parking Collision-Avoidance Assist on or off.

Operating conditions

If Parking Collision-Avoidance Assist detects a risk of collision behind the vehicle with a pedestrian or an object, Parking Collision-Avoidance Assist will warn the driver with an audible warning, warning message on the instrument cluster, and steering wheel vibration (if equipped). If Surround View Monitor is operating, a warning will appear on the infotainment screen.

If collision is imminent, Parking Collision-Avoidance Assist will assist you with braking.

Select "Rear safety" from the "Parking safety" menu of the infotainment system. Parking Collision-Avoidance Assist is enabled when the following conditions are satisfied:

Rear Safety

  • The tailgate and door are closed

  • The Electronic Parking Brake (EPB) is released

  • A trailer is not connected

  • The gear is shifted to R (Reverse)

  • Vehicle speed is below 6 mph (10 km/h) (detecting pedestrians)

  • Vehicle speed is below 2.4 mph (4 km/h) (detecting objects)

  • Parking Collision-Avoidance Assist components such as the rear view camera and the rear ultrasonic sensors are in normal conditions

Front/Side Safety

  • Front/Side safety is selected from the Parking Safety settings menu in the infotainment system.

  • The tailgate and door are closed

  • The Electronic Parking Brake (EPB) is released

  • A trailer is not connected

  • The gear is shifted to R (Reverse) or D (Drive)

  • Vehicle speed is below 2.4 mph (for pedestrians, objects)

  • Parking Collision-Avoidance Assist components such as the rear view camera and the rear ultrasonic sensors are in normal conditions

When Parking Collision-Avoidance Assist activates, a line appears behind the vehicle image in the instrument cluster.

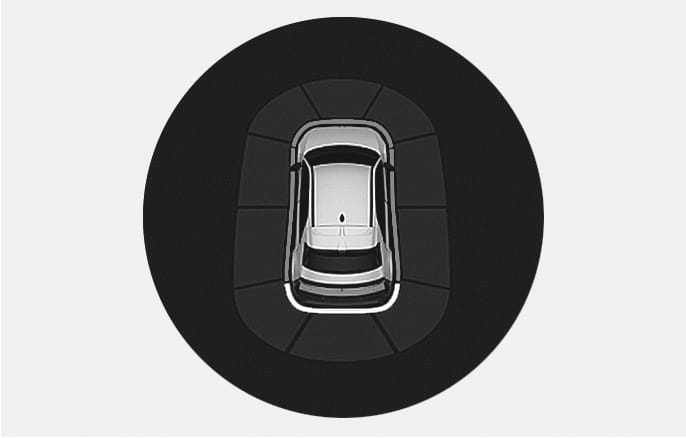

  • Rear Safety: Behind the vehicle image

    2C_PCAOnInfo

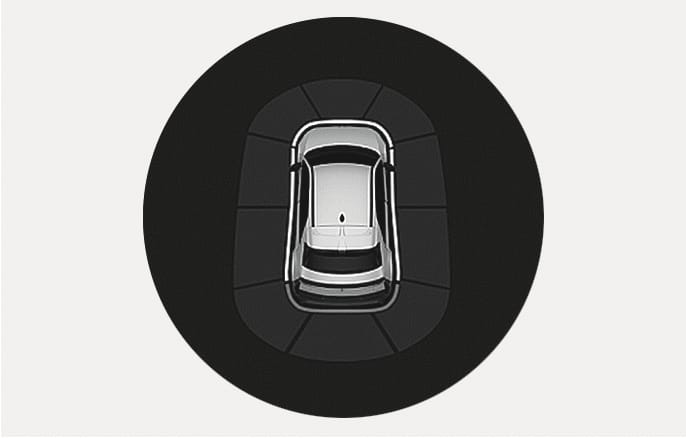

  • Front/Side Safety: In front of vehicle image

    2C_PCAOnInfo_2

Parking Collision-Avoidance Assist operates only once after shifting the gear to R (Reverse) or D (Drive). To reactivate Parking Collision-Avoidance Assist, shift the gear from another gear to R (Reverse) or D (Drive).

Off conditions

Front/Side Safety

Braking assist is released 2 seconds after shifting to D (Drive) and 5 minutes after shifting to R (Reverse). Immediately depress the brake pedal and check vehicle surroundings.

Braking assist is also released in the following conditions when:

  • The gear is shifted to P (Park) or R (Reverse)

  • The brake pedal is depressed with sufficient power

Rear Safety

Braking assist is released after 5 minutes. Immediately depress the brake pedal and check vehicle surroundings.

Braking assist is also released in the following conditions when:

  • The gear is shifted to P (Park) or D (Drive)

  • The brake pedal is depressed with sufficient power

When Parking Collision-Avoidance Assist is activated whilst reversing, braking control will be released after 5 minutes and the Electronic Parking Brake (EPB) will be engaged.
