Rear seats

Seat adjustment

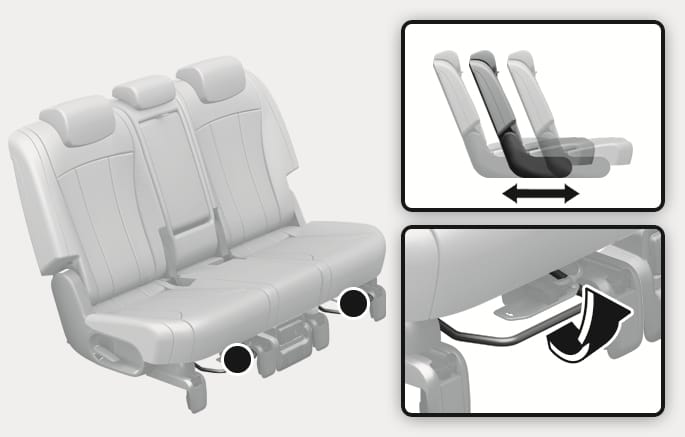

Forward and rearward adjustment

2C_AdjustRearSeatForwardBackwardmanual

To move the seat forward or rearward:

  1. Pull up the seat slide adjustment leverand hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place.

For the optimal safety, slide the rear seat to the rearmost position.

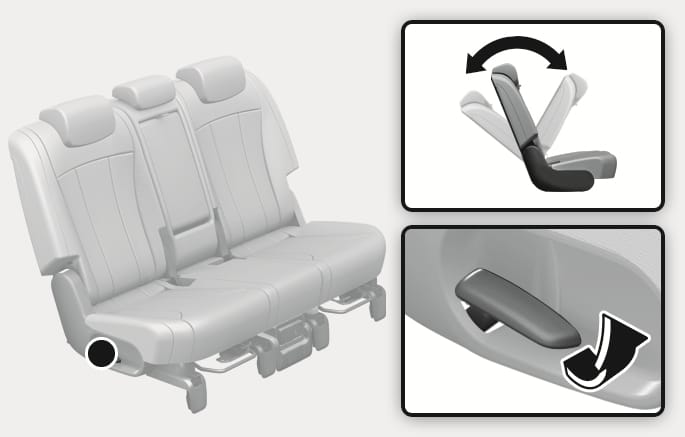

Seatback angle

2C_AdjustRearSeatBackmanual

To recline the seatback:

  1. Pull up the seatback recline lever.

  2. Hold the lever and adjust the seatback of the seat to the desired position.

  3. Release the lever and make sure the seatback is locked in place. The lever MUST return to its original position for the seatback to lock.

Folding the rear seats

The rear seatbacks can be folded to facilitate carrying long items or to increase the rear cargo volume in the vehicle.

Before folding the rear seats, lower the head restraint to the lowest position and store the seat belt to both sides of the seats.

  • Never allow passengers to sit on top of the folded down seatback whilst the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in a collision or sudden stop.

  • Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This can allow cargo to slide forward and cause property damage or serious injury or even death during a collision or sudden stop.

To fold down the rear seatback:

  1. Adjust the front seatback to the upright position and if necessary, slide the front seat forward.

  2. Lower the rear head restraints to the lowest position by pushing and holding the release button (1) and pushing down on the head restraint (2).

    2C_AdjustRearHeadrestUpDown

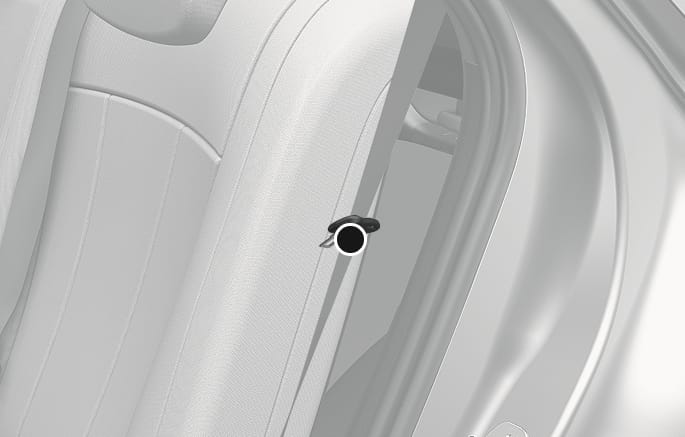

  3. Route the seat belt webbing to the both sides of the rear seat to prevent the belts from being damaged.

    2C_RearSeatBeltHolder

  4. Pull up the seatback folding lever (1), then fold the seat toward the front of the vehicle (2).

    2C_RearSeatBackFoldingLever

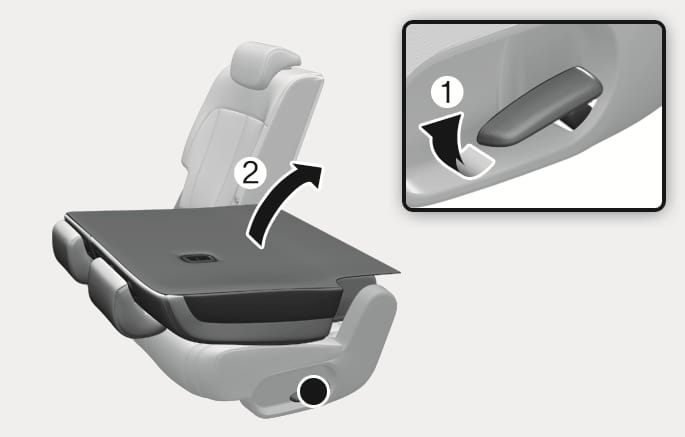

To unfold the rear seatback:

  1. Lift and push the seatback rearward (2) whilst lifting up the front portion of the folding lever (1).

    2C_RearSeatBackUnFoldingLever

  2. Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

  3. Return the rear seat belt to the proper position.

Lock the seatback properly. In a collision or sudden stop, an unlocked seatback may allow cargo to move forward with great force and may result in serious injury or death.

Cargo should always be secured to prevent it from moving in a collision and causing serious injury or death to the vehicle occupants. Do not place objects in the rear seats, because they cannot be properly secured and may hit the front seat occupants in a collision.

Armrest

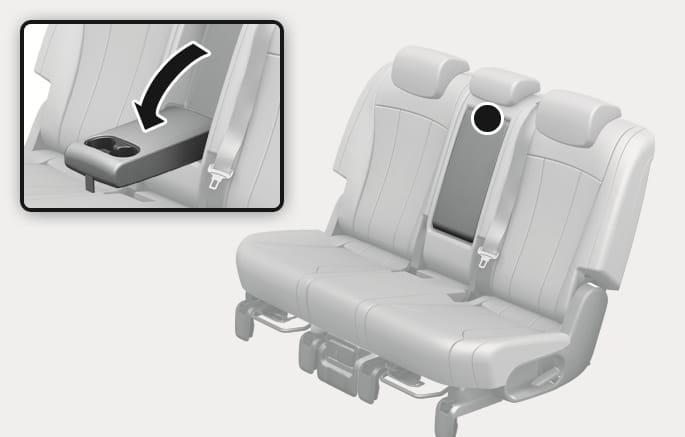

2C_RearArmrestFlip

The armrest is located in the centre of the rear seat. Pull the armrest down from the seatback to use it.

The armrest handle may be pressed when folding the rear seatback, but it will be restored after a certain period of time.
