Headlight aiming

Headlight aiming

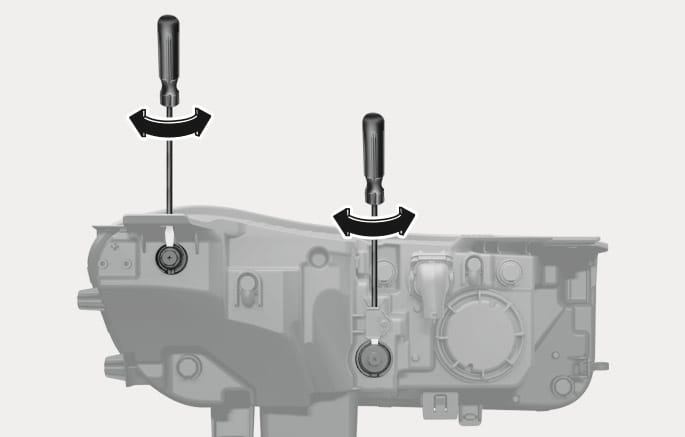

2C_HeadLightAiming

  1. Inflate the tyres to the specified pressure and remove any loads from the vehicle except the driver, spare tyre, and tools.

  2. The vehicle should be placed on a flat floor.

  3. Draw vertical lines (vertical lines passing through respective headlamp centres) and a horizontal line (horizontal line passing through centre of headlamps) on the screen.

  4. With the headlight and battery in normal condition, aim the headlights so the brightest portion falls on the horizontal and vertical lines.

  5. To aim the low beam left or right, turn the driver clockwise or counterclockwise. To aim the low beam up or down, turn the driver clockwise or counterclockwise.

    To aim the high beam up or down, turn the driver clockwise or counterclockwise.

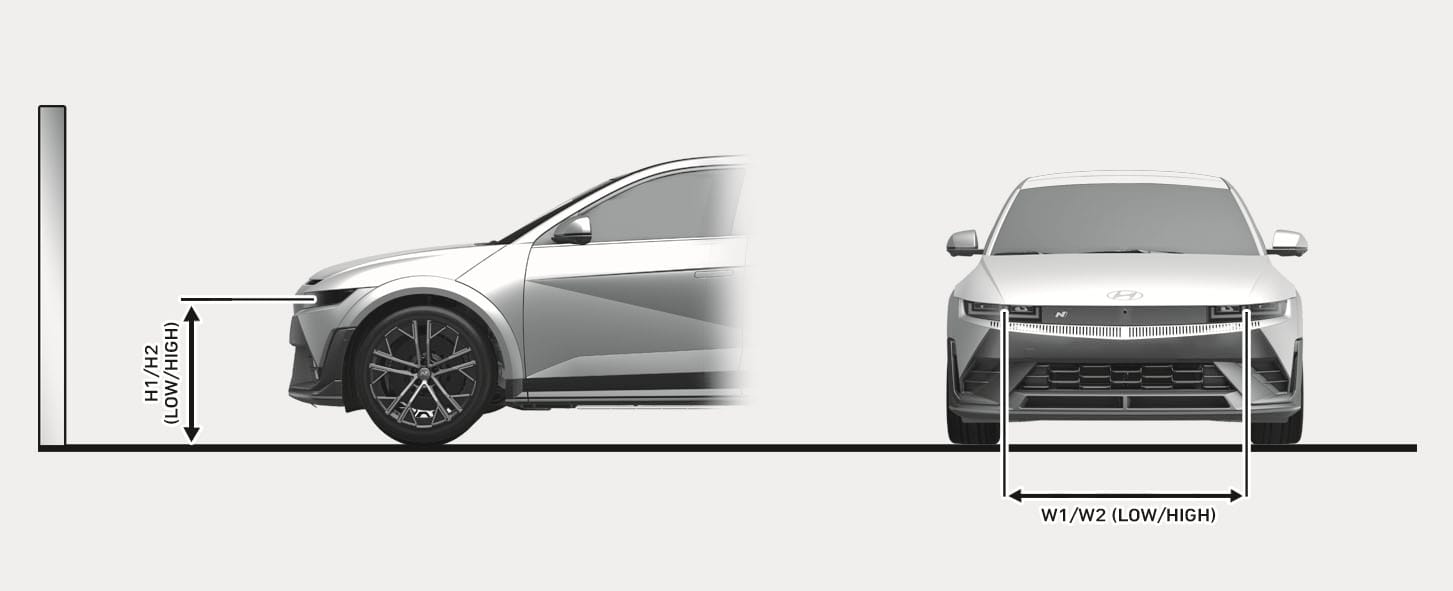

Aiming point

1C_AimingPoint

  1. H1: Height between the headlight centre and ground (Low beam)
  2. H2: Height between the headlight centre and ground (High beam)
  3. W1: Distance between the two headlights centres (Low beam)
  4. W2: Distance between the two headlights centres (High beam)

Vehicle condition

H1

H2

W1

W2

Without driver

in. (mm)

20.4 (518.5)

20 (507.5)

58.6 (1487.2)

42.5 (1079.8)

With driver

in. (mm)

20 (508.5)

19.6 (497.5)

58.6 (1487.2)

42.5 (1079.8)
Headlight low beam

1C_HeadLampLowBeamRHD

  1. Vertical line of the left headlight bulb centre
  2. Car axis
  3. Vertical line of the right headlight bulb centre
  4. cut-off line of left headlamp
  5. cut-off elbow of left headlamp
  6. cut-off line of right headlamp
  7. cut-off elbow of right headlamp
  8. W1 (Low beam)
  9. H1 (High beam)
  10. Ground

  1. Turn the low beam on without driver aboard.

  2. The cut-off line should be projected in the cut-off line shown in the picture.

  3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  4. If headlight levelling device is equipped, adjust the headlight levelling device switch to "0".
