Rear View Monitor settings
2C_WarningTypeSetInfo

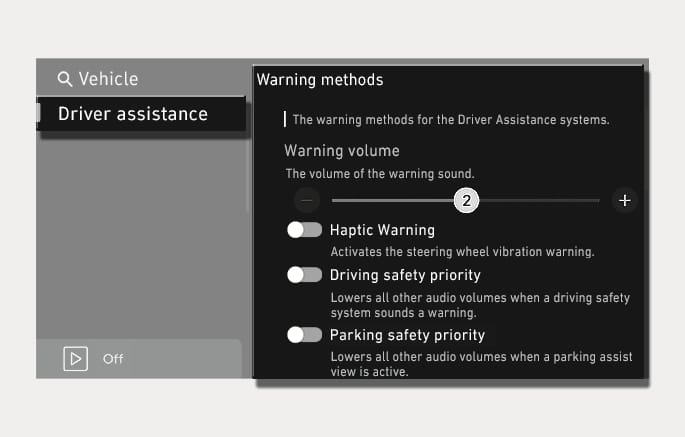

With the vehicle on, select Settings > Vehicle > Driver assistance > Warning methods in the infotainment system to select following:
-
Parking safety priority: Your vehicle lowers all other audio volumes when Rear View Monitor is operating.
-
If you change the Warning methods, the Warning methods of other Driver Assistance systems may change.
-
Warning method will maintain its last setting even if the vehicle is restarted.
-
The setting menu may not be available for your vehicle depending on the vehicle features and specifications.
2C_RVMCameraSettings
-

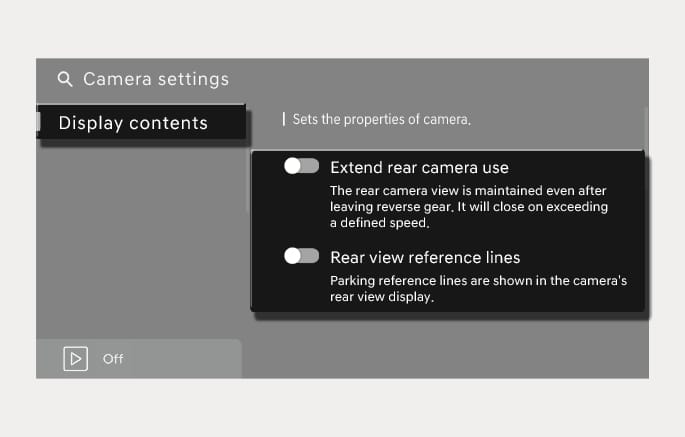

You can change Rear View Monitor "Display contents" by touching the setup icon (
Ĵ ) on the screen whilst Rear View Monitor is operating, by selecting Settings > Display > Camera settings > Display contents in the infotainment system whilst the vehicle is on. -
In the "Display contents", you can change settings for Extend rear camera use and Rear view reference lines.
Extend rear camera use
When the 'Extend rear camera use' is selected, parking Guide Lines is displayed in the rear view.
Rear view reference lines
If 'Rear view reference lines' is selected, the rear view parking guide lines and rear top view guide lines appear on the Rear View Monitor screen.
-
The horizontal guideline of the Rear View Parking Guidance shows the distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m) and 7.6 ft. (2.3 m) from the vehicle.
-
The horizontal guideline of the Rear Top View Parking Guidance shows the tailgate opening distance and the distance of 4.9 ft. (1.5 m) from the vehicle.
