How to adjust tyre pressure

  1. Park your vehicle in a safe location.

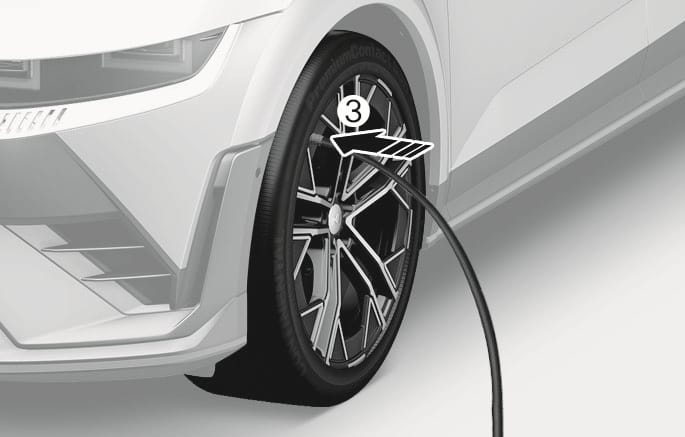

  2. Connect the filling hose (3) of the compressor directly to the tyre valve.

    2C_TMKprocedure_6

  3. Plug the compressor power cord into the vehicle power outlet.

  4. Adjust the tyre inflation pressure to the recommended tyre inflation.

    With the vehicle is ON (¢ indicator ON), proceed as follows.

    • To increase the inflation pressure: Switch on the compressor. To check the current inflation pressure setting, briefly switch off the compressor.

    • To reduce the inflation pressure: Press the button (9) on the compressor.

Do not let the compressor run for more than 10 minutes, otherwise the device will overheat and may be damaged.

  • The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tyre reading, the compressor needs to be turned off.

  • When reinstalling the repaired or replaced tyre and wheel on the vehicle, tighten the wheel nut to 130-145 lbf·ft, 176-196 N·m (18-20 kgf·m).

Do not use the sealant when the tyre pressure only needs to be adjusted.

The tyre inflation pressure must be at least 220 kPa (32 psi). If it is not, do not continue driving.

Call for road side service or towing.
