This message appears if the Start/Stop button is pressed to the OFF position without the gear in the P (Park) position.

If this occurs, the Start/Stop button goes to the ACC position.

This message appears if you try to turn off the vehicle with the gear in N (Neutral).

To turn off the vehicle:

1. Press the Start/Stop button. The Start/Stop button moves to the ON position.

2. Shift the gear to P (Park).

3. Press the Start/Stop button again, then the vehicle turns off.

When the Start/Stop button is pressed to the OFF position, a message may appear, indicating the internal battery of the smart key is low.

Replace the smart key battery.

This message appears if the Start/Stop button is pressed repeatedly without depressing the brake pedal.

Start the vehicle by depressing the brake pedal and then pressing the Start/Stop button.

This message appears if the smart key is not in the vehicle when you have left the vehicle with the Start/Stop button in the ON or Start position.

Always turn off the vehicle before leaving your vehicle.

If you cannot start the vehicle after the Start/Stop button is pressed, attempt to start the vehicle by pressing the Start/Stop button again.

If the warning message appears each time you press the Start/Stop button, have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears if the smart key is not detected when you press the Start/Stop button after accessing with the smart key.

This message is displayed when there is a problem with the smart key system. Have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears if the brake switch fuse is disconnected. Replace the fuse before starting the vehicle.

If that is not possible, start the vehicle by pressing the Start/Stop button for 10 seconds in the ACC position.

This message appears if you try to start the vehicle in any other position except P (Park).

These warning messages are displayed when the regenerative brake system does not work properly.

In this case, have your vehicle inspected by an authorized HYUNDAI dealer.

This message is displayed when there is a problem with the Virtual Engine Sound System (VESS).

In this case, have your vehicle inspected by an authorized HYUNDAI dealer.

This message appears if the vehicle 12V battery voltage is low or if a current draw is detected that could drain the vehicle battery.

Do not connect any external electronic devices to the battery system or battery discharge may occur.

If this message appears on the cluster and there are no other external electronic devices connected to the vehicle, have your vehicle inspected by an authorized HYUNDAI dealer.

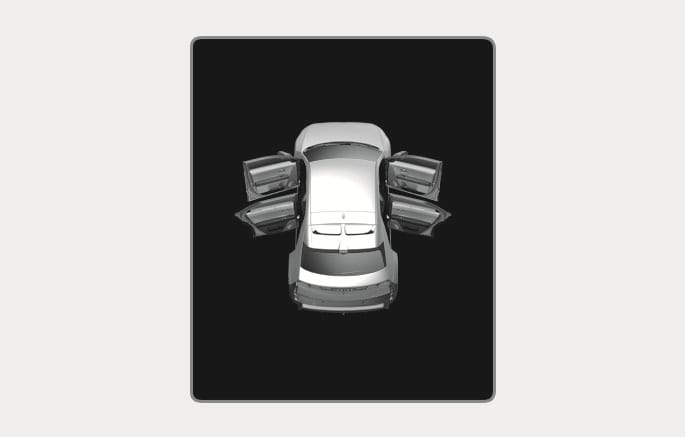

2C_DoorOpenWarning

This warning appears if any door or hood or liftgate is left open. The warning indicates which door is open on the cluster display.

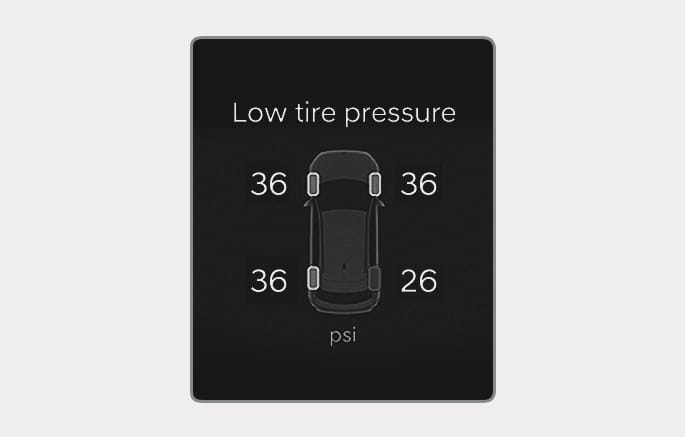

2C_TireLowPressureWarning

This warning message appears if the tire pressure is low. The corresponding tire on the vehicle is illuminated.

For more information, refer to the "Tire Pressure Monitoring System (TPMS)" section in chapter 8.

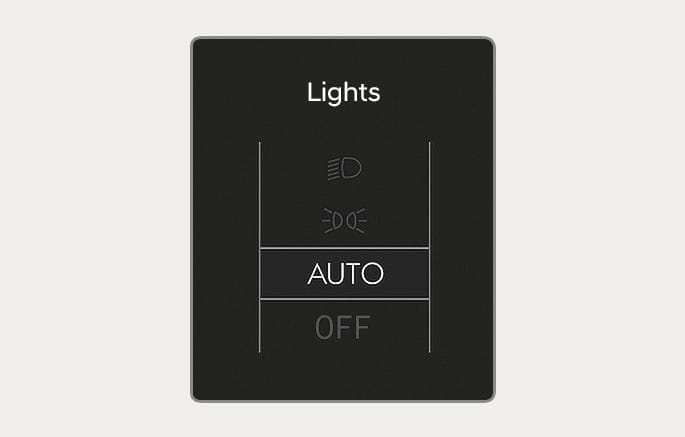

2C_LightMode

This indicator displays which exterior light is selected using the lighting control.

You can activate or deactivate Wiper/Lights display function from the infotainment system. Select Setup > Cluster > Content Selection > Wiper/Lights Display.

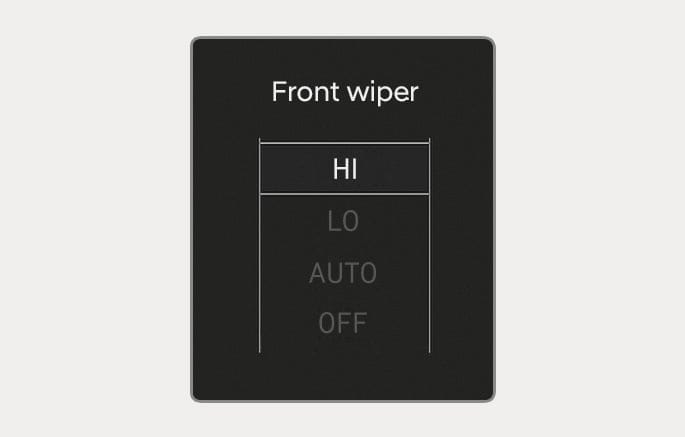

Front

2C_FrontWiperMode

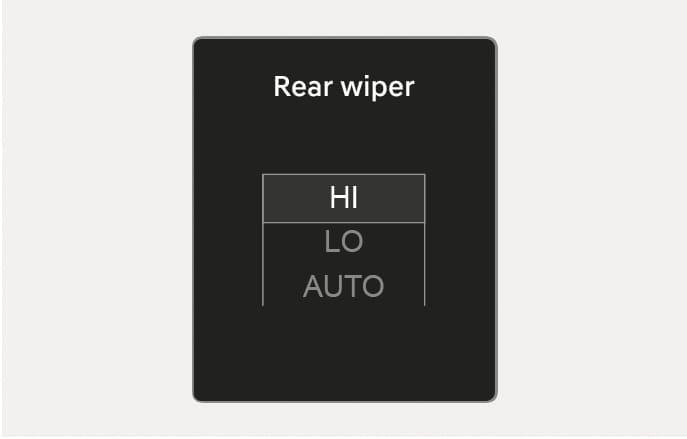

Rear

2C_RearWiperMode

This indicator displays which wiper speed is selected using the wiper control.

You can activate or deactivate Wiper/Lights display function in the infotainment system. Select Setup > Cluster > Content Selection > Wiper/Lights Display.

This message appears if the turn signal lights are not operating properly.

Replace the burned out bulb with a new one with the same wattage rating.

This message appears if there is a problem with the LED headlight. Have your vehicle inspected by an authorized HYUNDAI dealer.

This warning message appears in the following situations:

• There is a malfunction with the actuator flap.

• There is a malfunction with the actuator air flap controller.

• The air flap does not open.

When all of the above conditions are fixed, the warning disappears.
