Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL) Replacement

Type A

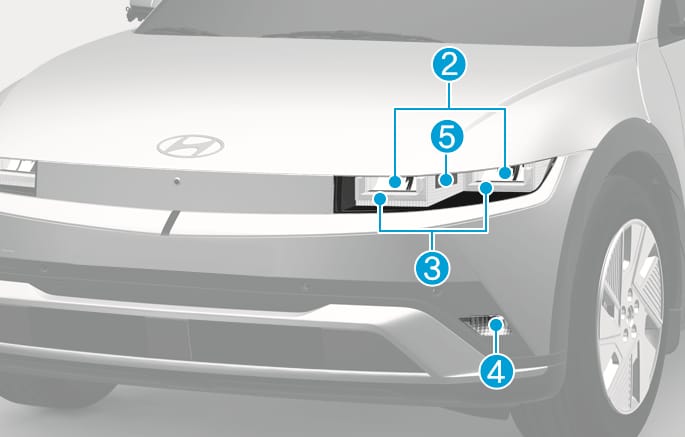

2C_FrontLampOverView_2

Type B

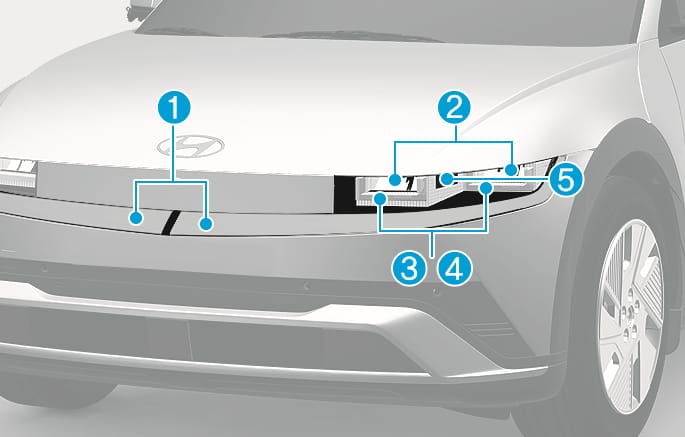

2C_FrontLampOverView_3

  1. Garnish hidden lighting (if equipped)
  2. Headlight (High/Low)
  3. Parking light/Daytime running light
  4. Turn signal light (Type A: Bulb, Type B: LED (if equipped))
  5. Front side marker

If the LED light does not operate, contact an authorized HYUNDAI dealer for replacement.

The LED light cannot be replaced as a single unit. A skilled technician should check or repair the LED light, for it may damage related parts of the vehicle.

Turn signal light (bulb type)

  1. Engage the parking brake and disconnect the negative battery cable.

  2. Remove wheel guard clips (under the front bumper).

  3. Push the wheel guard aside and remove the bulb socket by turning it counterclockwise.

  4. Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket.

    Pull the bulb out of the socket.

  5. Install a new bulb by inserting it into the socket and rotating it until it locks into place.

  6. Push the socket into the assembly and turn the socket clockwise.

  7. Install the wheel guard in the reverse order.

  • Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.

  • Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids.

  • Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.

  • A bulb should be operated only when installed in a turn signal light.

  • If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.

  • Replacing the bulb may cause damage to the bulb relevant parts of the vehicle, and also may cause injuries. To replace the turn signal light, visit an authorized HYUNDAI dealer.
