Vision roof

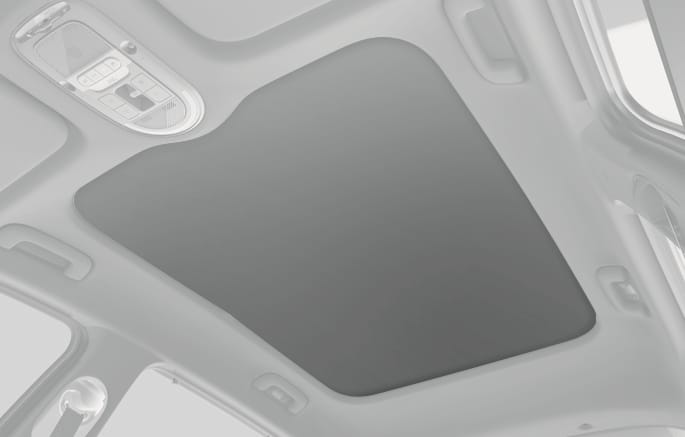

2C_VisionroofOverview

If your vehicle is equipped with a vision roof, you can slide open the power sunshade and an all-glass roof appears.

Power sunshade

Use the power sunshade to block direct sunlight coming through the vision roof glass.

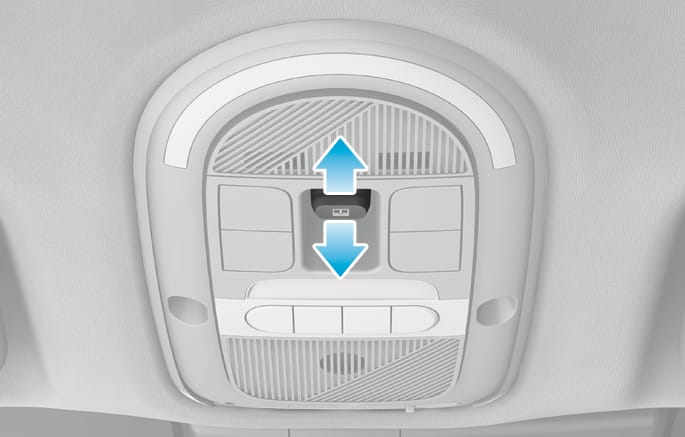

2C_VisionroofPowersunblindOpen

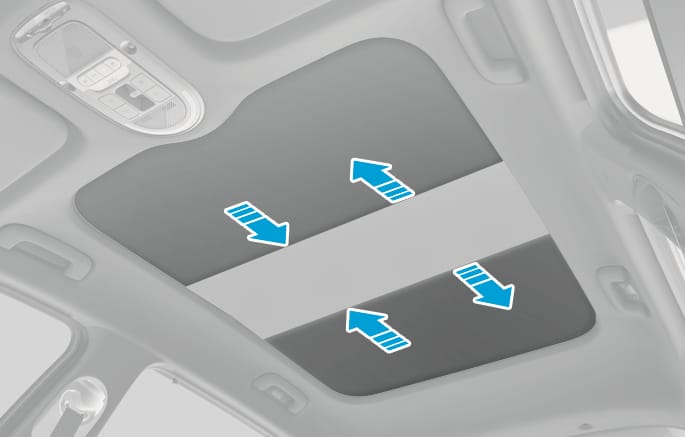

2C_VisionroofPowersunblindOpen_2

The power sunshade can only be operated when the Start/Stop button is in the ON or START position.

  • Push the switch rearward, the power sunshade automatically slides open.

  • Push the vision roof switch forward, the power sunshade automatically closes.

To stop the power sunshade at any point, push the switch in any direction.

  • The power sunshade can be operated for about 3 minutes after the Start/Stop button is in the ACC or OFF position. However, if the front door is open, the power sunshade cannot be operated even within the 3 minute period.

  • Wrinkles formed on the power sunshade are normal due to material characteristic.

  • Adjust the power sunshade when your vehicle stops. This could result in loss of control and an accident that may cause injury, or property damage.

  • Do not leave the vehicle running and the key in your vehicle with unsupervised children. Unattended children could operate the power sunshade, which could result in injury.

  • Do not sit on the top of the vehicle. It may cause injury or vehicle damage.

Do not pull or push the power sunshade by hand as such action may damage the power sunshade or cause it to malfunction.

Automatic reversal

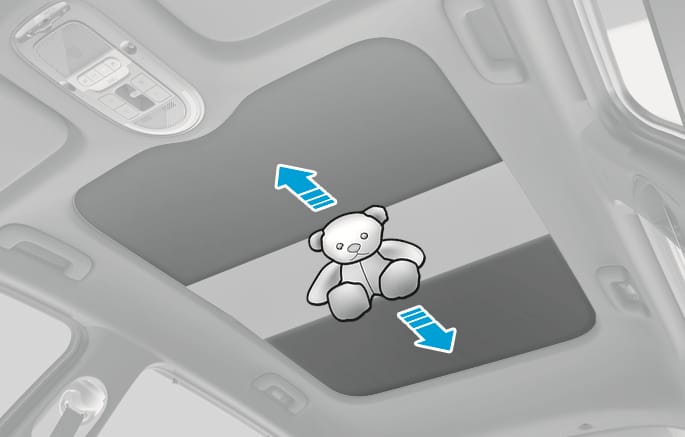

2C_VisionroofAutoReverse

If the power sunshade senses any obstacle while it is closing automatically, it will reverse direction then stop at a certain position.

The auto reverse function may not work if an object thin or soft is caught between the sliding power sunshade and vision roof sash.

  • Make sure heads, hands, arms or any other body parts or objects are out of the way before operating the power sunshade . Body parts or objects may get caught causing injuries or vehicle damage.

  • Never deliberately use your body parts to test the automatic reversal function. The power sunshade may reverse direction, but there is a risk of injury.

Do not continue to push the switch after the power sunshade is fully opened or closed. Damage to the power sunshade motor could occur.
