Instrument cluster

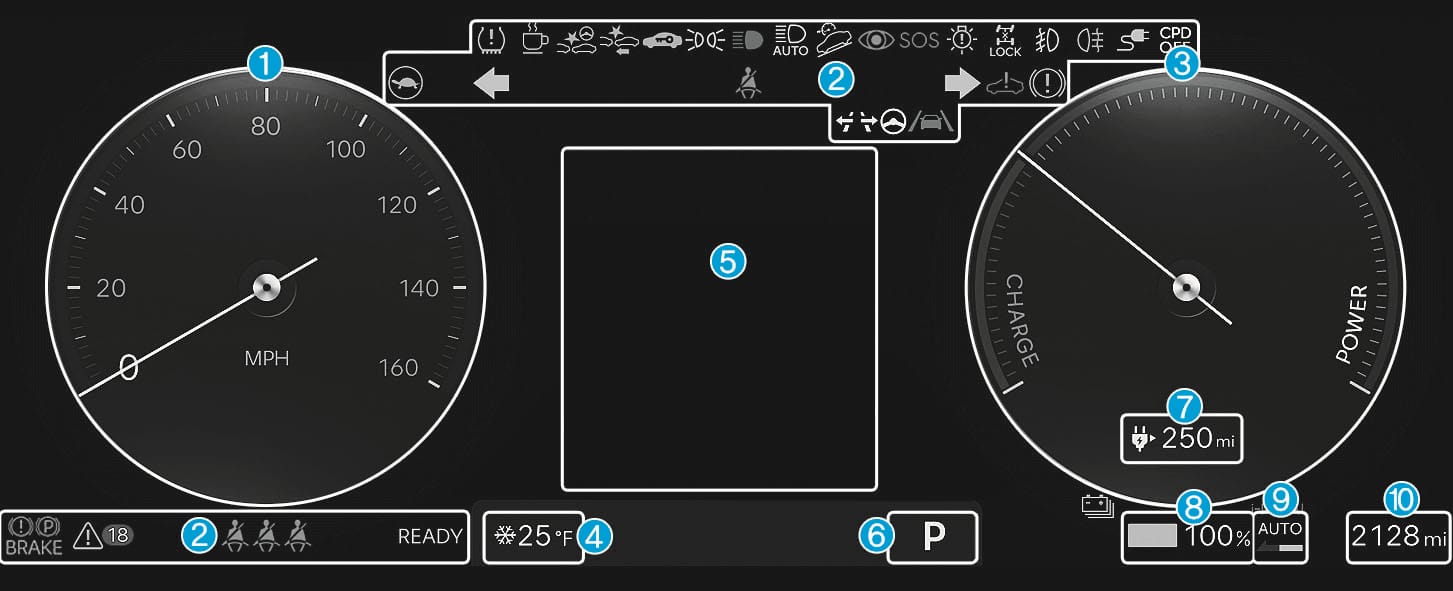

Type A

1C_ClusterOverview

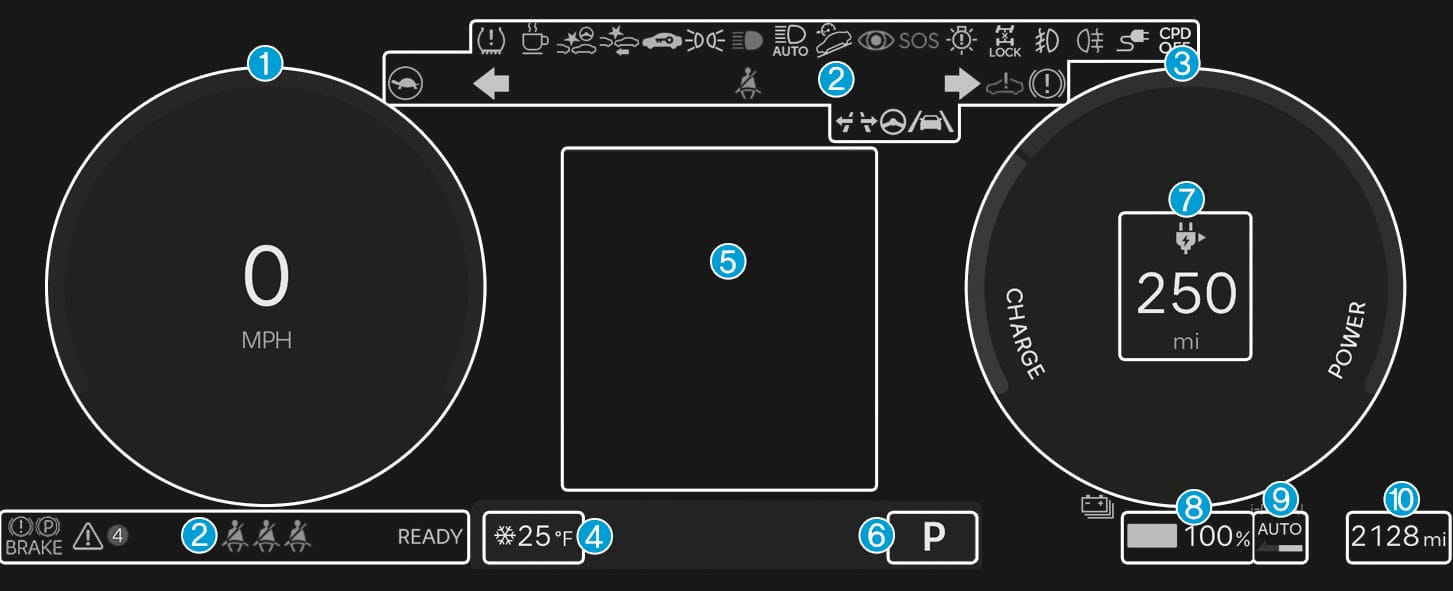

Type B

1C_ClusterOverview_2

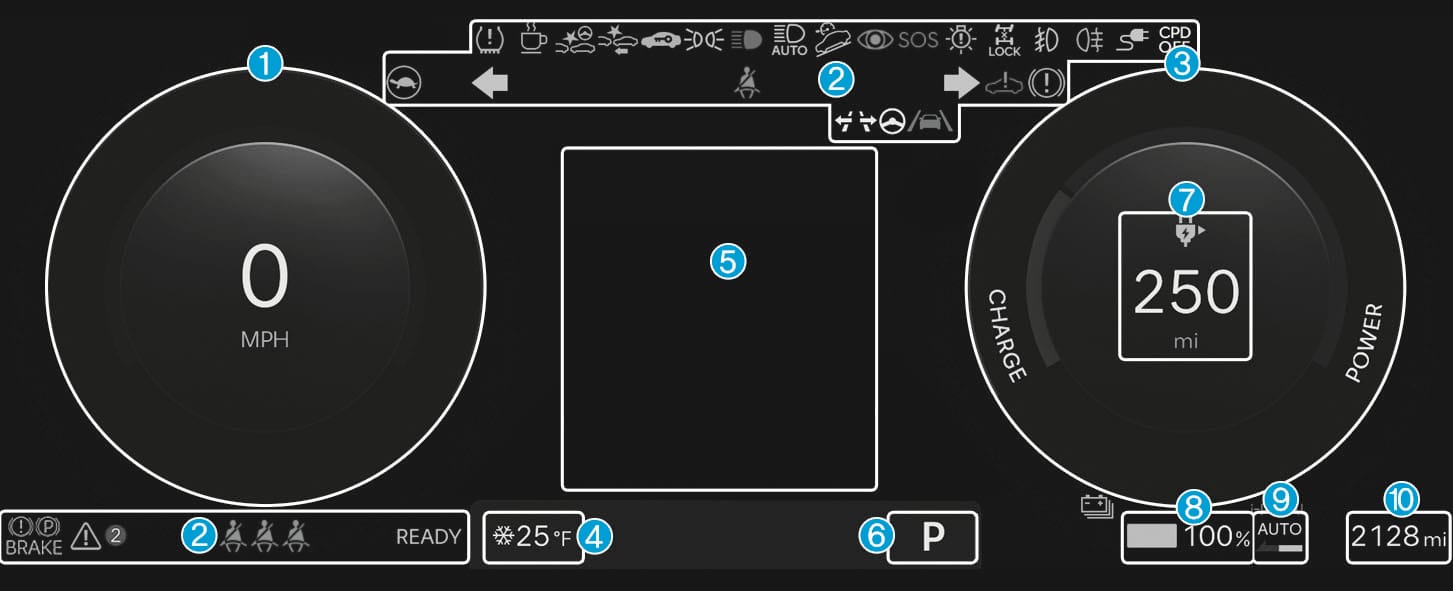

Type C

1C_ClusterOverview_3

The actual cluster in the vehicle may differ from the illustration.

For more information, refer to the "Gauges and Meters" section in this chapter.

The actual cluster in the vehicle may differ from the illustration. For more information, refer to the "Gauges and meters" section in chapter 4 of the complete Owner's Manual.

  1. Speedometer
  2. Warning indicator light
  3. Power/Charge gauge
  4. Outside temperature
  5. Cluster display
  6. Gear shift indicator
  7. Distance to empty
  8. Battery SOC (State of Charge) gauge
  9. Regenerative braking level indicator
  10. Odometer
