Center Console Storage
Console Box
2C_CenterConsoleBox_2

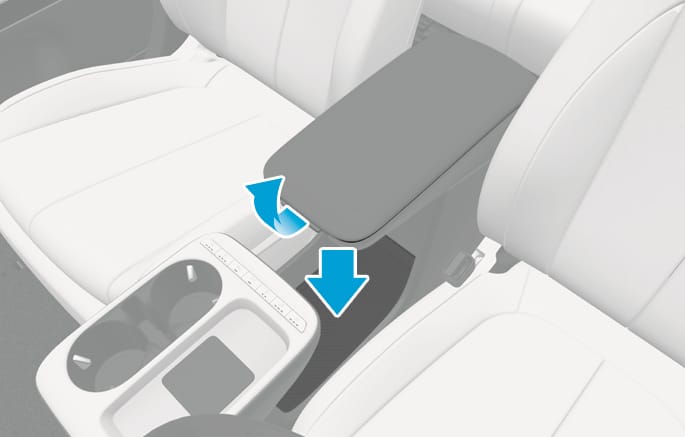

To open :
Grab and hold the latch on the arm rest then lift the lid.
-
This space provides objects storing compartment.
Sliding console
2C_SlidingArmrest

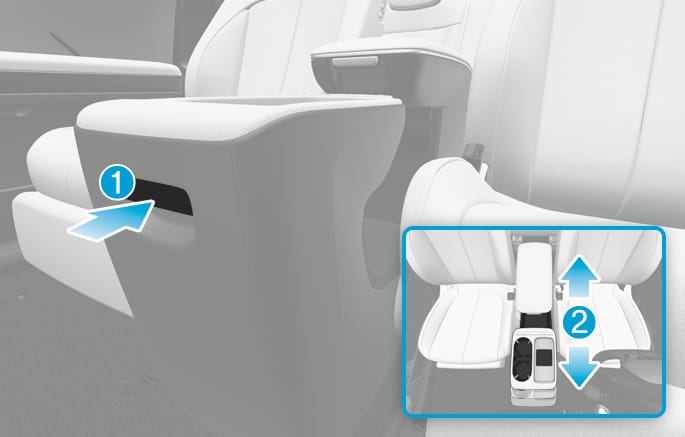

To slide the console (2) forward/backward, pressing the handle (1) and pull or push the console to the desired position.
Check if the console box makes a ‘click’ sound, after moving the center console box.
Use of excessive force to the console box may damage the sliding rail or the control lever.
