Motor compartment panel fuse replacement

Blade fuse/Cartridge fuse

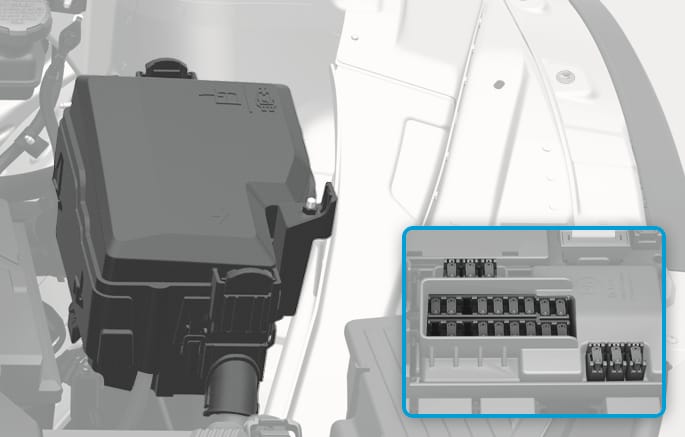

Blade type fuse

2C_EngineRoomFuseReplacement_2

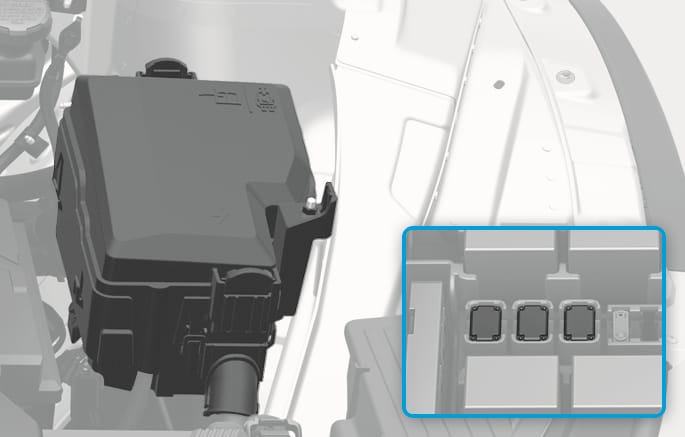

Cartridge type fuse

2C_EngineRoomFuseReplacement_3

  1. Turn off the vehicle.

  2. Turn off all other switches.

  3. Remove the fuse panel cover by pressing the tabs and pulling up.

  4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

  5. Pull the suspected fuse straight out. Use the removal tool provided in the motor compartment fuses panel cover.

  6. Check the removed fuse and replace it if it is blown. To remove or insert the fuse, use the fuse puller in the motor compartment fuse panel.

  7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it is not tight, have your vehicle inspected by an authorized HYUNDAI dealer.

Always securely install the fuse panel cover. Water may contact the fuse and cause an electrical failure.

Multi fuse

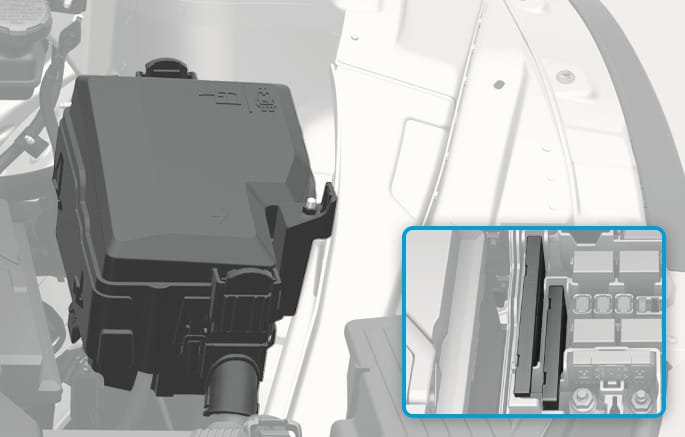

Multi type

2C_EngineRoomFuseReplacement_4

If the multi fuse is blown, contact an authorized HYUNDAI dealer.
