Instrument cluster control

Instrument cluster theme
You can change theme of the instrument cluster in the infotainment system. When Start/Stop button is in the ON position, select:

  • Setup > Cluster/Head-Up Display >Cluster > Cluster Theme Selection

Instrument panel illumination

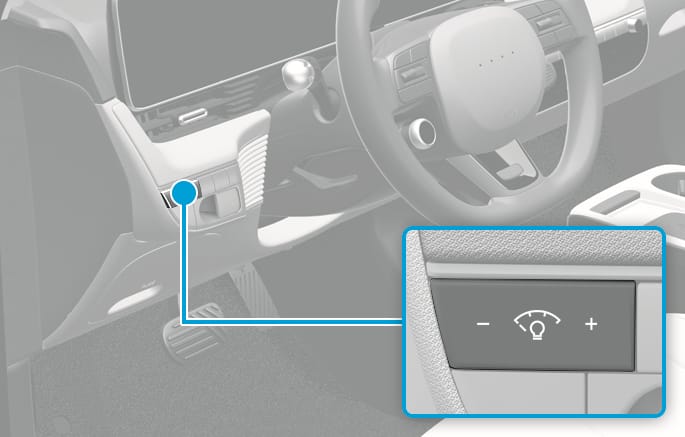

Control switch

2C_IlluminationControlSwitch

When the vehicle’s parking lights or headlights are on, press the illumination control switch to adjust the brightness of the instrument panel illumination.

When pressing the illumination control switch, the interior switch illumination intensity is also adjusted.

  • The brightness of the instrument panel illumination is displayed.

  • When the brightness setting reaches the maximum level, a chime sounds.

Never adjust the instrument panel illumination while driving to prevent death, serious injury, or vehicle damage.

Infotainment system

You can adjust the brightness of the instrument panel illumination in the infotainment system. Select:

  • Setup > Cluster/Head-Up Display > Cluster > Brightness

The infotainment system may change after software updates. For more information, refer to the user's manual provided in the infotainment system and the quick reference guide.

Never adjust the instrument cluster while driving. This could result in loss of control and lead to an accident that may cause death, serious injury, or vehicle damage.
