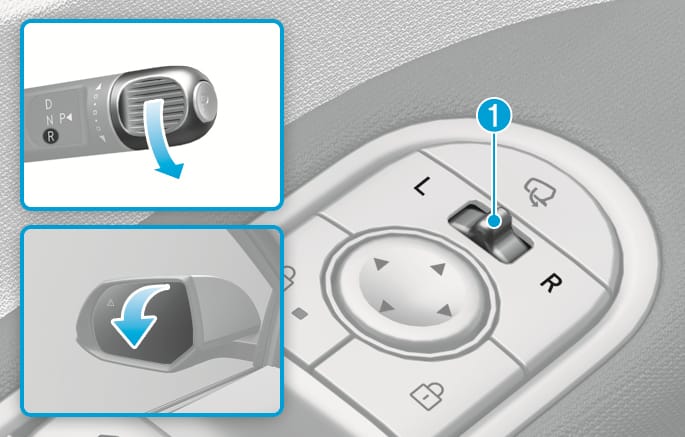

• Left/Right : When either the L (Left) or R (Right) lever is selected, both side view mirrors will move.

• Neutral : When neither switch is selected, the side view mirrors will not move.

The side view mirrors will automatically revert to their original positions if any of the following occur:

• The Start/Stop button is pressed to either the OFF position or the ACC position.

• The gear is shifted to any position except R (Reverse).

• The side view mirror adjustment button is not selected.

You may change the angle of the side view mirror if it is difficult to see the rear view with the basic downward mirror angle provided when reversing.

When the vehicle is first delivered, the set downward angle of the left and right side view mirror are different to ensure driver visibility.

1. Make sure the vehicle is stopped.

2. Depress the brake pedal and shift the gear to R (Reverse). When L (Left) or R (Right) button is selected, both side view mirror angle will move downward to the basic set position.

3. Move either L or R lever to select the side view mirror you would like to adjust. Then press “ƀ, Ɓ, Ƃ, ƃ” switch to adjust the side view mirror to the desired angle.

4. After adjusting the angle to save the adjusted side view mirror angle, shift the gear to another position other than R (Reverse), or change the L and R lever to the neutral position (L and R levers are not selected).

5. Set the other side view mirror following the above procedure 1 to 4.
