Front Seats

To prevent serious injury or death:

NEVER attempt to adjust the seat while the vehicle is moving. The seat could respond with unexpected movement and may cause loss of vehicle control resulting in an accident.
Do not place anything under the front seats. Loose objects in the driver’s foot area could interfere with the operation of the foot pedals, causing an accident.
Do not allow anything to interfere with the normal position and proper locking of the seatback.
Do not place a cigarette lighter on the floor or seat. When you operate the seat, gas may exit out of the lighter causing a fire.
Use extreme caution when picking up small objects trapped under the seats or between the seat and the center console. Your hands might be cut or injured by the sharp edges of the seat mechanism.
If there are occupants in the rear seats, be careful while adjusting the front seat position.
Make sure that the seat is locked in place after the adjustment. If not, the seat might move unexpectedly resulting in an accident.

To prevent injury:

Do not adjust your seat while wearing your seat belt. Moving the seat cushion forward may cause strong pressure on your abdomen.
Do not allow your hands or fingers to get caught in the seat mechanisms while the seat is moving.

NEVER allow children in the vehicle unattended. The power seats are operable when the vehicle is turned off.

To prevent damage to the seats:

Always stop adjusting the seats when the seat has been adjusted as far forward or rearward as possible.
Do not adjust the seats longer than necessary when the vehicle is turned off. This may result in unnecessary battery drain.
Do not operate two or more seats at the same time. This may result in an electrical malfunction.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and/or airbags) is greatly reduced by reclining your seatback.

Seat belts must be snug against your hips and chest to work properly.

The more the seatback is reclined, the greater the chance for the passenger's hips to slide under the lap belt or the passenger's neck to strike the shoulder belt.

Never ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should always sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During a collision, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger's hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Manual adjustment

The front seat can be adjusted by using the levers located underneath the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

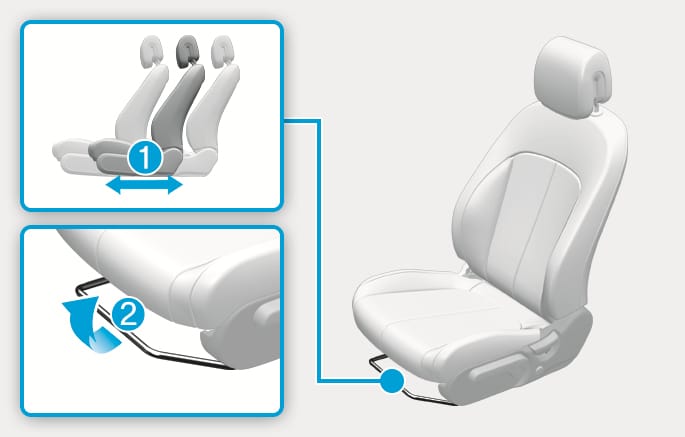

Forward and rearward adjustment

To move the seat forward or rearward:

Pull up the seat slide adjustment lever (2) and hold it.
Slide the seat to the position you desire (1).
Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.

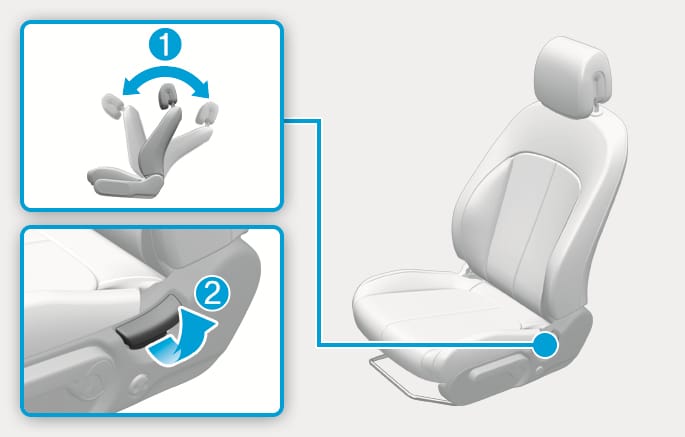

Seatback angle

To recline the seatback:

Lean forward slightly and lift up the seatback lever (2).
Carefully lean back on the seat and adjust the seatback to the position you desire (1).
Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

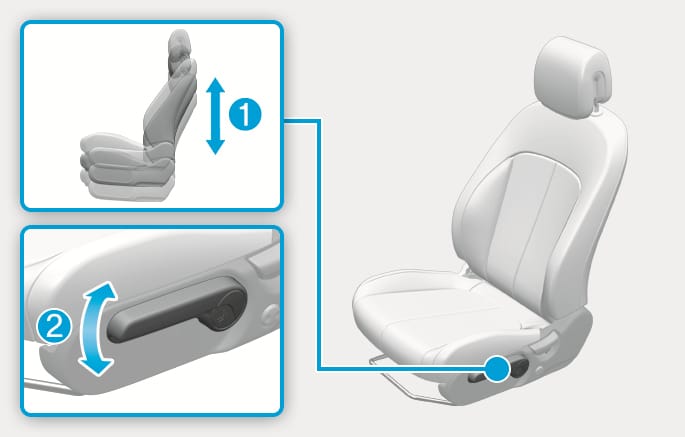

Seat height

To change the height of the seat cushion:

Push down the lever (2) several times, to lower the seat cushion (1).
Pull up the lever (2) several times, to raise the seat cushion (1).

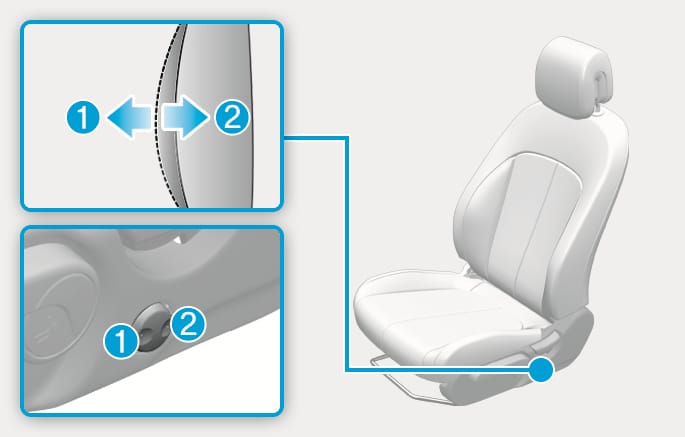

Lumbar support

To adjust the lumbar support:

Press the front portion of the switch (1) to increase the support or the rear portion of the switch (2) to decrease the support.

Do not continue to operate the lumbar support when the lumbar support provides its maximum support. Damage to the lumbar support motor could occur.

Power adjustment

The front seat can be adjusted by using the control switches located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

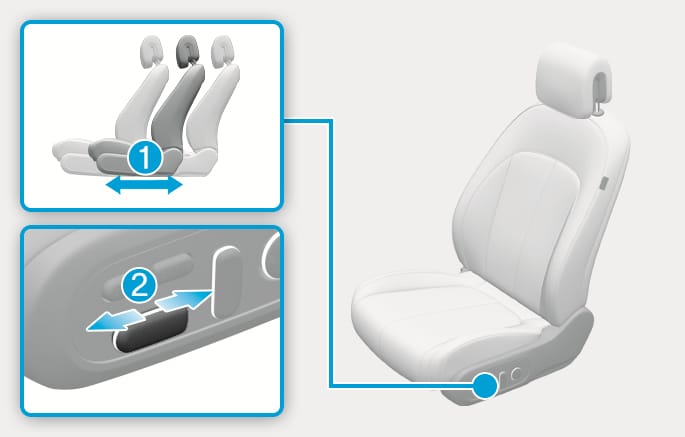

Forward and rearward adjustment

To move the seat forward or rearward:

Push the control switch (2) forward or rearward.
Release the switch once the seat reaches the desired position (1).

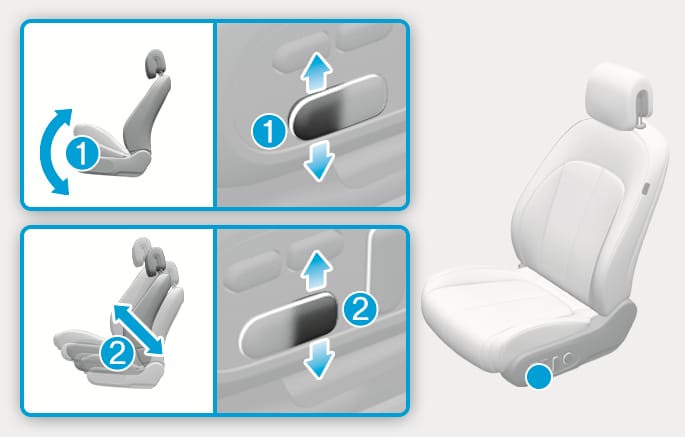

Seat cushion tilt/height adjustment

Seat cushion tilt (1)

To change the angle of the front part of the seat cushion:

Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion.

Release the switch once the seat reaches the desired position.

Seat height (2)

To change the height of the seat cushion:

Push the rear portion of the control switch up to raise or down to lower the height of the seat cushion.

Release the switch once the seat reaches the desired position.

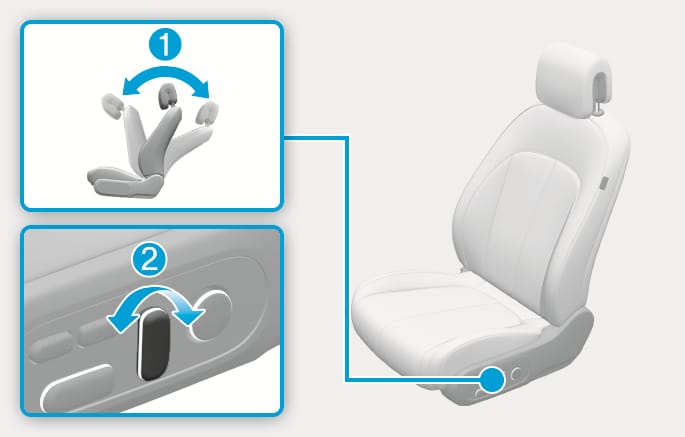

Seatback angle adjustment

To recline the seatback:

Push the control switch (2) forward or rearward.
Release the switch once the seatback reaches the desired position (1).

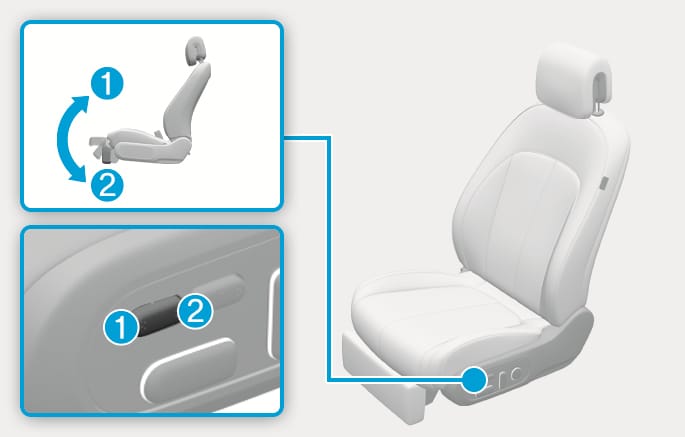

Leg support adjustment

Press the front portion of the switch (1) to raise the leg support.
Press the rear portion of the switch (2) to lower the leg support.

Lumbar support

To adjust the lumbar support:

Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

Do not continue to operate the lumbar support when the lumbar support provides its maximum support. Damage to the lumbar support motor could occur.

Relaxation comfort seat (for Driver’s seat)

Relaxation comfort seats help distribute body pressure and concentrated weight on specific body parts that occur while sitting in the same position for a long period of time. The seat helps relieve fatigue and discomfort by providing the optimal sit position.

Take the following precautions when using the relaxation comfort seat:

Do not use the relaxation comfort seat while the vehicle is moving. Using the comfort seat could increase the risk of injuries in the event of a collision or sudden stop.
Do not use the relaxation comfort seat when the luggage or other objects are placed at the rear seat.
Do not use the relaxation comfort seat while the vehicle is moving. Seat belts may not operate normally due to the lack of adherence between the shoulder belts and the body.
Do not use the relaxation comfort seat when the rear seats are not in the rearmost position and upright.

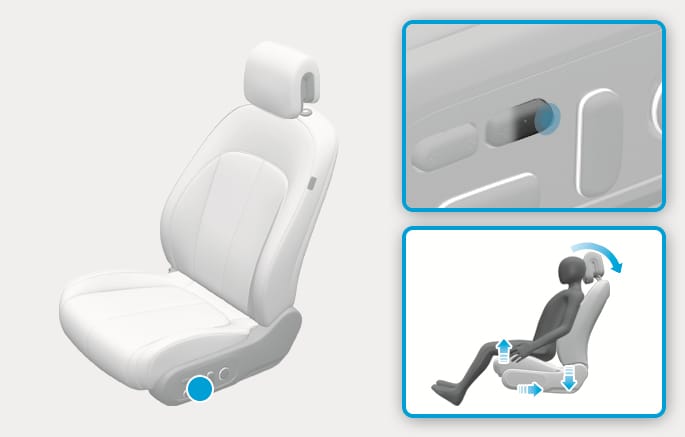

To activate relaxation comfort seat

With the vehicle stop completely, shift the gear to P (Park).
Press the rear portion of the switch more than 0.5 seconds with the Start/Stop button is in the ACC or ON position, an alarm appears on the infotainment screen. Then press the rear position of the switch again for more than 0.5 seconds.

If the switch is not pressed within 5 seconds after the alarm appears, relaxation comfort seat will not be activated.
- The seat cushion will be moved forward or rearward automatically.
- The seat cushion, seatback angle and leg support will be adjusted.

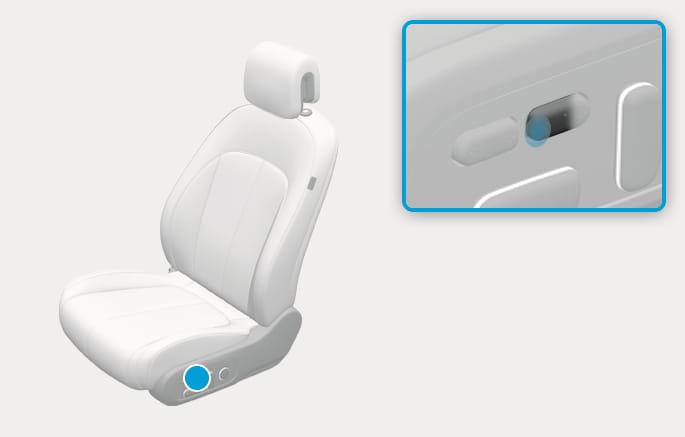

To deactivate relaxation comfort seat

Press the front portion of the switch more than 0.5 seconds with the Start/Stop button is in the ACC or ON position.

The driver seat will return to the position which the gear was in P (Park).

In the following cases, the relaxation comfort seat will not return to the original position for the driver’ seat.

When the driver's seat Integrated Memory System is reset. (if equipped)
When the gear is not in P (Parking).
When the vehicle is moving more than 1.8 mph (3 km/h).

When relaxation comfort seat cannot be operated, try to reset Integrated Memory System. If relaxation comfort seat does not operate even after Integrated Memory System is reset, contact an authorized HYUNDAI dealer.

Do not use the seat switches simultaneously. It may damage the seat system.

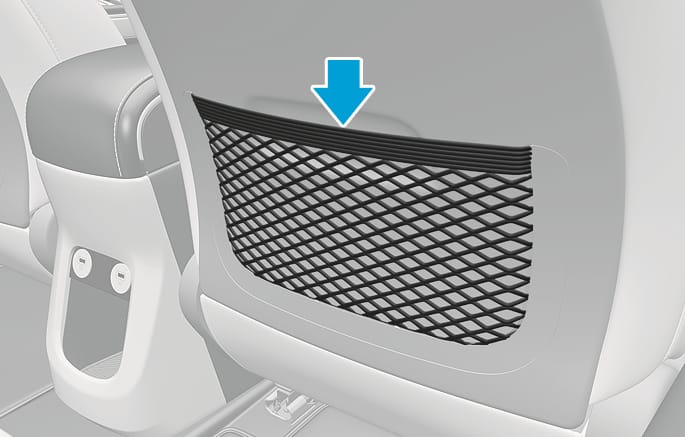

Seatback pocket

The seatback pocket is provided on the back of the front seatbacks.

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure occupants.
