Rear Seats

Seat adjustment

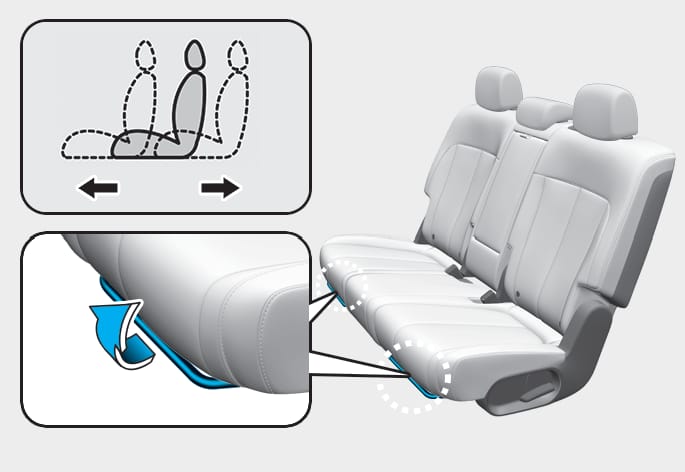

Forward and rearward

ONE1031073N

To move the seat forward or rearward:

  1. Pull the seat slide adjustment lever up and hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place.

For the optimal safety, slide the rear seat to the rearmost position.

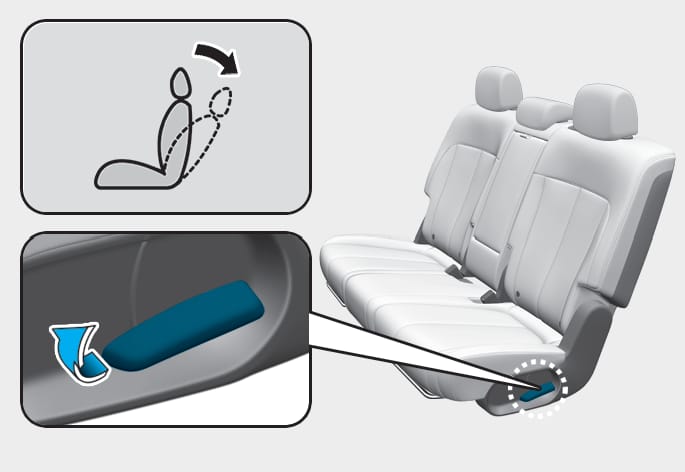

Seatback angle

ONE1031024N

To recline the seatback:

  1. Pull up the seatback recline lever.

  2. Hold the lever and adjust the seatback of the seat to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. The lever MUST return to its original position for the seatback to lock.

* The seatbacks can be folded with the seatback recline lever.

Folding the rear seats

The rear seatbacks can be folded to facilitate carrying long items or to increase the luggage capacity of the vehicle.

  • Never allow passengers to sit on top of the folded down seatback while the vehicle is moving. This is not a proper seating position and no seat belts are available for use. This could result in serious injury or death in a collision or sudden stop.

  • Objects carried on the folded down seatback should not extend higher than the top of the front seatbacks. This can allow cargo to slide forward and cause property damage or serious injury or even death during a collision or sudden stop.

To fold down the rear seatback:

  1. Set the front seatback to the upright position and if necessary, slide the front seat forward.

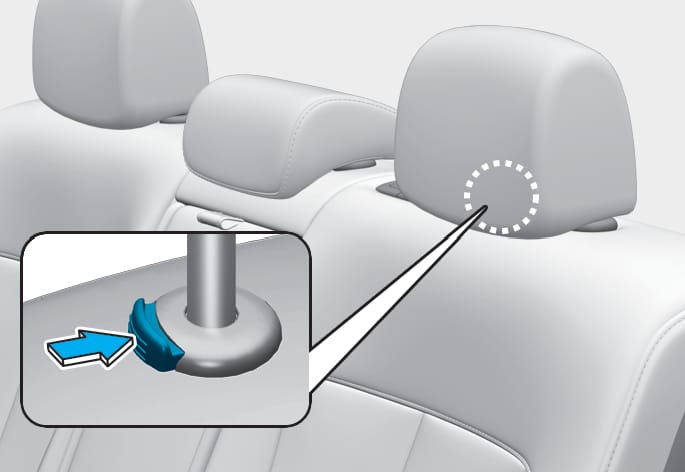

  2. Lower the rear head restraints to the lowest position.

    ONE1031025N

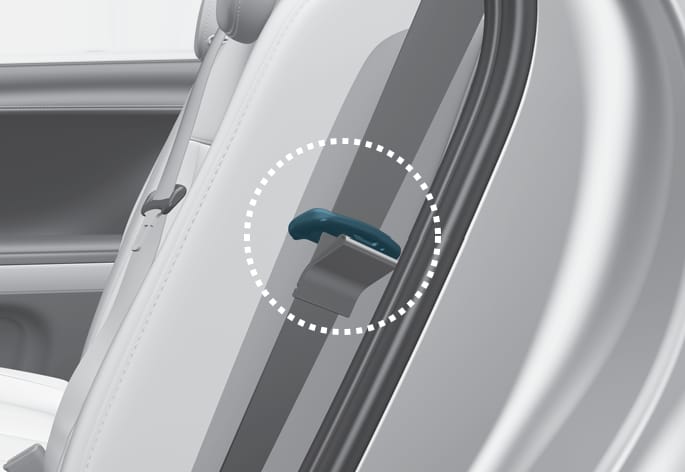

  3. Route the seat belt webbing to the outward of the rear seat to prevent the belts from being trapped behind or under the seats.

    ONE1031026

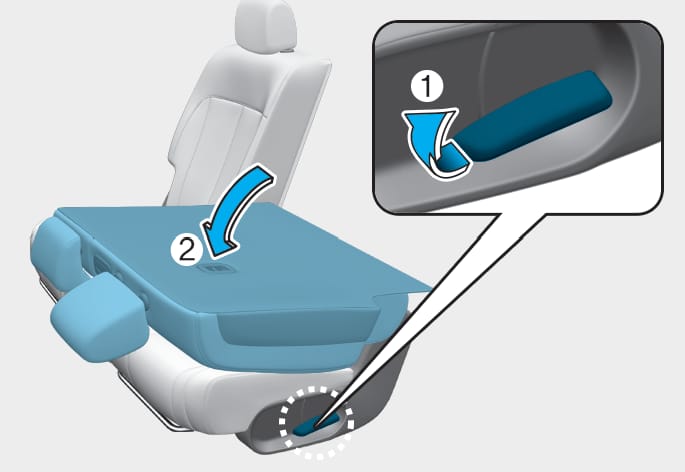

  4. Pull up the seatback folding lever (1), then fold the seat (2) toward the front of the vehicle. When you return the seatback to its upright position, always be sure it has locked into position by pushing on the top of the seatback.

    ONE1031027N

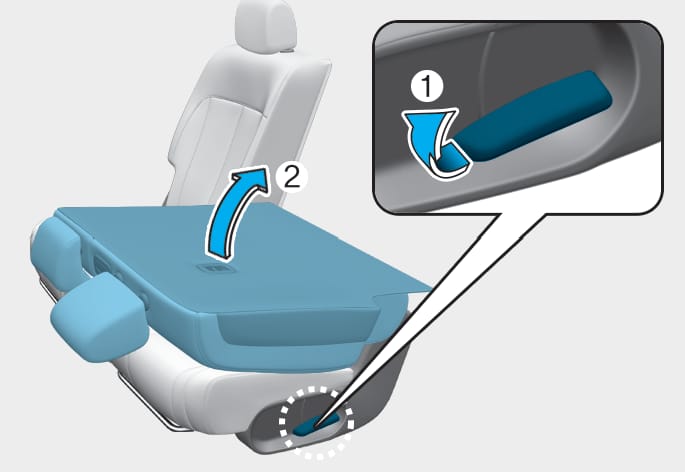

To unfold the rear seatback:

  1. To use the rear seat, lift and unfold the seatback (2) to the upright position by pulling up the folding lever (1). Push the seatback firmly until it clicks into place. Make sure the seatback is locked in place.

    ONE1031028N

  2. Return the rear seat belt to the proper position.

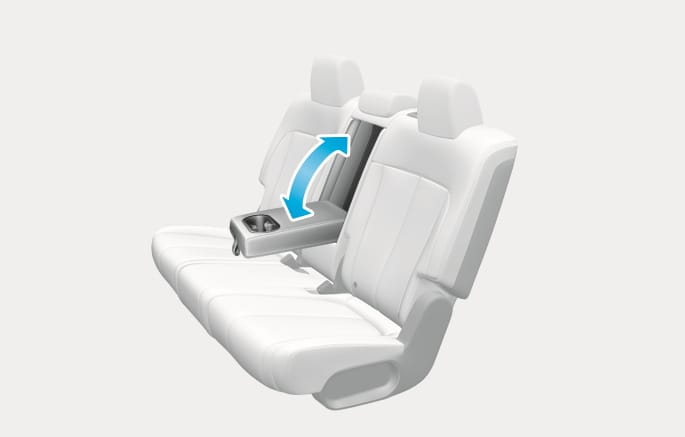

Armrest

2C_RearArmrestFlip

The armrest is located in the center of the rear seat. Pull the armrest down from the seatback to use it.

The armrest handle may be pressed when folding the rear seatback, but it will be restored after a certain period of time.
