Using Electricity Inside the Vehicle

You can connect home appliances or electric devices to the power outlet inside the vehicle and use them conveniently.

1. Press the Start/Stop button to the ON position or activate the Utility Mode.

   • For more information about the Utility Mode, refer to the "Setting Utility Mode" in this chapter.

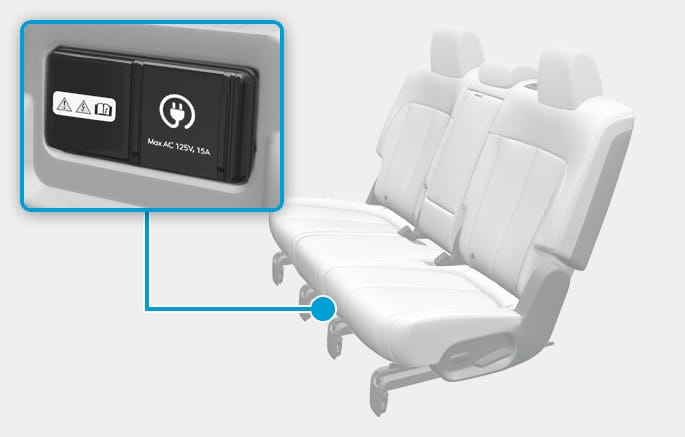

   2C_V2LPosition

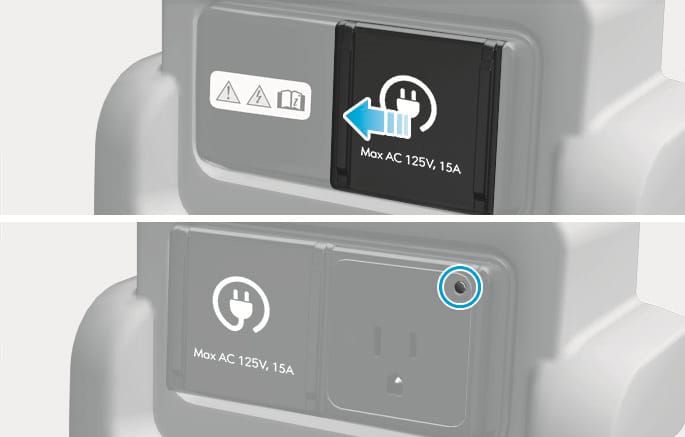

2. Open the power outlet cover by sliding it to the left, and connect the power plug of the electric device to the power socket.



   2C_V2LInsideIndicator

   • Time remaining until the battery level reaches the set value, and the distance to empty at the set value appears on the instrument cluster or the infotainment system.

   • The indicator on the power outlet indicates power supply status.

     Indicator status	Description
     Blue	Standby
     Red	No power supply even the power outlet is connected.
     Green	Normal power supply through the normal connection of the power outlet.

   • If the charging door is opened or the V2L connector is connected to the charging inlet while using electricity inside the vehicle, the internal power supply will automatically shut off.

   • Opening the charging door or connecting the V2L connector to the charging inlet, the V2L discharging mode shuts off.

   • If you want to use the indoor and outdoor V2L simultaneously, firstly connect the V2L connector to the outdoor V2L connector to the charging inlet, then connect the indoor V2L.

   • When the high voltage battery charge level reaches the set discharging limit (%), the operation stops, and a warning message appears on the instrument cluster. If you want additional V2L operation, set the discharging limit (%) lower than the current battery charge.

     • For more information about the discharging limit, refer to the "Setting a Battery Discharging Limit When Using Vehicle to Load (V2L)" section in this chapter.

     • For more information about warnings, refer to the "Checking the warning and indicator lights" section in this chapter.
