The cabin air filter should be replaced according to the maintenance schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced sooner. Replace the cabin air filter by following the procedure below and be careful to avoid damaging other components.

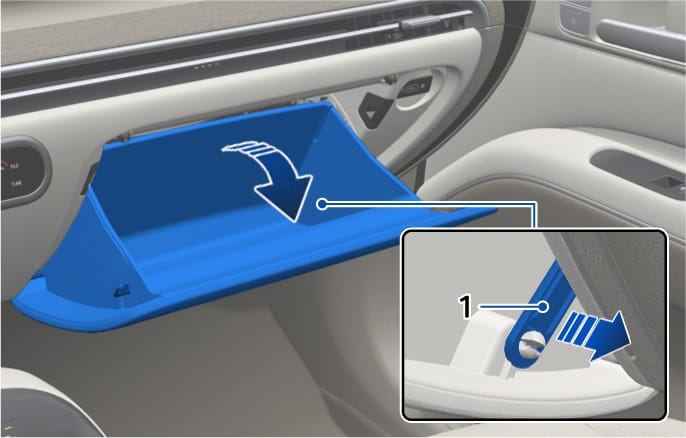

1. Open the glove box and remove the support rod.



   2C_AirFilterReplacementProcedure

   1. Support rod

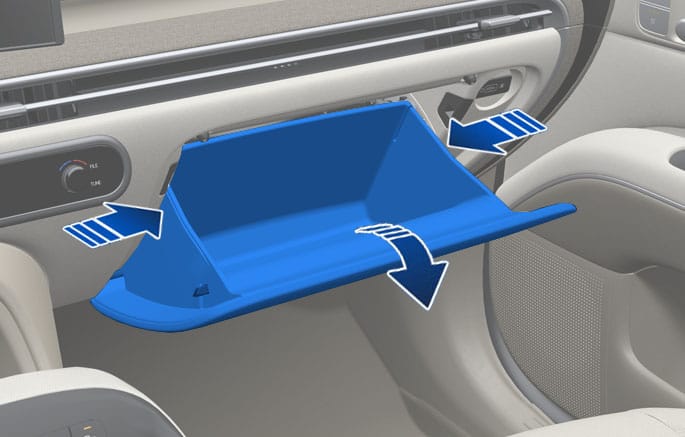

2. Press both sides of the glove box inward to release.



   2C_AirFilterReplacementProcedure_2

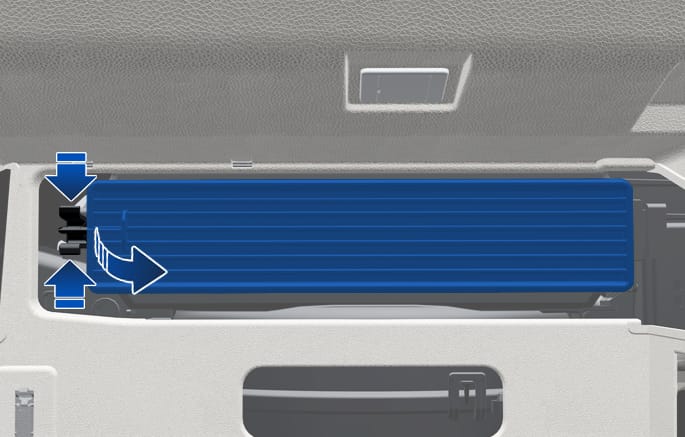

3. Press and hold the lock on the left side of the cover.



   2C_AirFilterReplacementProcedure_3

4. Pull out the cover and replace the cabin air filter.



   2C_AirFilterReplacementCaution

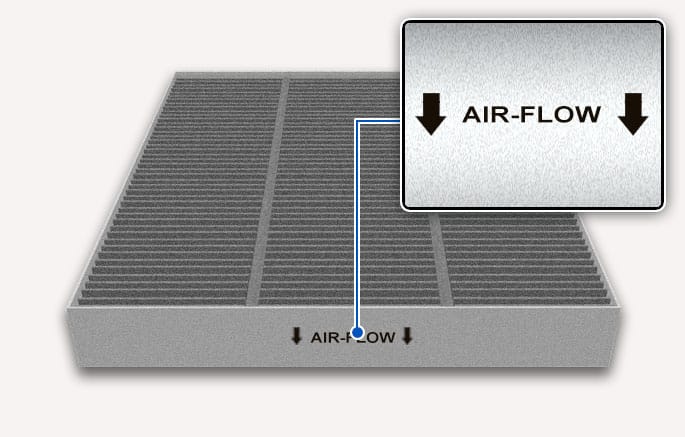

   Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and reduce effectiveness.

5. Reassemble in the reverse order of disassembly.
