Filter replacement

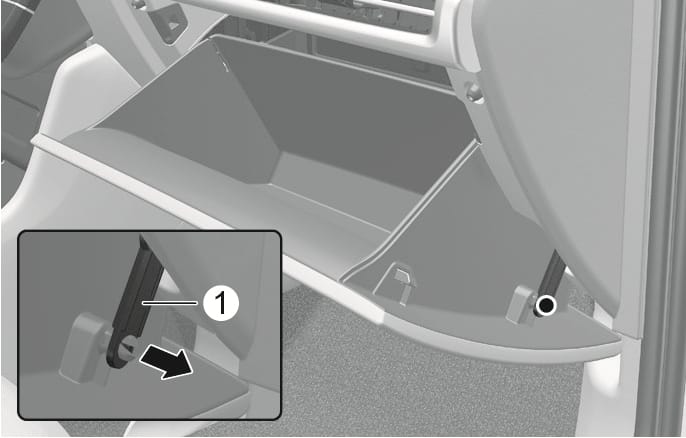

2025 Hyundai Tucson glove box support rod removal image. The image shows the open glove box with a detailed inset highlighting the support rod (1) on the right side. A black arrow points outwards, indicating the direction to detach the rod. Explains the step of removing the support rod to access the cabin air filter.

2C_AirFilterReplacementProcedure

  1. Open the glove box and remove the support rod (1).

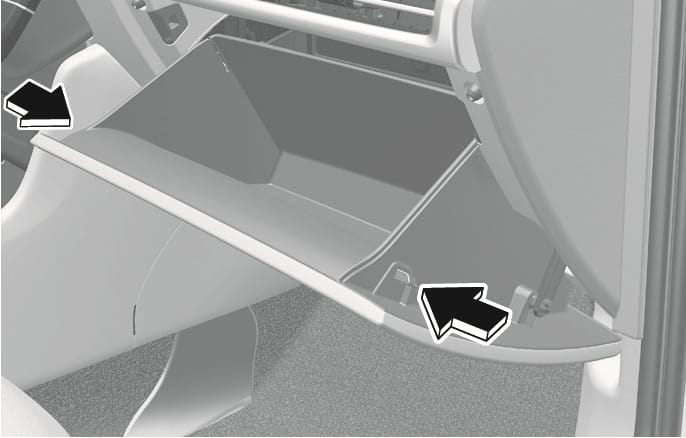

    2025 Hyundai Tucson glove box disassembly image. Black arrows on the left and right sides of the open glove box point inward, indicating the direction to press the side walls. This describes the action of releasing the stoppers to lower the glove box for cabin air filter replacement.

    2C_AirFilterReplacementProcedure_2

  2. Remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

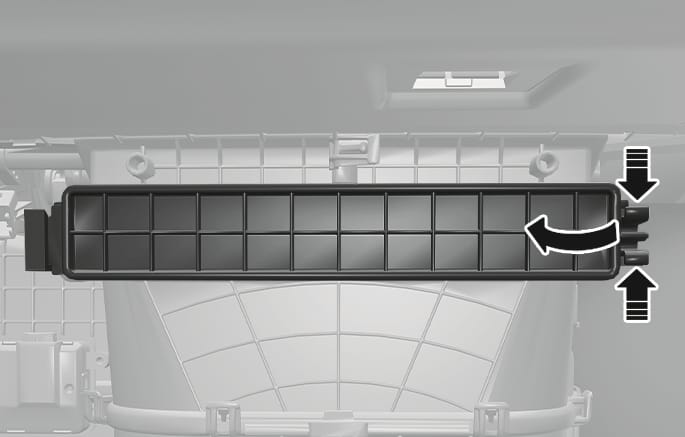

    2025 Hyundai Tucson cabin air filter cover image. The rectangular filter cover is shown with a grid pattern. Two black vertical arrows on the right indicate pinching the lock clips, and a curved arrow indicates pulling the cover outward. Explains the process of unlocking and removing the cabin air filter cover.

    2C_AirFilterReplacementProcedure_3

  3. Press and hold the lock on the right side of the cover.

  4. Pull out the cover.

  5. Replace the cabin air filter.

  6. Reassemble in the reverse order of disassembly.

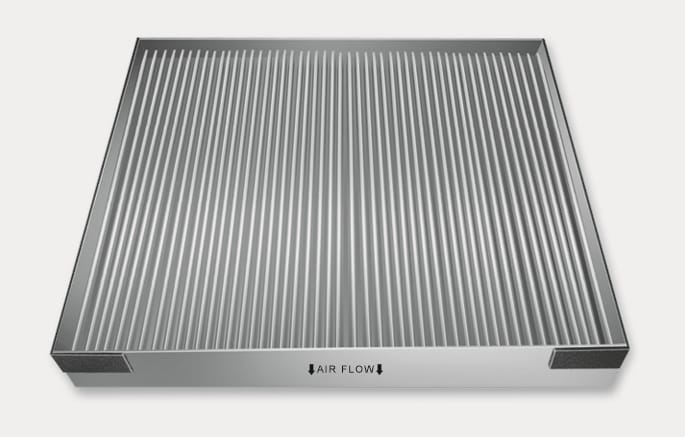

2025 Hyundai Tucson cabin air filter replacement caution image. A rectangular air filter with vertical pleats is shown. On the side panel, the text 'AIR FLOW' is printed with downward-pointing black arrows indicating the direction. Explains the correct installation orientation where the arrows must face downwards to prevent noise and increase effectiveness.

2C_AirFilterReplacementCaution

Install a new cabin air filter in the correct direction with the arrow symbol (↓) facing downwards, to prevent noise and increase effectiveness.
