Surround View Monitor (SVM)

Surround View Monitor uses the wide view cameras and displays images around your vehicle through the infotainment system screen to help with safe parking or driving.

Detecting sensor

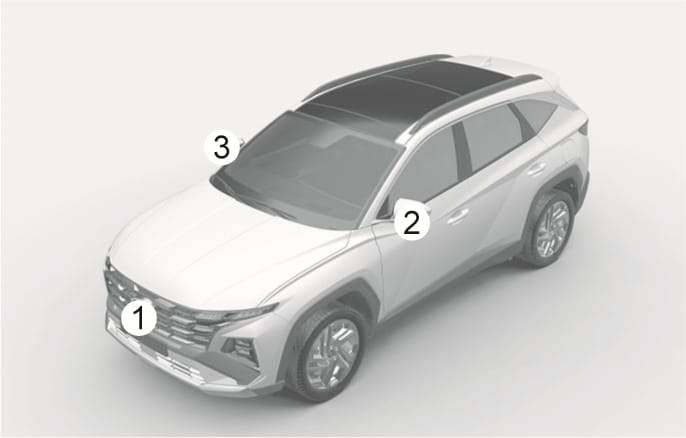

2025 Hyundai Tucson Surround View Monitor detecting sensors image. It highlights the wide-front view camera (1) on the grille and wide-side view cameras (2, 3) below the outside rearview mirrors. Explains the sensor locations for safe parking and driving assistance.

2C_WideFrontSideViewCamera

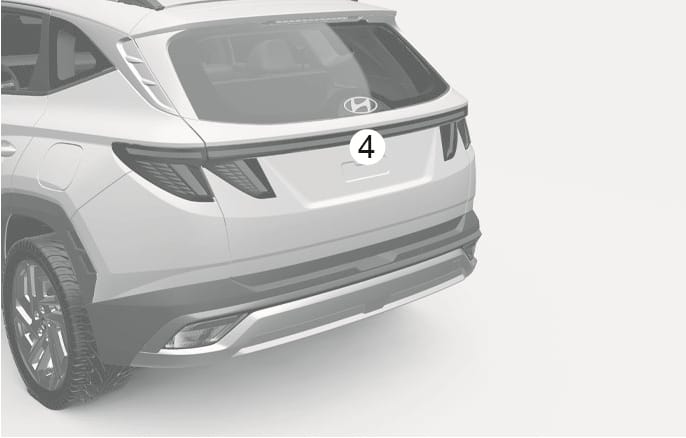

2025 Hyundai Tucson Wide-rear view camera image. A callout number (4) points to the camera lens located above the license plate on the vehicle's rear. Explains the location of the detecting sensor for the Surround View Monitor.

2C_WideRearCamera

  1. Wide-front view camera
  2. Wide-side view camera (Below the outside rearview mirror)
  3. Wide-side view camera (Below the outside rearview mirror)
  4. Wide-rear view camera

Refer to the picture above for the detailed location of the detecting sensors.
