Engine compartment panel fuse replacement

Blade fuse / Cartridge fuse
Blade type fuse

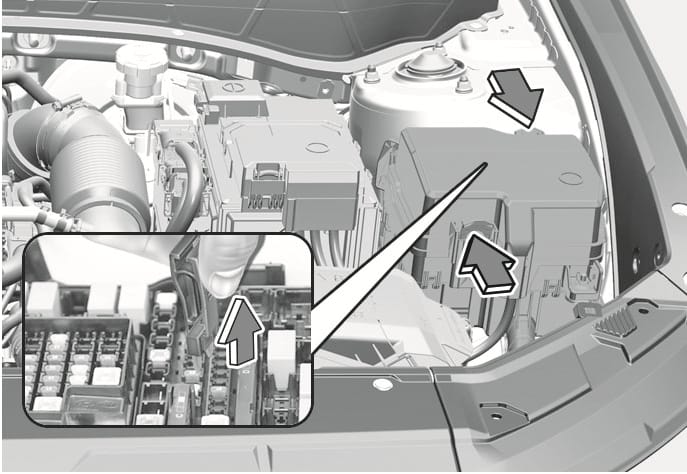

2025 Hyundai Tucson engine compartment fuse replacement image. The image displays the fuse box in the engine bay with an arrow pointing to the cover latch. An inset close-up shows a hand using a fuse puller tool to pull a fuse upward, indicated by a vertical arrow. This illustrates the procedure for opening the fuse panel and removing a fuse.

2C_EngineRoomFuseReplacement

Cartridge type fuse

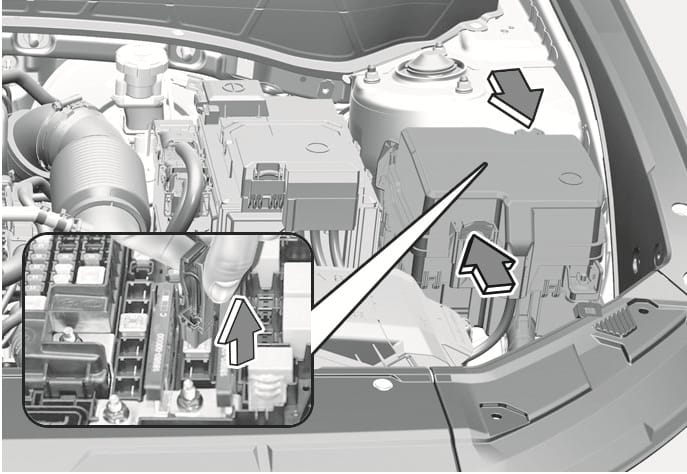

2025 Hyundai Tucson engine compartment fuse replacement image. The view highlights the fuse box with arrows indicating the cover removal. An inset shows a hand using a fuse puller to remove a cartridge fuse, with a vertical arrow indicating the upward pulling direction. Explains how to replace a cartridge type fuse.

2C_EngineRoomFuseReplacement_3

  1. Turn the vehicle off.

  2. Turn all other switches off.

  3. Remove the fuse panel cover by pressing the tap and pulling up.

  4. Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.

  5. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we recommend that you consult an authorized HYUNDAI dealer.

After checking the fuse panel in the engine compartment, securely install the fuse panel cover. You may hear a clicking sound if the cover is securely latched. If it is not securely latched, electrical failure may occur from water contact.

Multi fuse
Multi type

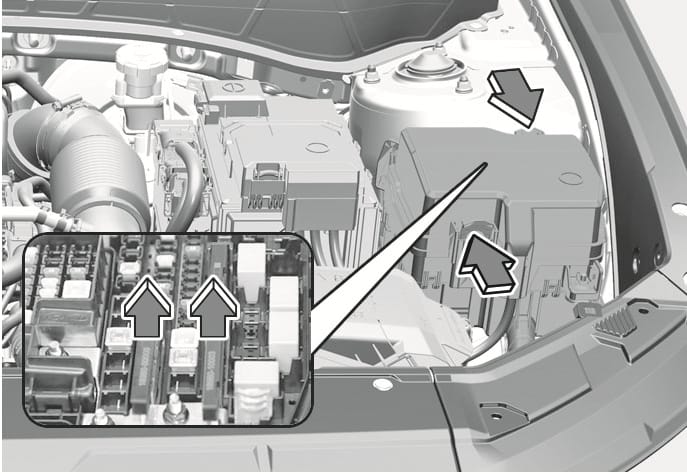

2025 Hyundai Tucson Multi type fuse image. The image displays the engine compartment with an arrow pointing to the fuse panel cover. A zoomed-in inset shows the multi-fuse assembly with upward arrows indicating the specific fuse components. Illustrates the location and structure of the multi-type main fuse.

2C_MultiTypeMainFuse

If the multi fuse or midi fuse is blown, we recommend that you consult an authorized HYUNDAI dealer.
