Forward/Reverse Parking Distance Warning (PDW)

Forward/Reverse Parking Distance Warning uses the front and rear ultrasonic sensors to detect and warns you if a person, animal, or object is within a certain distance when your vehicle is stopped or driving at low speed.

Detecting sensor

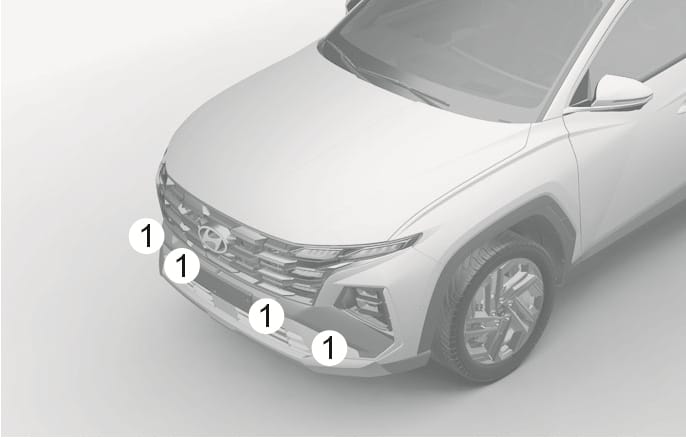

2025 Hyundai Tucson front ultrasonic sensors image. Callout numbers (1) indicate the locations of the sensors distributed on the front bumper. Explains the function of detecting obstacles for the Forward/Reverse Parking Distance Warning system.

2C_FrontUltrasonicSensor

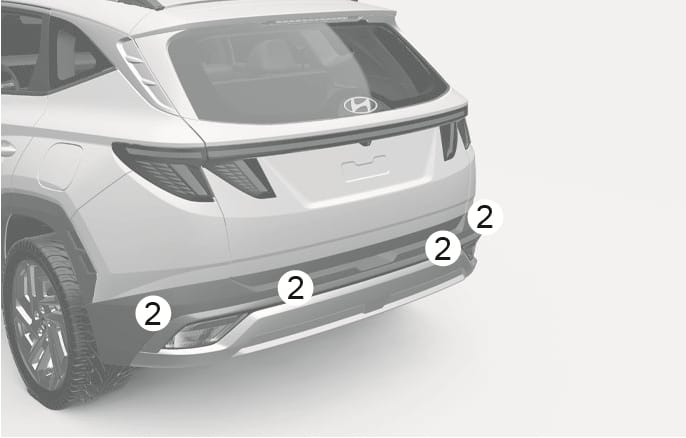

2025 Hyundai Tucson Rear Ultrasonic Sensors image. The image shows the rear view of the vehicle with four circular markers labeled (2) distributed along the rear bumper. It explains the location of the rear ultrasonic sensors used to detect obstacles.

2C_RearUltrasonicSensor

  1. Front ultrasonic sensors
  2. Rear ultrasonic sensors

Refer to the picture above for the detailed location of the detecting sensors.
