Front seats

The front seat can be adjusted by using the control switches located on the outside of the seat cushion. Before driving, adjust the seat to the proper position so that you can easily control the steering wheel, foot pedals and controls on the instrument panel.

Take the following precautions when adjusting your seat:

  • NEVER attempt to adjust the seat while the vehicle is moving. The seat could respond with unexpected movement and may cause loss of vehicle control resulting in an accident.

  • Do not place anything under the front seats. Loose objects in the driver's foot area could interfere with the operation of the foot pedals, causing an accident.

  • Do not allow anything to interfere with the normal position and proper locking of the seatback.

  • Do not place a cigarette lighter on the floor or seat. When you operate the seat, gas may exit out of the lighter causing a fire.

  • Use extreme caution when picking up small objects trapped under the seats or between the seat and the center console. Your hands might be cut or injured by the sharp edges of the seat mechanism.

  • If there are occupants in the rear seats, be careful while adjusting the front seat position.

  • Make sure that the seat is locked in place after the adjustment. If not, the seat might move unexpectedly resulting in an accident.

To prevent injury:

  • Do not adjust your seat while wearing your seat belt. Moving the seat cushion forward may cause strong pressure on your abdomen.

  • Do not allow your hands or fingers to get caught in the seat mechanisms while the seat is moving.

Manual adjustment

Forward and rearward adjustment

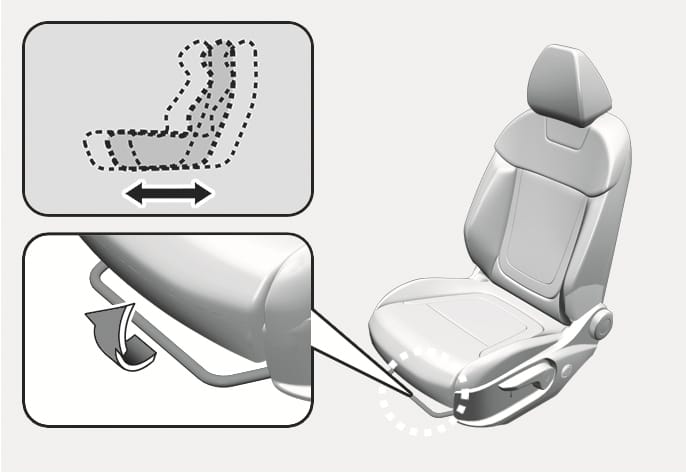

2025 Hyundai Tucson manual seat adjustment image. A close-up shows the lever under the front seat cushion with a curved arrow indicating an upward pull. A diagram with a horizontal double-headed arrow illustrates the seat sliding forward and backward. This explains the function of manually adjusting the seat position.

2C_AdjustSeatForwardBackwardmanual

To move the seat forward or rearward:

  1. Pull up the seat slide adjustment lever and hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place. Move forward and rearward without using the lever. If the seat moves, it is not locked properly.

Seatback angle adjustment

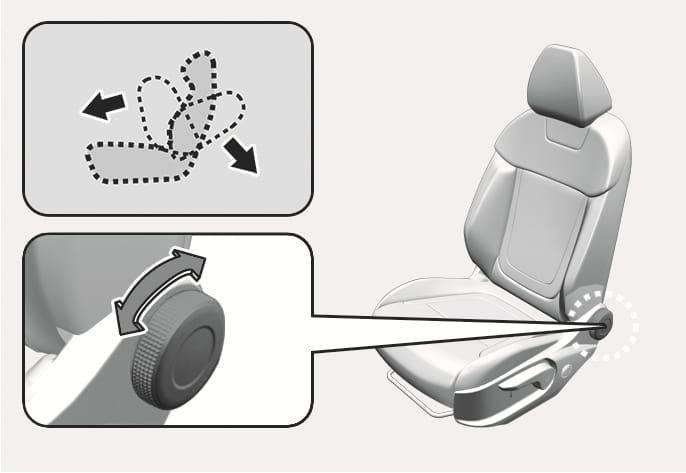

2025 Hyundai Tucson manual seatback adjustment image. A close-up view shows a rotary control knob on the side of the seat cushion with a curved arrow indicating rotation. A diagram illustrates the seatback reclining, explaining the function of adjusting the seatback angle.

2C_AdjustSeatBackmanual

To recline the seatback:

  1. Lean forward slightly and lift up the seatback lever.

  2. Carefully lean back on the seat and adjust the seatback to the position you desire.

  3. Release the lever and make sure the seatback is locked in place. (The lever MUST return to its original position for the seatback to lock.)

Seat height

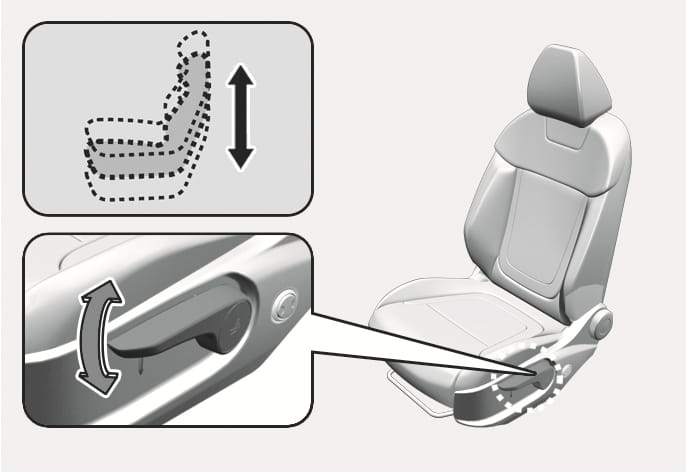

2025 Hyundai Tucson manual seat height adjustment image. A close-up view highlights the lever on the side of the seat cushion with a curved arrow indicating a pumping motion. An inset diagram shows the seat moving vertically with a straight arrow. Explains the function of raising or lowering the seat cushion height by pumping the lever.

2C_AdjustSeatHeightmanual

To change the height of the seat cushion:

  • Push down the lever several times, to lower the seat cushion.

  • Pull up the lever several times, to raise the seat cushion.

Lumbar support

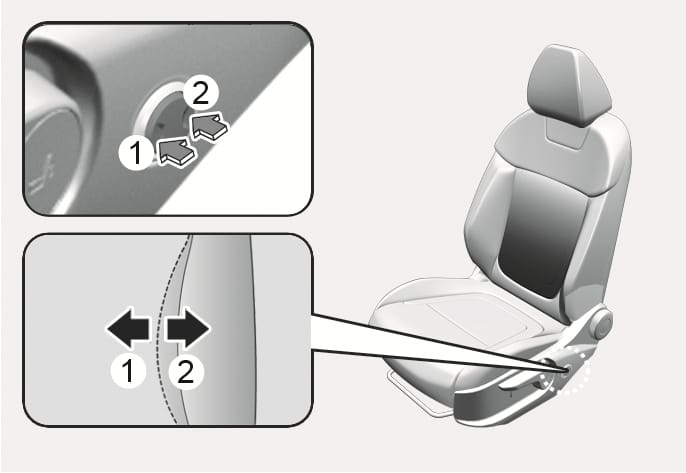

2025 Hyundai Tucson lumbar support adjustment image. The image indicates the switch location on the seat side. Detailed views show pressing the front (1) or rear (2) of the switch, with arrows illustrating the lumbar support moving forward and backward. Explains the function of adjusting the lumbar support.

2C_AdjustSeatBackCushionManual

To adjust the lumbar support:

  1. Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

  2. Release the switch once the lumbar support reaches the desired position.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger's hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Power adjustment

NEVER allow children in the vehicle unattended. The power seats are operable when the vehicle is turned off.

To prevent damage to the seats:

  • Always stop adjusting the seats when the seat has been adjusted as far forward or rearward as possible.

  • Do not adjust the seats longer than necessary when the vehicle is turned off. This may result in unnecessary battery drain.

  • Do not operate two or more seats at the same time. This may result in an electrical malfunction.

Forward and rearward adjustment

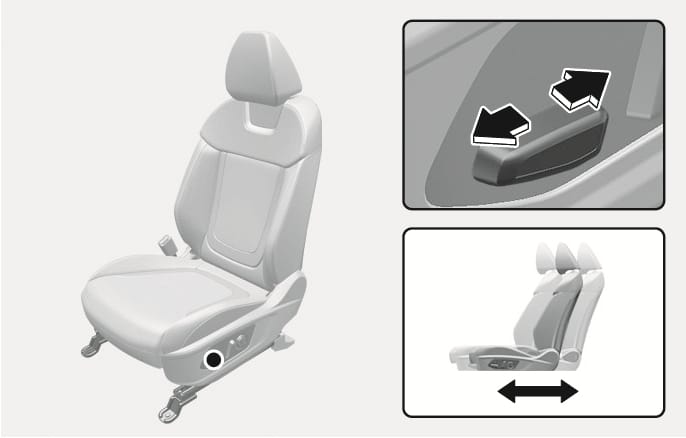

2025 Hyundai Tucson power seat adjustment image. It highlights the control switch on the side of the front seat. A close-up shows the horizontal switch with arrows indicating forward and backward directions. A diagram illustrates the seat sliding horizontally. Describes the function of moving the seat forward or rearward.

2C_AdjustSeatForwardBackwardAuto

To move the seat forward or rearward:

  1. Push the control switch forward or rearward.

  2. Release the switch once the seat reaches the desired position.

Seat cushion tilt/height adjustment

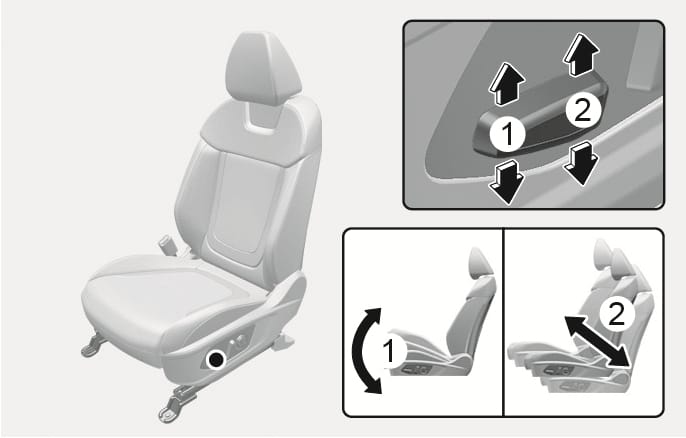

2025 Hyundai Tucson power seat cushion tilt and height adjustment image. The image displays the front seat with the side control switch highlighted. Detailed insets show the horizontal switch with vertical arrows at the front (1) and rear (2). Corresponding diagrams illustrate the seat movements: (1) tilting the front of the cushion up and down, and (2) adjusting the overall seat height. This explains the function of adjusting the seat cushion tilt and height using the power switch.

2C_AdjustSeatHeightAuto

  • Seat cushion tilt (1)

    To change the angle of the front part of the seat cushion:

    Push the front portion of the control switch up to raise or down to lower the front part of the seat cushion.

    Release the switch once the seat reaches the desired position.

  • Seat cushion height (2)

    To change the height of the seat cushion:

    Push the rear portion of the control switch up to raise or down to lower the height of the seat cushion.

    Release the switch once the seat reaches the desired position.

Seatback angle adjustment

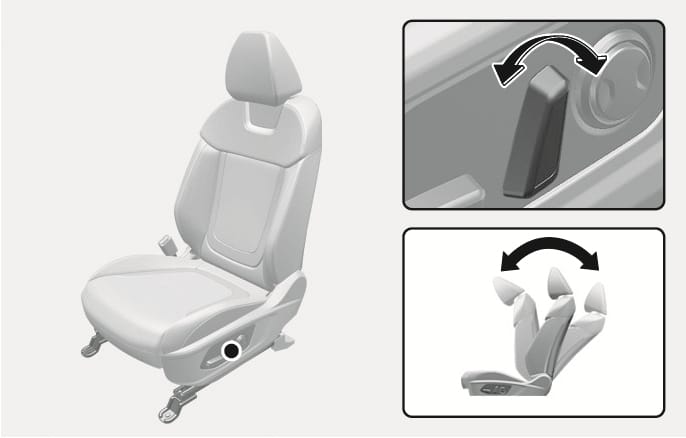

2025 Hyundai Tucson power seatback adjustment image. The image highlights the vertical switch on the seat cushion side. A black curved arrow indicates the switch operation, and a diagram shows the seatback reclining. This explains the function of adjusting the seatback angle.

2C_AdjustSeatBackAuto

To recline the seatback:

  1. Push the control switch forward or rearward.

  2. Release the switch once the seatback reaches the desired position.

Reclining seatback

Sitting in a reclined position when the vehicle is in motion can be dangerous. Even when buckled up, the protections of your restraint system (seat belts and air bags) is greatly reduced by reclining your seatback.

NEVER ride with a reclined seatback when the vehicle is moving.

Riding with a reclined seatback increases your chance of serious or fatal injuries in the event of a collision or sudden stop.

Driver and passengers should ALWAYS sit well back in their seats, properly belted, and with the seatbacks upright.

Seat belts must be snug against your hips and chest to work properly. When the seatback is reclined, the shoulder belt cannot do its job because it will not be snug against your chest. Instead, it will be in front of you. During an accident, you could be thrown into the seat belt, causing neck or other injuries.

The more the seatback is reclined, the greater chance the passenger's hips will slide under the lap belt or the passenger's neck will strike the shoulder belt.

Lumbar support

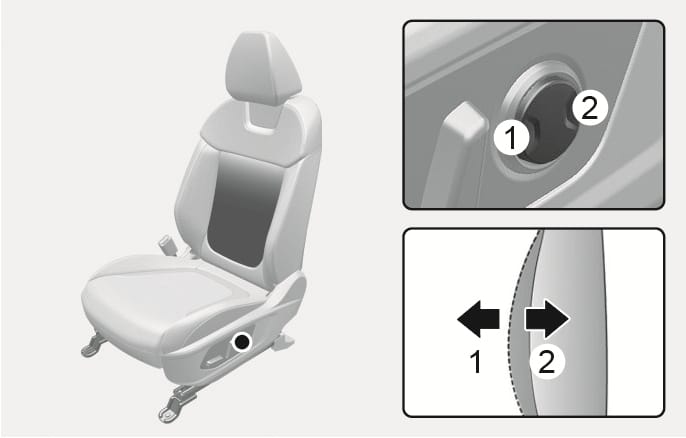

2025 Hyundai Tucson lumbar support adjustment image. The image displays the front seat and a close-up of the circular control switch located on the side of the seat cushion, with the front portion marked (1) and the rear portion marked (2). A schematic diagram illustrates the seatback profile with arrows indicating the lumbar support extending forward (1) and retracting backward (2). Explains the function of increasing or decreasing lumbar support.

2C_AdjustSeatBackCushionAuto

To adjust the lumbar support:

  1. Press the front portion of the switch (1) to increase support or the rear portion of the switch (2) to decrease support.

  2. Release the switch once the lumbar support reaches the desired position.

Walk-in switch

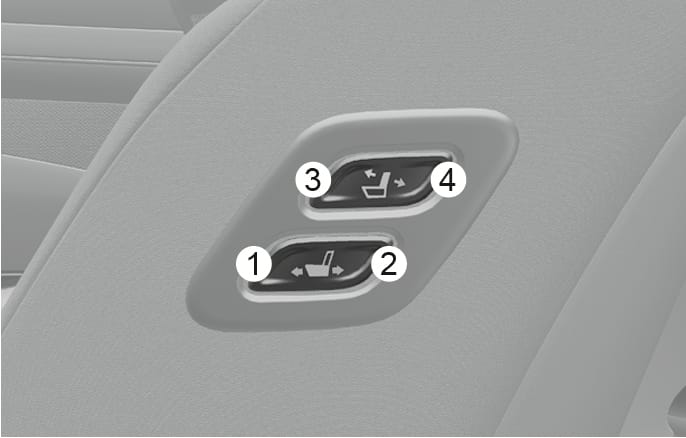

2025 Hyundai Tucson Passenger Seat Walk-in Device image. A close-up view shows two control switches on the side of the front passenger seat. The lower switch (1, 2) features a seat sliding icon with horizontal arrows, and the upper switch (3, 4) features a seatback reclining icon with arrows. Describes the function of adjusting the front passenger seat's forward and backward position and seatback angle.

2C_WorkinSwitch

The rear seat passenger may use the switches to control the front passenger seat.

  • Sliding forward or rearward:

    Press the switch (1) or (2) to move the front passenger seat forward or rearward.

  • Seatback angle:

    Press the switch (3) or (4) to recline the front passenger seatback forward or rearward.

Seatback pocket

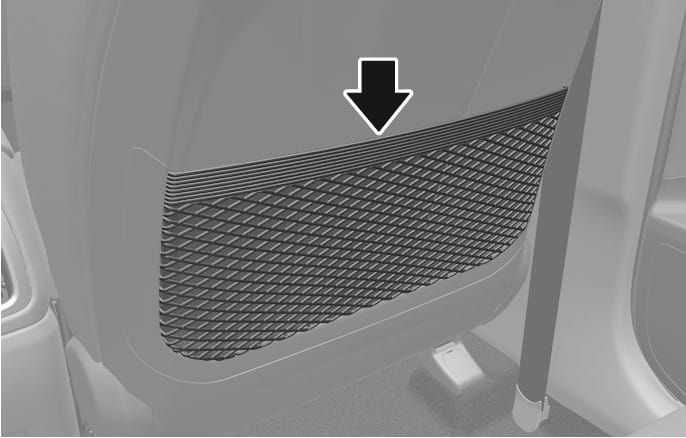

2025 Hyundai Tucson seatback pocket image. The image shows the back of a front seat equipped with a mesh storage pocket. A black arrow points downward towards the pocket opening. This illustrates the location of the seatback pocket for storing small items.

2C_SeatBackPocket

The seatback pocket is provided on the back of the front seatbacks.

Do not put heavy or sharp objects in the seatback pockets. In an accident they could come loose from the pocket and injure occupants.
