Interior light replacement

Map/Personal lamp (LED)

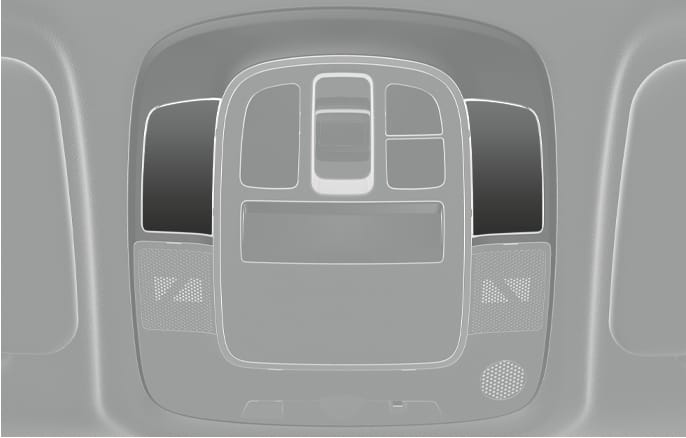

Map lamp (LED type)
2025 Hyundai Tucson Map lamp (LED type) image. The image displays the overhead console assembly on the ceiling, featuring map lamp lenses on the left and right sides of the central control panel. Explains the configuration of the integrated LED map lamp unit.

2C_MapLamp

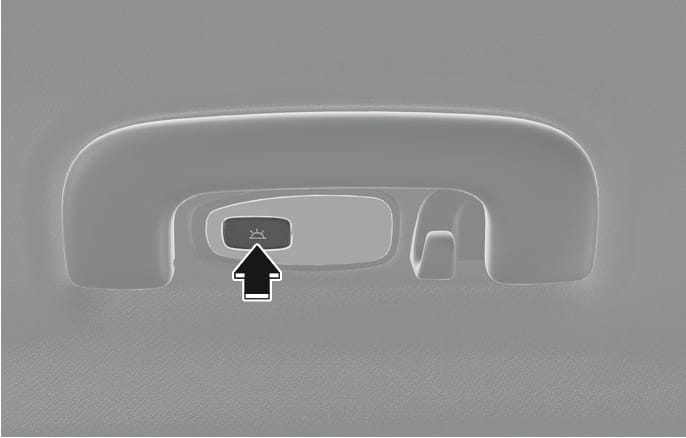

Room lamp (Personnal lamp)
2025 Hyundai Tucson Room lamp (Personal lamp) button image. A vertical black arrow points upward to the button featuring a lamp icon, located next to a hook. Describes the function of pressing the button to operate the personal lamp.

2C_PersonalLampButton

If the LED lamp does not operate, we recommend that the system be inspected by an authorized HYUNDAI dealer.

The LED lamps cannot be replaced as a single unit because it is an integrated unit. The LED lamps has to be replaced with the unit.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

Map lamp, Room lamp, Sunvisor lamp and Luggage compartment lamp (Bulb type)

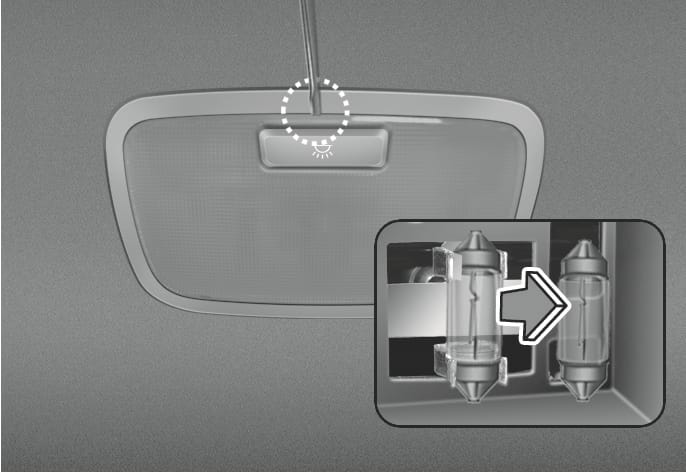

Room lamp
2025 Hyundai Tucson Room lamp replacement image. A flat-head screwdriver is shown prying the lens cover from the housing. An inset view shows the bulb with a white arrow pointing to the right, indicating the direction to remove it from the clips. Explains the process of replacing the room lamp bulb.

ODN8089036

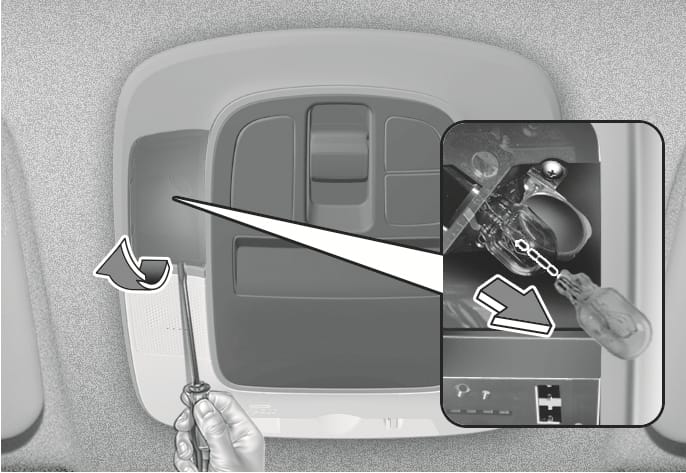

Map lamp
2025 Hyundai Tucson Map lamp replacement image. A flat-head screwdriver is used to pry open the map lamp lens, indicated by a curved arrow. An inset view shows the bulb being pulled straight out of the socket, marked by a directional arrow. This explains the process of replacing the map lamp bulb.

ONX4E090056

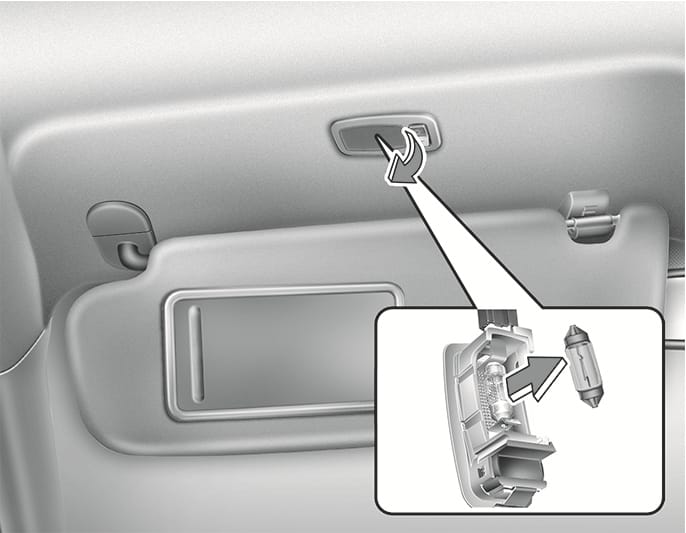

Sunvisor lamp
2025 Hyundai Tucson Sunvisor lamp replacement image. A curved arrow indicates the direction to pry open the lens cover located on the headliner above the sunvisor. A callout view shows the internal housing with a grey arrow indicating the direction to pull the bulb out. Describes the procedure for replacing the sunvisor lamp bulb.

OJS078041

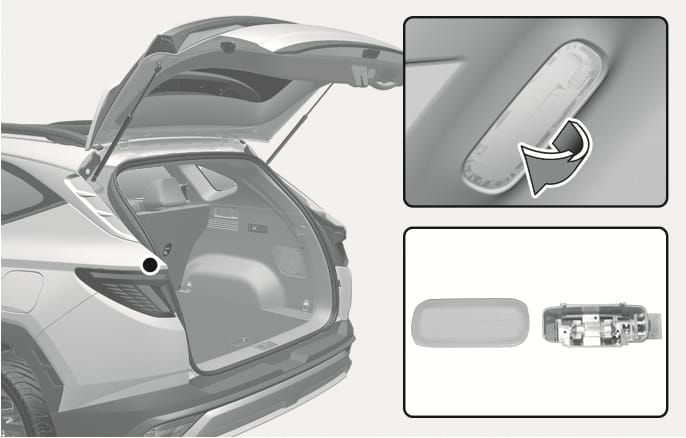

Luggage compartment lamp
2025 Hyundai Tucson Luggage compartment lamp replacement image. The image displays the open tailgate with a marker indicating the lamp on the left side of the cargo area. A detailed view shows a curved arrow indicating the direction to pry off the lens, and another view shows the detached lens and the internal bulb housing. Explains the process of accessing and replacing the luggage compartment lamp bulb.

ONX4E090073R

  1. Using a flat-head screwdriver, gently pry the lens from the interior light housing.

  2. Remove the bulb by pulling it straight out.

  3. Install a new bulb into the socket.

  4. Align the lens tabs with the interior light housing notches and snap the lens into place.

Be careful not to damage the cover, tab, and plastic housing.
