Filter replacement

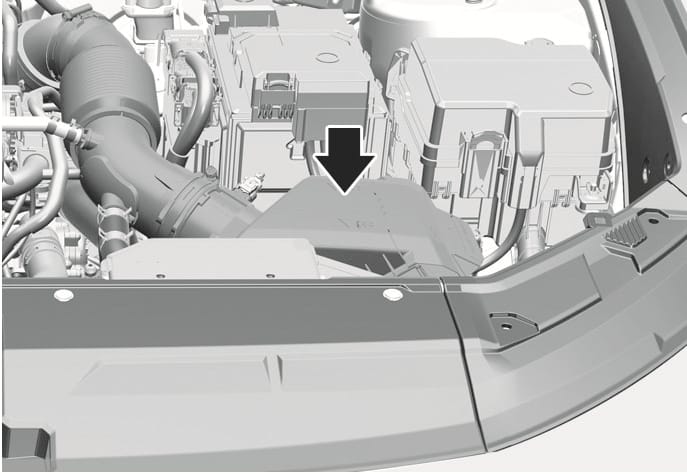

2025 Hyundai Tucson air cleaner filter location image. A large black arrow points downwards to the air cleaner housing situated in the engine compartment, connected to the air intake hose. Explains the location of the air cleaner filter for inspection and replacement.

2C_AirCleaner

The air cleaner filter can be cleaned for inspection using compressed air. Do not attempt to wash or to rinse it, as water will damage the filter. If soiled, the air cleaner filter must be replaced.

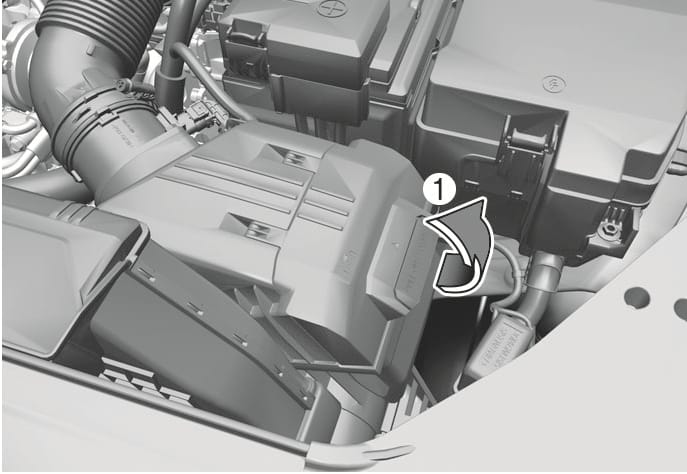

2025 Hyundai Tucson air cleaner filter replacement image. The image shows the air cleaner assembly. A callout number (1) points to the filter cover, and a curved arrow indicates the upward pulling motion. This illustrates opening the cover to replace the filter.

2C_AirCleanerReplacementProcedure

  1. Pull up the air cleaner filter cover (1).

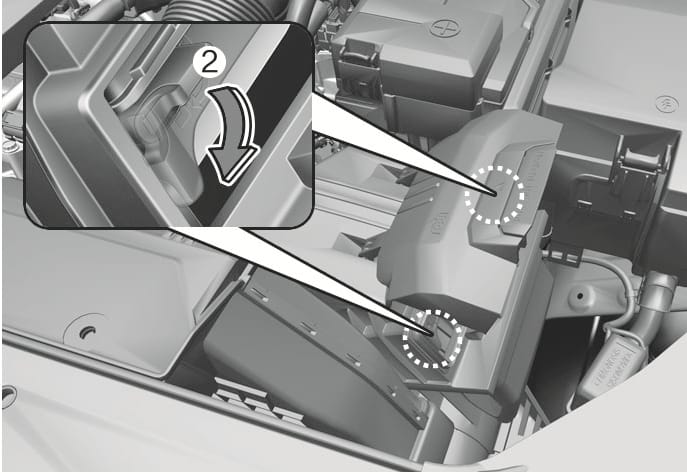

    2025 Hyundai Tucson air cleaner filter replacement image. White dotted circles highlight the locking levers on the cover. An inset shows the lever (2) with a curved arrow indicating a downward motion. Explains the function of pulling down the lever to the unlock position.

    2C_AirCleanerReplacementProcedure_2

  2. Pull down the lever to the UNLOCK (2) position.

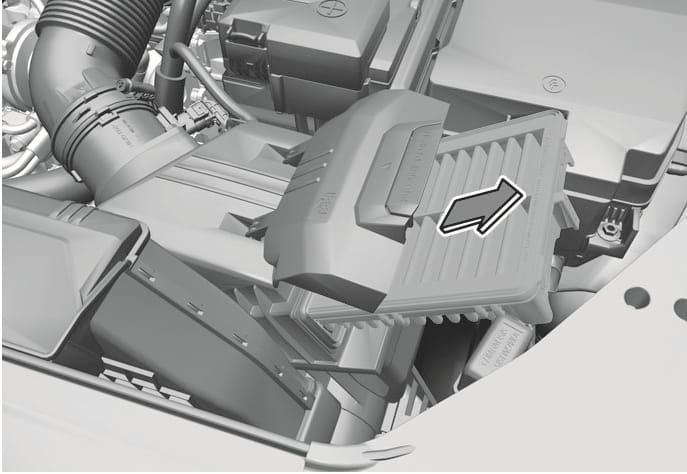

    2025 Hyundai Tucson air cleaner filter replacement image. The air cleaner filter is shown being pulled out of the housing, indicated by a large arrow pointing to the right. This describes the action of removing the filter element.

    2C_AirCleanerReplacementProcedure_3

  3. Replace the air cleaner filter.

  4. Reassemble the air cleaner cover in the reverse order.

  • Do not drive with the air cleaner filter removed. This will result in excessive engine wear.

  • When removing the air cleaner filter, be careful that dust or dirt does not enter the air intake, or damage may result.

  • We recommend that you use parts for replacement from an authorized HYUNDAI dealer.

If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals (refer to "Scheduled maintenance services" in this chapter).
