Blind-Spot View Monitor (BVM)

Left

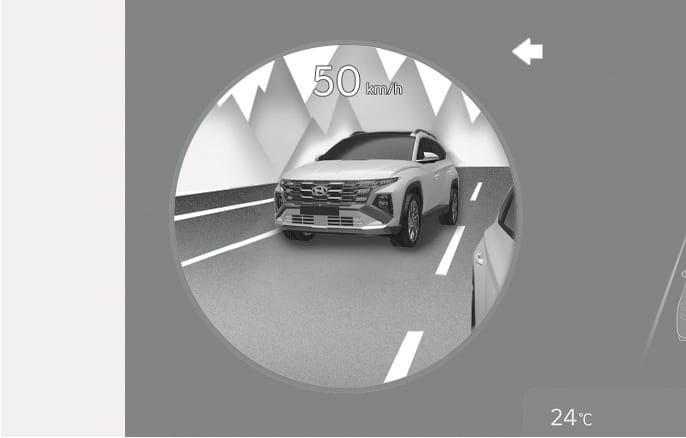

2025 Hyundai Tucson Blind-Spot View Monitor image. A circular display shows the left rear-side view of the road with a vehicle in the adjacent lane. A white arrow points to the left, and '50 km/h' is displayed. This explains the function of displaying the blind spot area when the turn signal is activated.

2C_BVMLeftSideInfo

Right

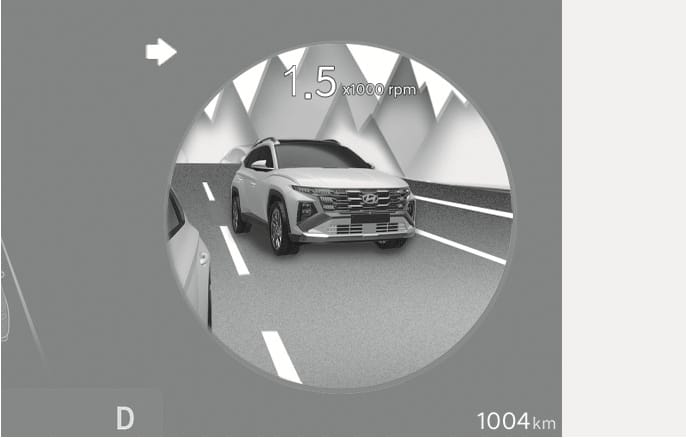

2025 Hyundai Tucson Blind-Spot View Monitor right side view image. A circular display on the instrument cluster shows the right rear blind spot area with a vehicle on the road. A right arrow icon and '1.5 x1000 rpm' text are visible. Explains the function of displaying the blind spot view when the right turn signal is activated.

2C_BVMRightSideInfo

Blind-Spot View Monitor uses the wide-side view cameras to display the rear blind spot areas of your vehicle on the instrument cluster when the turn signal is turned on to help with safe lane changes.

Detecting sensor

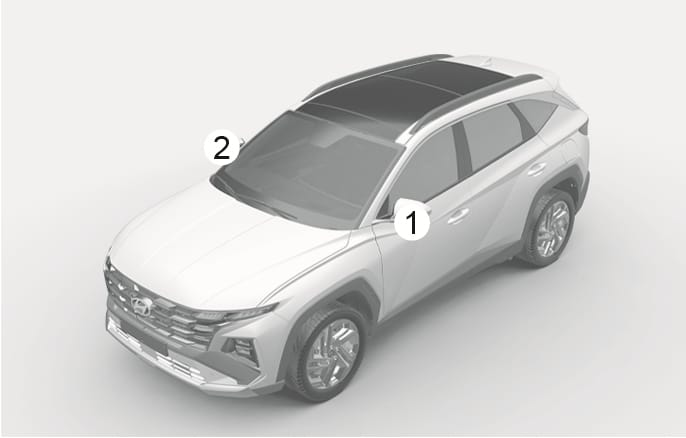

2025 Hyundai Tucson detecting sensor location image. The vehicle is shown with callout numbers indicating the wide-side view cameras located at the bottom of the side mirrors. Number 1 points to the left side mirror camera, and number 2 points to the right side mirror camera. Explains the location of the sensors used for the Blind-Spot View Monitor system.

2C_SurroundViewCamera

  1. Wide-side view camera (camera located at bottom of the mirror)
  2. Wide-side view camera (camera located at bottom of the mirror)

See the illustration above for the detailed location of the detecting sensors.
