Four Wheel Drive (4WD)

Type A

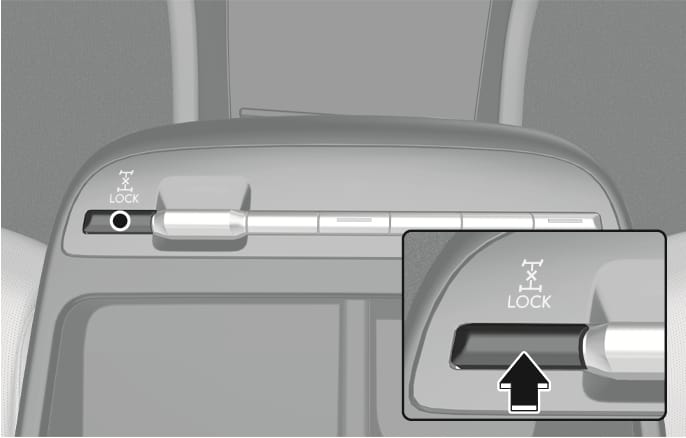

2025 Hyundai Tucson Four Wheel Drive (4WD) LOCK button image. The image displays the 4WD LOCK switch on the center console, labeled with a drivetrain icon and 'LOCK' text. A magnified inset view features a black arrow pointing upwards, indicating the direction to push the switch. Explains the function of engaging the 4WD Lock system for maximum traction.

2C_FourWheelDriveControl

Type B

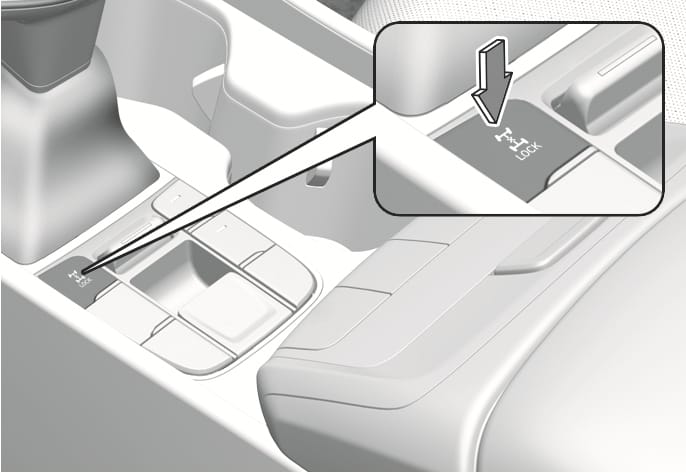

2025 Hyundai Tucson Type B Four Wheel Drive (4WD) Lock button image. The image shows the center console with a detailed view of the 4WD Lock button, featuring a drivetrain icon and 'LOCK' text. A downward arrow indicates pressing the button. Explains the function of activating the 4WD Lock system.

2C_FourWheelDriveControl_2

The Four Wheel Drive (4WD) System delivers engine power to all front and rear wheels for maximum traction. 4WD is useful when extra traction is required on roads such slippery, muddy, wet, or snow-covered roads.

Occasional off-road use such as established unpaved roads and trails are OK. It is always important that the driver carefully reduces the speed to a level that does not exceed the safe operating speed for those conditions.

To reduce the risk of SERIOUS INJURY or DEATH:

  • Do not drive in conditions that exceed the vehicles intended design such as challenging off-road conditions.

  • Avoid high speeds when cornering or turning.

  • Do not make quick steering wheel movements, such as sharp lane changes or fast, sharp turns.

  • The risk of a rollover is greatly increased if you lose control of your vehicle at highway speeds.

  • Loss of control often occurs if two or more wheels drop off the roadway and the driver over steers to reenter the roadway.

  • In the event your vehicle leaves the roadway, do not steer sharply. Instead, slow down before pulling back into the travel lanes.

  • Do not drive in water if the level is higher than the bottom of the vehicle.

  • Check your brake condition once you are out of mud or water. Depress the brake pedal several times as you move slowly until you feel normal braking return.

  • Shorten your scheduled maintenance interval if you drive in off-road conditions such as sand, mud or water (see "Maintenance Under Severe Usage Conditions" in chapter 9).

  • Always wash your vehicle thoroughly after off road use, especially the bottom of the vehicle.

  • Be sure to equip the vehicle with four tires of the same size and type.

  • Make sure that a full time 4WD vehicle is towed by a flat bed tow truck.
