Headlight aiming (for Europe)

Type A

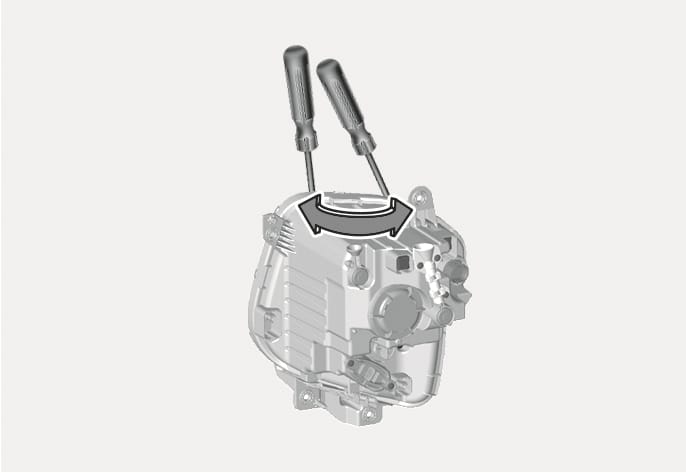

2025 Hyundai Tucson Type A headlight aiming adjustment image. Two screwdrivers are inserted into the adjustment points on the headlight housing, with a curved double-headed arrow indicating rotation. Describes the function of adjusting the headlight beam direction by turning the driver clockwise or counterclockwise.

ONX4EH090003

Type B
2025 Hyundai Tucson Type B headlight aiming adjustment image. Two screwdrivers are inserted into the adjustment points on the top of the headlight assembly. A curved double-headed arrow indicates the rotation direction. Explains the function of adjusting the headlight aim by turning the drivers clockwise or counterclockwise.

ONX4EH090002

  1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.

  2. The vehicle should be placed on a flat floor.

  3. Draw vertical lines (Vertical lines passing through respective headlight centers) and a horizontal line (Horizontal line passing through center of headlights) on the screen.

  4. With the headlight and battery in normal condition, aim the headlights so the brightest portion falls on the horizontal and vertical lines.

  5. To aim the low beam and high beam left or right, turn the driver clockwise or counterclockwise.

    To aim the low beam and high beam up or down, turn the driver clockwise or counterclockwise.

Aiming point
LED light

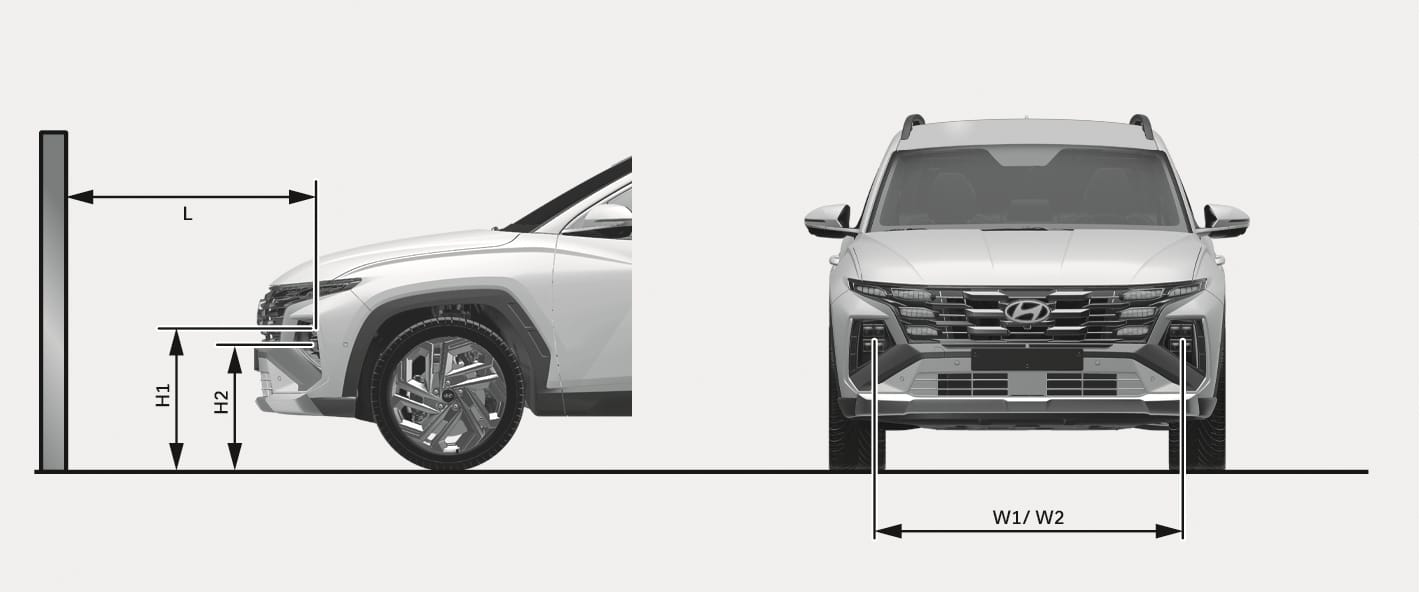

2025 Hyundai Tucson headlight aiming point diagram image. The side view shows distance L to a screen and heights H1 and H2 from the ground to the headlight centers. The front view shows the distance W1/W2 between the two headlight centers. It explains the measurement points for adjusting the headlight aim.

1C_AimingPoint_2

H1 : Height between the head light bulb center and ground (Low beam)

H2 : Height between the head light bulb center and ground (High beam)

W1 : Distance between the two head light bulbs centers (Low beam)

W2 : Distance between the two head light bulbs centers (High beam)

Vehicle condition

Light type

HI

H2

W/W2

Without driver

HALOGEN Bi-Function

664 (26.14)

664 (26.14)

1,436 (56.54)

mm (in.)

LED MFR.

660 (25.98)

589 (23.19)

1,434 (56.46)

With driver

HALOGEN Bi-Function

657 (25.87)

657 (25.87)

1,436 (56.54)

mm (in.)

LED MFR.

683 (26.89)

582 (22.91)

1,434 (56.46)
Headlight low beam (RHD side)
Based on 10m screen

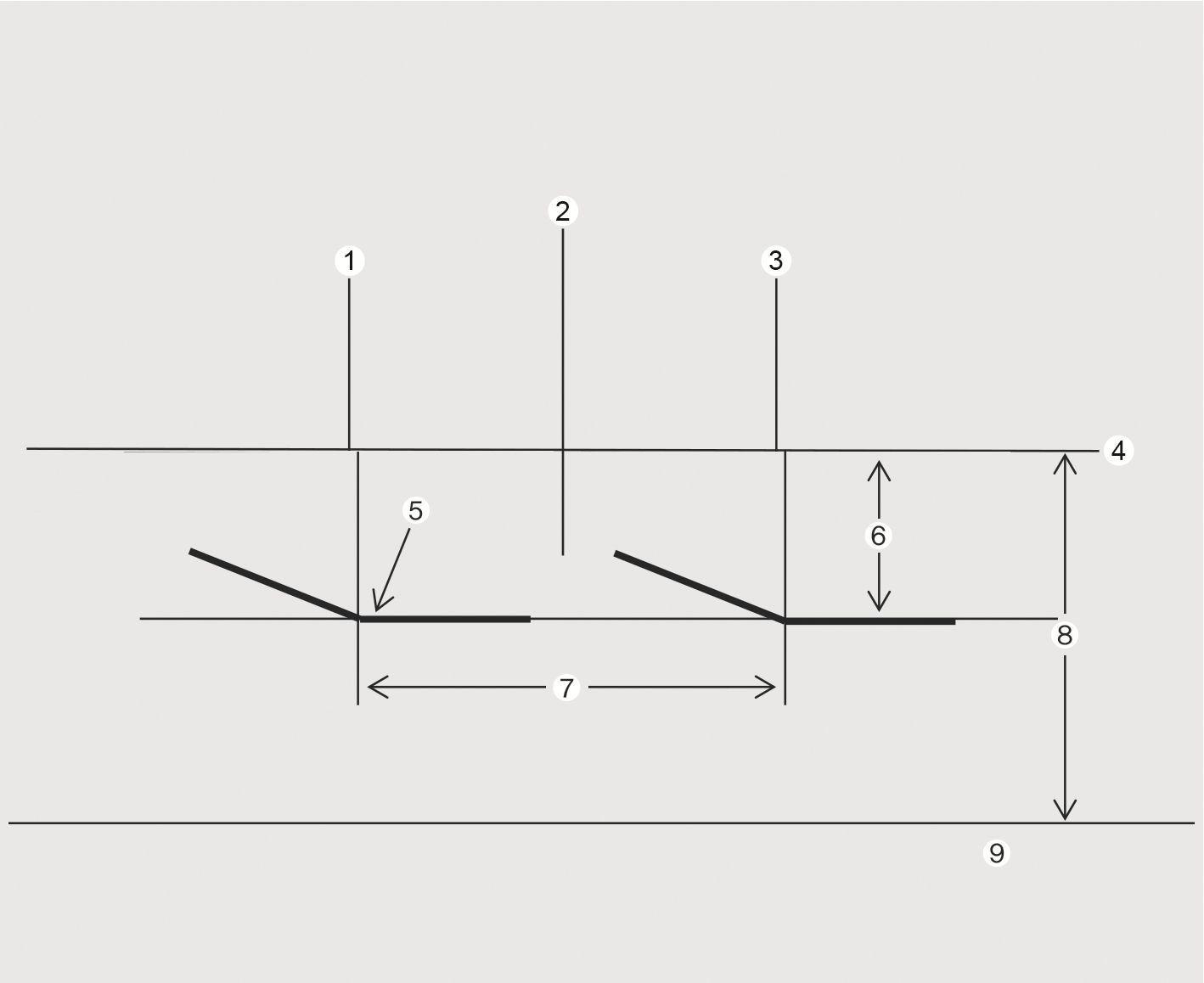

2025 Hyundai Tucson Headlight low beam aiming diagram for RHD vehicles. The schematic displays the beam pattern on a screen with callouts: (1, 3) vertical lines of headlight centers, (2) car axis, (4) horizontal line of bulb center, and (5) cut-off line. Arrows indicate the beam drop (6), distance between bulbs (7), and height from ground (8, 9). This explains the reference lines and dimensions for aiming low beam headlights.

1C_HeadLampLowBeamRHD

  1. Vertical line of the left headlight bulb center
  2. Car axis
  3. Vertical line of the right headlight bulb center
  4. Horizontal line of headlight bulb center
  5. Cut-off line
  6. 100
  7. W1 (Low beam)
  8. H1 (Low beam)
  9. Ground

  1. Turn the low beam on without driver aboard.

  2. The cut-off line should be projected in the cut-off line shown in the picture.

  3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  4. If headlight leveling device is equipped, adjust the headlight leveling device switch to "0".

* The high beam is aimed simultaneously when aiming the low beam.

Headlight low beam (LHD side)
Based on 10m screen

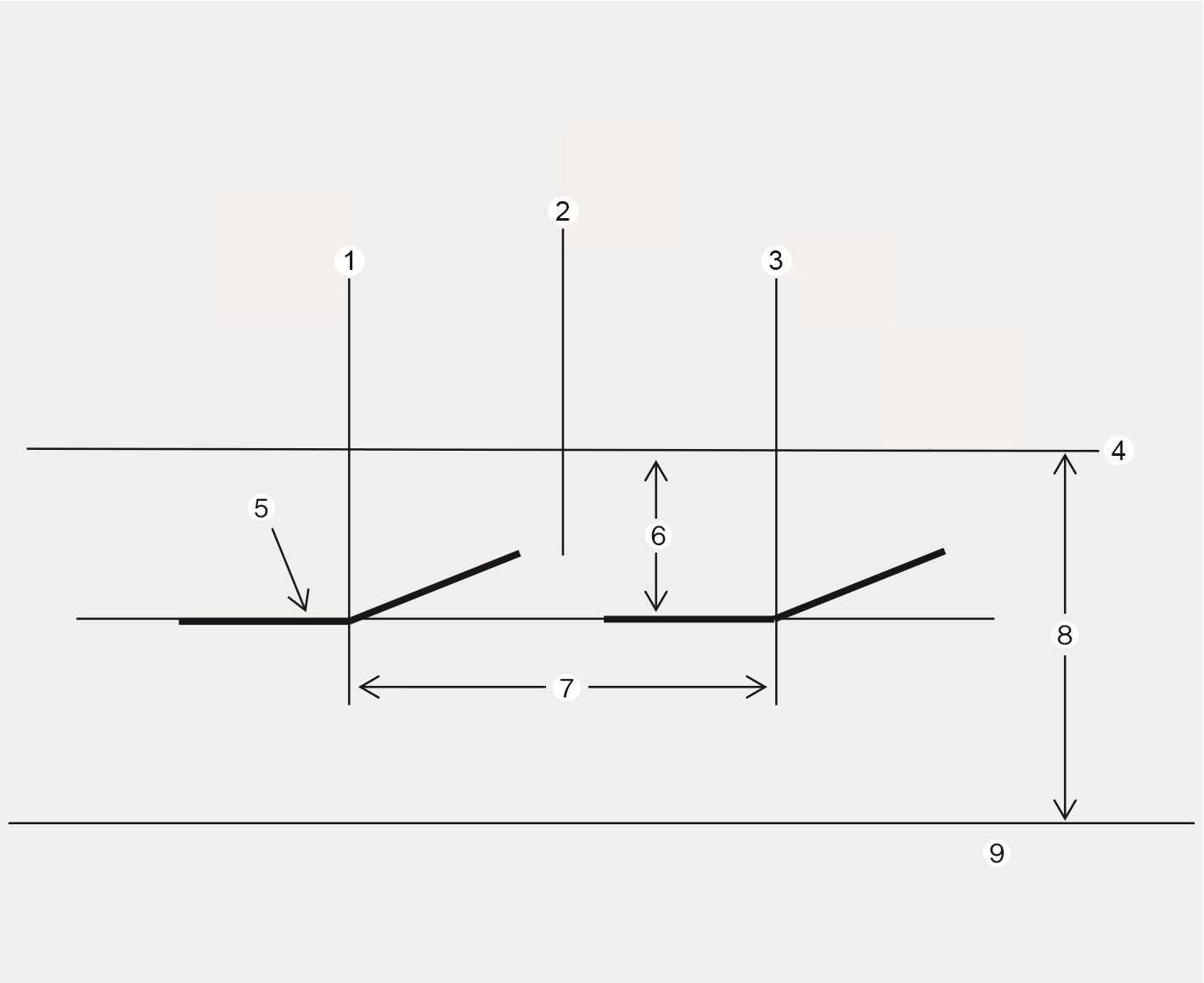

2025 Hyundai Tucson LHD low beam aiming diagram. Features callouts: (1, 3) vertical lines of headlight centers, (2) car axis, (4) horizontal center line, and (5) cut-off line. Arrows indicate (7) distance between bulbs and (8) height from ground (9). Describes reference points for adjusting headlight alignment.

1C_HeadLampLowBeamLHD

  1. Vertical line of the left headlight bulb center
  2. Car axis
  3. Vertical line of the right headlight bulb center
  4. Horizontal line of headlight bulb center
  5. Cut-off line
  6. 100
  7. W1 (Low beam)
  8. H1 (Low beam)
  9. Ground

  1. Turn the low beam on without driver aboard.

  2. The cut-off line should be projected in the cut-off line shown in the picture.

  3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.

  4. If headlight leveling device is equipped, adjust the headlight leveling device switch to "0".

* The high beam is aimed simultaneously when aiming the low beam.
