Wipers and washers

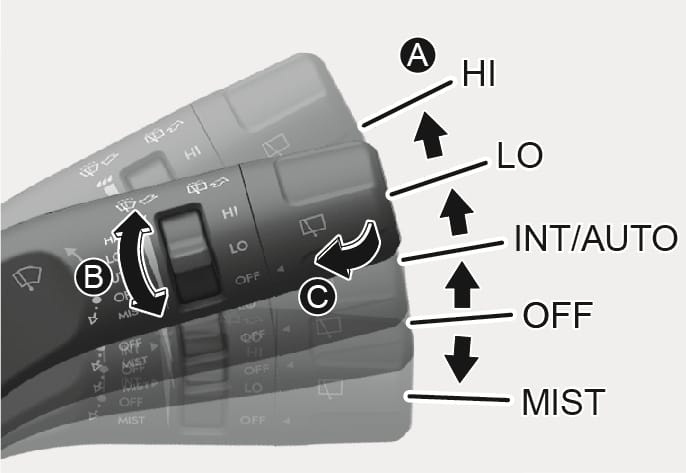

Front windshield wiper/washer, Type A
2025 Hyundai Tucson Front wiper switch image. Vertical arrows (A) show lever positions for MIST, OFF, INT/AUTO, LO, and HI. A curved arrow (B) indicates rotating the band for interval adjustment. Arrow (C) shows pulling the lever to wash. Explains wiper speed control and washer operation.

2C_WiperSwitchOverview

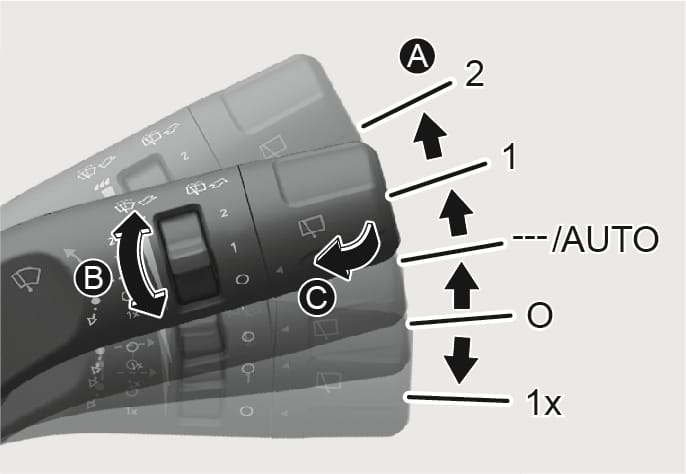

Front windshield wiper/washer, Type B
2025 Hyundai Tucson Front windshield wiper and washer Type B image. Vertical arrows (A) indicate lever positions 2, 1, ---/AUTO, O, and 1x. A curved arrow (B) shows rotating the ring for wipe time adjustment. Arrow (C) indicates pulling the lever. Explains the functions for controlling wiper speed and using the washer.

2C_WiperSwitchOverview_2

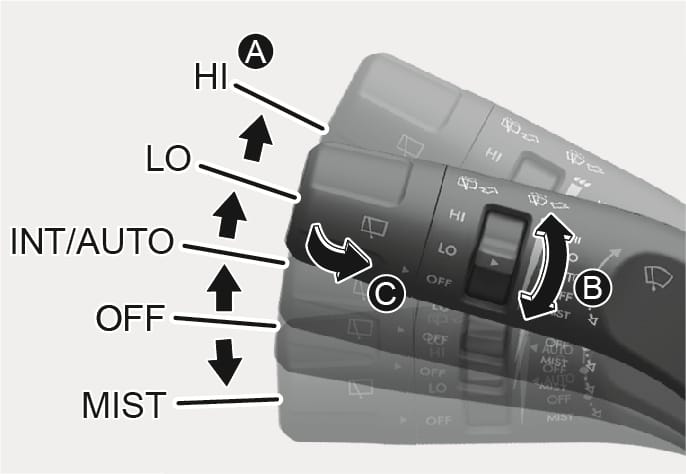

Front windshield wiper/washer, Type C
2025 Hyundai Tucson Front windshield wiper/washer switch Type C image. Vertical arrows (A) show lever positions HI, LO, INT/AUTO, OFF, and MIST. A curved arrow (B) indicates rotating the ring for interval adjustment. Arrow (C) shows pulling the lever to wash. Explains front wiper and washer operation.

2C_WiperSwitchOverview_3

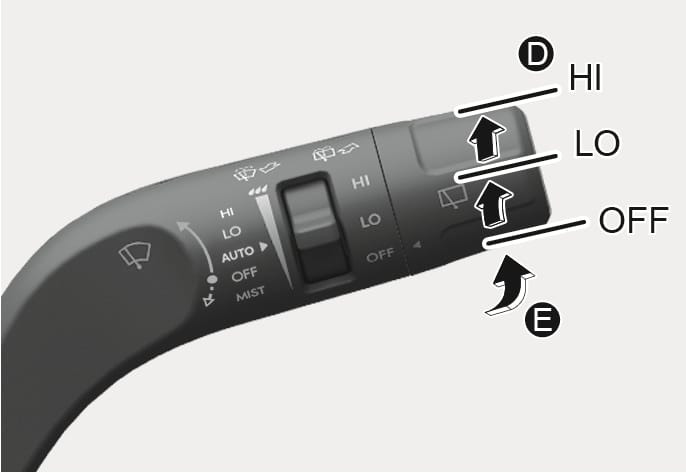

Rear windshield wiper/washer, Type A
2025 Hyundai Tucson Rear windshield wiper/washer switch Type A image. The lever end features callout (D) for rear wiper control with HI, LO, and OFF positions indicated by upward arrows. A curved arrow (E) shows the downward motion for the washer. Describes the function of adjusting rear wiper speed and operating the rear washer.

2C_WasherRearSwitchOverview

Rear windshield wiper/washer, Type B
2025 Hyundai Tucson Rear windshield wiper/washer switch, Type B image. The end of the wiper lever features a rotary switch labeled D with positions O, 1, and 2. Upward arrows indicate rotating the switch to select low (1) or high (2) speeds, while a downward curved arrow labeled E indicates the operation to activate the washer. Describes the function of controlling the rear wiper speed and washer.

2C_WasherRearSwitchOverview_2

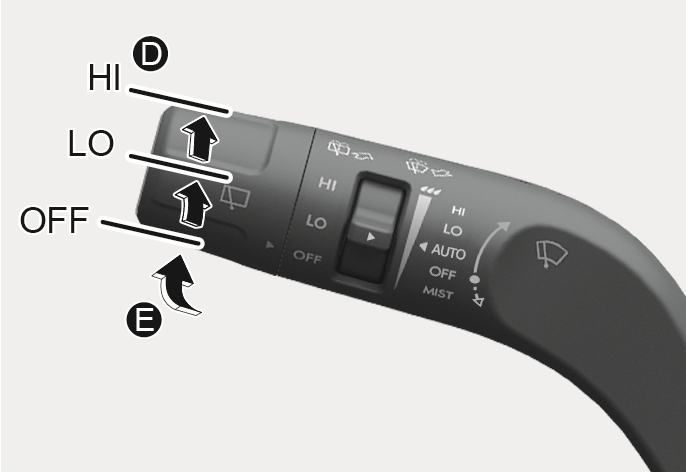

Rear windshield wiper/washer, Type C
2025 Hyundai Tucson Rear windshield wiper/washer Type C image. A rotary switch (D) on the lever is labeled HI, LO, and OFF with arrows indicating rotation. A curved arrow (E) shows pushing the lever away. Explains rear wiper control and washer operation.

2C_WasherRearSwitchOverview_3

A. Wiper speed control (front)

  • HI/2: High wiper speed.

  • LO/1: Low wiper speed.

  • INT/---: Intermittent wipe.

  • AUTO(if equipped): Auto control wipe.

  • OFF/O: Off

  • MIST/1x: Single wipe

B. Intermittent or Auto control wipe time adjustment

C. Wash with brief wipes (front)

D. Rear wiper control

  • HI/2: High wiper speed.

  • LO/1: Low wiper speed.

  • OFF/O: Off

E. Wash with brief wipes (rear)
