Air ventilation seat

Type A
2025 Hyundai Tucson Front Seat Ventilation Switch Type A image. It displays the climate control panel and a magnified inset of the ventilation button with a seat and fan icon. A black arrow points to the button, indicating the press action to activate the seat cooling function.

2C_FrontSeatVentilationSwitchTypea

Type B
2025 Hyundai Tucson front seat ventilation switch Type B image. The image displays the climate control panel with ventilation buttons located below the display. A zoomed-in inset shows a black arrow pointing up to the button with a seat and fan icon, accompanied by three indicator lights. Explains the function of pressing the switch to operate the air ventilation seat.

2C_FrontSeatVentilationSwitchTypeb

The air ventilation seats are provided to cool the front seats by blowing air through small vent holes on the surface of the seat cushions and seatbacks.

When the operation of the air ventilation seat is not needed, keep the switches in the OFF position.

While the engine is running, push the switch to cool the driver's seat or the front passenger's seat (if equipped).

To prevent damage to the air ventilation seats:

  • Never use a solvent such as paint thinner, benzene, alcohol or gasoline to clean the seats.

  • Avoid spilling liquids on the surface of the front seats and seatbacks; this may cause the air vent holes to become blocked and not work properly.

  • Do not place materials such as plastic bags or newspapers under the seats. They may block the air intake causing the air vents to not work properly.

  • Do not change the seat covers. It may damage the air ventilation seat.

  • If the air vents do not operate, restart the vehicle. If there is no change, we recommend that you have your vehicle inspected by an authorized HYUNDAI dealer.

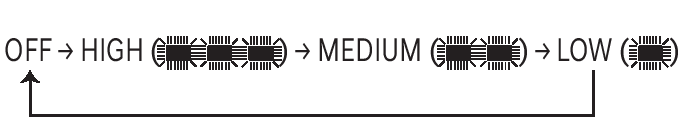

  • Each time you push the switch, the airflow changes as follows:

    2025 Hyundai Tucson air ventilation seat operation cycle image. The diagram illustrates the sequence of airflow levels connected by arrows: OFF, HIGH with an icon showing three ventilation lines, MEDIUM with two lines, and LOW with one line. An arrow loops from LOW back to OFF. This describes the function where the airflow intensity changes sequentially each time the switch is pressed.

  • When pressing the switch for more than 1.5 seconds with the air ventilation seat operating, the operation will turn OFF.

  • The air ventilation seats defaults to the OFF position whenever the ignition switch is placed to the ON position.

  • Auto Comfort Control (for driver's seat) (if equipped)

    • The air ventilation seats automatically controls the seat temperature depending on the ambient temperature and the set climate control temperature when the engine is running. If the air ventilation seats switch is pushed, the air ventilation seats will have to be controlled manually.

      To use this function, it must be activated from the Settings menu in the infotainment system screen.

    • The air ventilation seats defaults to the OFF position whenever the ignition switch is ON. However, if the Auto Comfort Control function is ON, the air ventilation seats will turn on and off depending on the ambient temperature and the set climate control temperature.

For more details, refer to the separately supplied Infotainment manual with your vehicle.
