Surround view monitor operation

Parking/View button
2025 Hyundai Tucson Parking/View button image. The image shows the button labeled (1) with a camera and 'P' icon on the center console. A detailed view includes a black arrow pointing upward to indicate pressing the button. Explains the function of turning on the Surround View Monitor.

2C_ParkingViewButton

Press the Parking/View button (1) to turn on Surround View Monitor.

Press the button again to turn off the function.

Front view

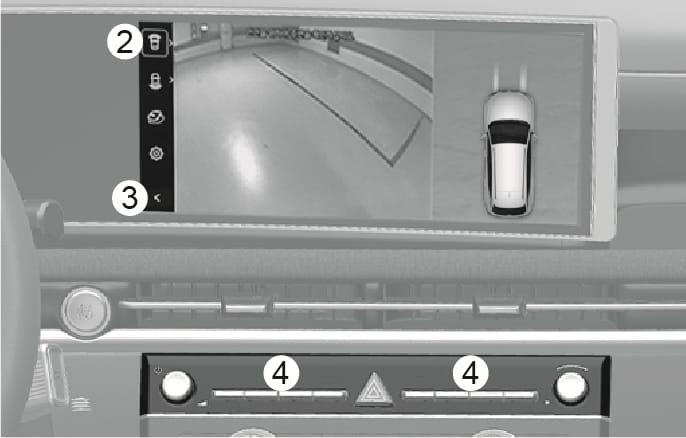

2025 Hyundai Tucson Surround View Monitor front view image. The screen displays the front view and top view. The change view button (2) is on the left menu, and the previous button (3) is at the bottom. The infotainment system buttons (4) are on the panel below. Explains the front view interface and controls.

2C_SVMFrontViewInfo

The front view appears on the screen when the gear is in N (Neutral) or D (Drive) to assist in parking.

You may select top view, front view and side view using the change view button (2).

Operating conditions

  • The gear is shifted to N (Neutral) or D (Drive) from R (Reverse) and the vehicle speed is 10 km/h (6 mph) or less.

  • The Parking/View button (1) is pressed, while the gear is in P (Park), N (Neutral) or D (Drive), and vehicle speed is 10 km/h (6 mph) or less.

  • Surround view monitor auto On function is operated.

    When Driver assistance > Parking safety > Surround view monitor auto On is selected from the Settings menu, the front view while parking appears.

When the front view is activated, the latest used view mode is displayed.

Off conditions

  • The gear is shifted to P (Park) or R (Reverse).

  • The Parking/View button (1) or the Infotainment system button (4) is pressed.

  • Vehicle speed is above 10 km/h (6 mph).

  • The previous (ŷ) button (3) is selected on the surround view menu.

Surround View Monitor may turn off when vehicle speed is above 10 km/h (6 mph). However, Surround View Monitor may not turn on again although vehicle speed drops below 10 km/h (6 mph).

Front view while driving

The driver is able to check the front view on the screen for safe driving.

You may select front view while driving using the change view button (2).

Operating conditions

  • The Parking/View button (1) is pressed, while the gear is in N (Neutral) or D (Drive), and vehicle speed is above 10 km/h (6 mph).

Off conditions

  • The Parking/View button (1) or the Infotainment system button (4) is pressed.

  • The gear is shifted to P (Park) or R (Reverse).

  • The previous (ŷ) button (3) is selected on the surround view menu.

  • When the front view while driving is activated, the latest used view mode displayed.

  • The front view while driving does not turn off even when the vehicle speed is lower than 10 km/h (6 mph) once it is on.

  • When the front view while driving is on, the front top view and side view are deactivated in all speed.

Rear view

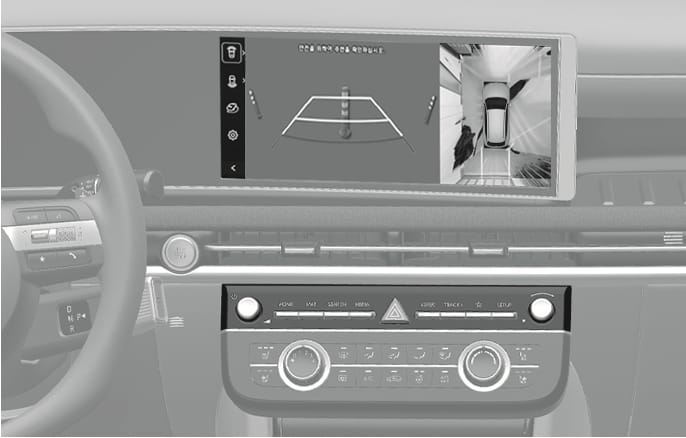

2025 Hyundai Tucson Surround View Monitor rear view screen image. The infotainment display shows a split screen with the rear view and parking guidelines on the left, and a top-down view on the right. It explains the function of displaying the rear view to assist in parking.

2C_SVMRearViewInfo_2

The rear view appears on the screen to assist in parking.

You may select top view, rear view and side view using the change view button (2).

Operating conditions

  • The gear is shifted to R (Reverse).

  • The rear view is selected by pressing the change view button (2) after pressing the Parking/View button (1), while the gear is in P (Park), N (Neutral) or D (Drive), and vehicle speed is 10 km/h (6 mph) or less.

You may select rear view using the change view button (2).

Off conditions

When the gear is in P (Park), N (Neutral) or D (Drive):

  • The Parking/View button (1) or the Infotainment system button (4) is pressed.

  • The gear is shifted from N (Neutral) or D (Drive), to P (Park).

  • The previous (ŷ) button (3) is selected on the surround view menu.

  • Vehicle speed is above 10 km/h (6 mph).

When the gear is in R (Reverse):

  • The gear is shifted to P (Park).

When the gear is in R (Reverse), the rear view does not turn off even if the infotainment system button (4) is pressed.

Rear View while driving

The driver is able to check the rear view on the screen while driving, it is to assist with backing up.

Operating conditions

  • The rear view is selected by pressing the change view button (2) after pressing the Parking/View button (1), while the gear is in N (Neutral) or D (Drive), and vehicle speed is above 10 km/h (6 mph).

You may select rear view using the change view button (2).

Off conditions

  • The gear is shifted to P (Park).

  • The Parking/View button (1) or the Infotainment system button (4) is pressed.

  • The previous (ŷ) button (3) is selected on the surround view menu.

  • When the rear view while driving is activated, the latest used view mode is displayed.

  • The Rear View Parking Lines does not operate on the rear view while driving.

  • The rear view while driving does not turn off even when the vehicle speed is lower than 10 km/h (6 mph) once it is on.

  • When the rear view while driving is on, the rear top view and rear side view are deactivated in all speed.

3D view

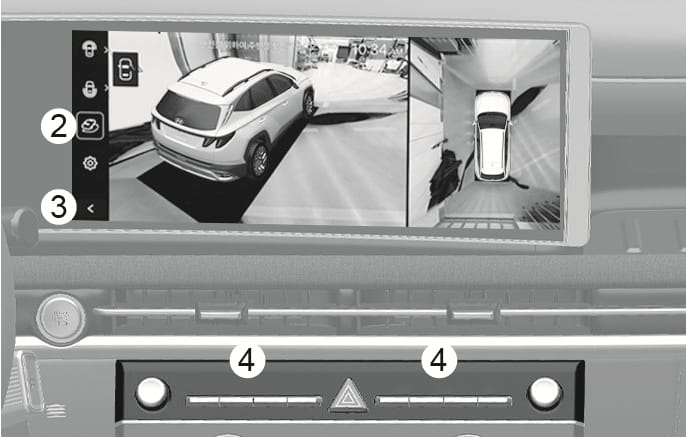

2025 Hyundai Tucson Surround View Monitor image. The infotainment screen displays a 3D view and a top view of the vehicle. It indicates the change view button (2) and previous button (3) on the screen, and the infotainment system buttons (4) on the control panel. Explains the display layout and button functions.

2C_SVM3DViewInfo

The 3D view shows the image around the vehicle from various angles.

You can change angles by tapping the screen. Press the 3D view button again to return to the initial angle.

Operating conditions

When the 3D view is selected by pressing the change view button (2):

  • The gear is in P (Park), N (Neutral) or D (Drive) when vehicle speed is below 10 km/h (6 mph).

  • The Surround View Monitor is turned on when the gear is in R (Reverse).

Off conditions

When the gear is in P (Park), N (Neutral) or D (Drive):

  • The gear is shifted to P (Park) from N (Neutral) or D (Drive).

  • The Parking/View button (1) or the Infotainment system button (4) is pressed.

  • The previous (ŷ) button (3) is selected on the surround view menu.

  • Vehicle speed is above 10 km/h (6 mph).

When the gear is in R (Reverse):

  • The gear is shifted to P (Park).

3D view does not display guidelines.
