Seat Belt Restraint System Operation and Adjustment

Seat belt restraint system

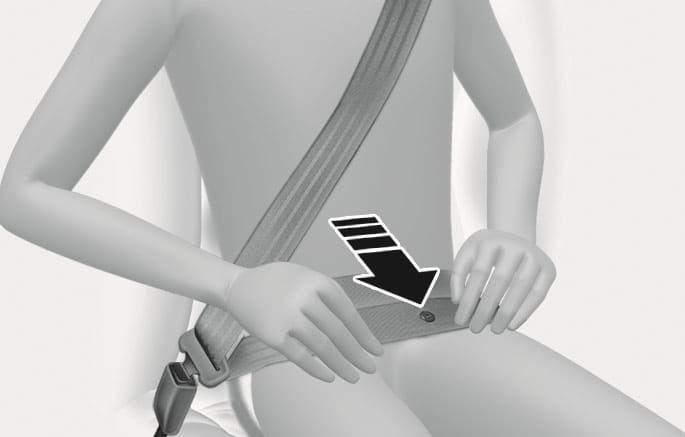

2025 Hyundai Tucson seat belt wearing guide image. A stylized figure is shown with a seat belt, where a large black arrow points downward to the lap belt area. The figure's hands hold the lap belt. Explains the correct positioning of the lap belt low across the hips to ensure a snug fit.

Improperly positioned seat belts may increase the risk of serious injury in an accident. Take the following precautions when adjusting the seat belt:

Position the lap portion of the seat belt as low as possible across your hips, not on your waist, so that it fits snugly. This allows your strong pelvic bones to absorb the force of the crash, reducing the chance of internal injuries.
Position one arm under the shoulder belt and the other over the belt, as shown in the illustration.
Always position the shoulder belt anchor into the locked position at the appropriate height.
Never position the shoulder belt across your neck or face.

Lap/shoulder belt

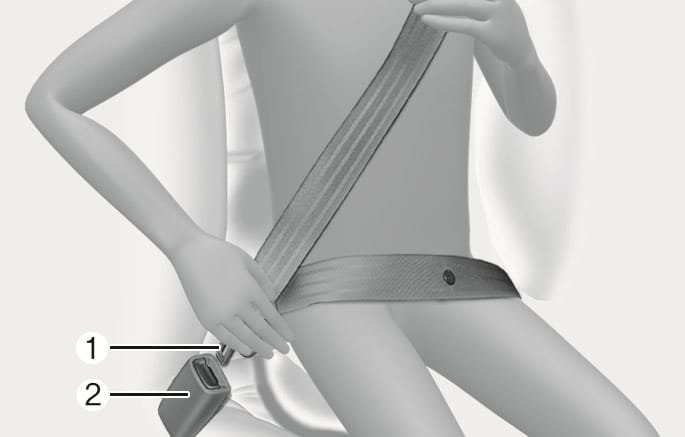

2025 Hyundai Tucson seat belt fastening image. A figure is shown inserting the metal tab (1) into the buckle (2). This describes the function of fastening the seat belt by inserting the tab into the buckle until it clicks.

To fasten your seat belt:

Pull it out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.

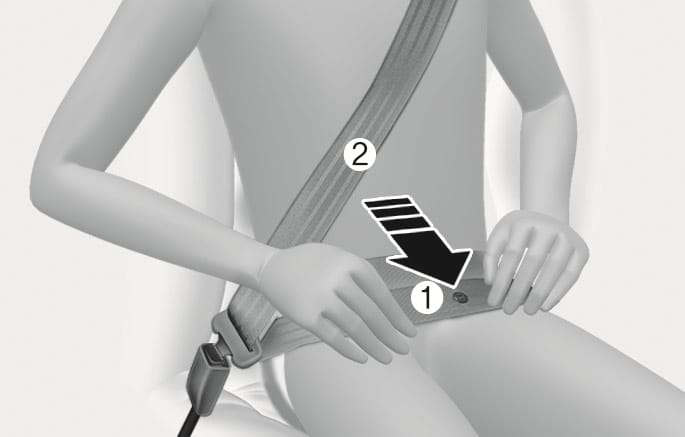

2025 Hyundai Tucson seat belt correct wear image. An illustration shows a seated figure with the lap belt (1) positioned across the hips and the shoulder belt (2) across the chest. A large black arrow points to the buckle area (1). Explains the correct positioning of the lap and shoulder belts for proper restraint.

You should place the lap belt (1) portion across your hips and the shoulder belt (2) portion across your chest.

The seat belt automatically adjusts to the proper length after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and move with you.

If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

If you are not able to smoothly pull enough of the seat belt out from the retractor, firmly pull the seat belt out and release it. After release, you will be able to pull the belt out smoothly.

Height adjustment

You can adjust the height of the shoulder belt anchor to one of the four different positions for maximum comfort and safety.

The shoulder portion should be adjusted so it lies across your chest and midway over your shoulder nearest the door, not over your neck.

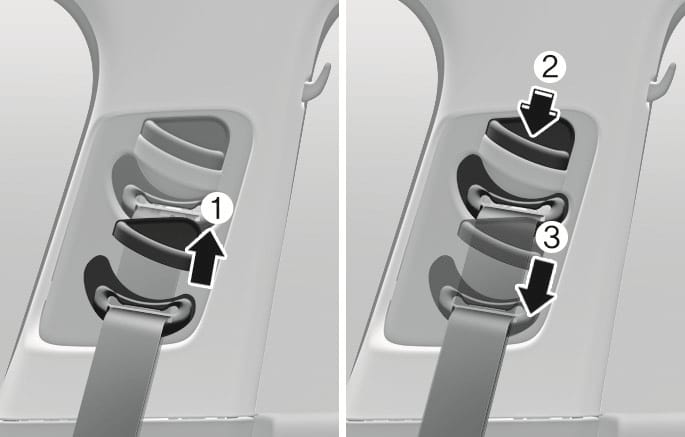

2025 Hyundai Tucson seat belt height adjustment image. The left panel shows a black upward arrow (1) indicating to pull the adjuster up to raise it. The right panel shows pressing the button (2) and a black downward arrow (3) indicating to push the adjuster down to lower it. This describes the function of adjusting the shoulder belt anchor height for optimal safety and comfort.

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.

To raise the height adjuster, pull it up (1). To lower it, push it down (3) while pressing the height adjuster button (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

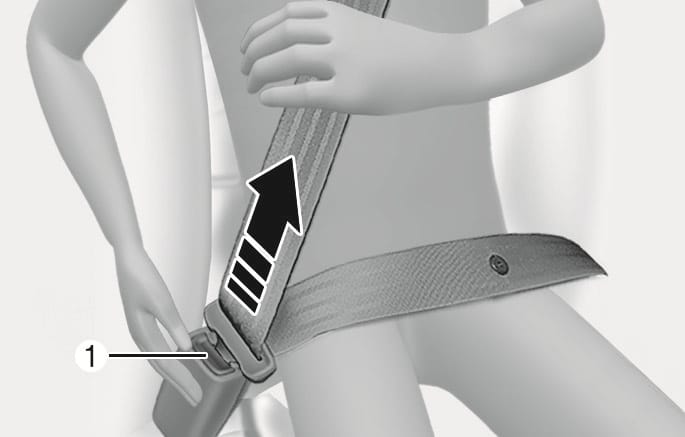

2025 Hyundai Tucson seat belt release image. A hand presses the release button (1) on the buckle, and a large black arrow pointing upward along the strap indicates the retraction direction. This describes the function of releasing the seat belt to let it retract.

To release your seat belt:

Press the release button (1) in the locking buckle.

When it is released, the belt should automatically draw back into the retractor. If this does not happen, check the belt to be sure it is not twisted, then try again.

Rear center seatbelt (3-point rear center seat belt)

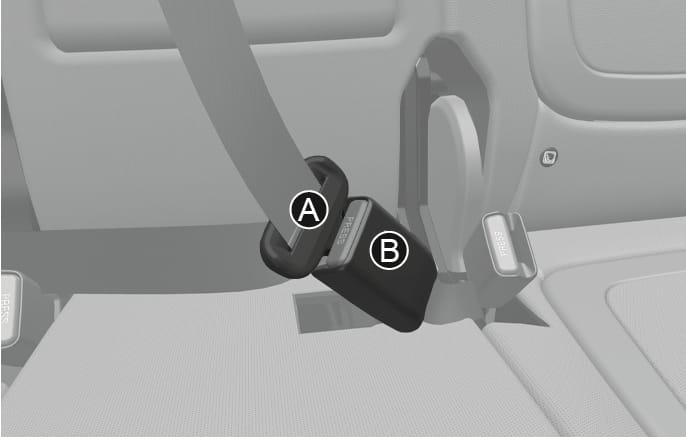

2025 Hyundai Tucson rear center seat belt fastening image. The metal plate (A) is positioned to be inserted into the buckle (B). Explains the process of fastening the rear center seat belt by inserting the metal plate into the buckle until it clicks.

Take out the buckle [B], which is stored between the seat/seatback cushions.
Insert the metal plate [A] into the buckle [B], until it clicks.

You can make sure its secure fastening by pulling the seatbelt webbing. The buckle with 'CENTER' mark should be used for the 3-point seatbelt.
Restore the buckle between the seat/seatback cushion after unfastening the seatbelt.

Pre-tensioner seat belt

Your vehicle is equipped with driver's and front passenger's Pre-tensioner Seat Belts (Retractor Pre-tensioner). The purpose of the pre-tensioner is to make sure the seat belts fit tightly against the occupant's body in certain frontal or side collision(s). The pre-tensioner seat belts may be activated in crashes where the frontal or side collision(s) is severe enough, together with the air bags.

When the vehicle stops suddenly, or if the occupant tries to lean forward too quickly, the seat belt retractor will lock into position.

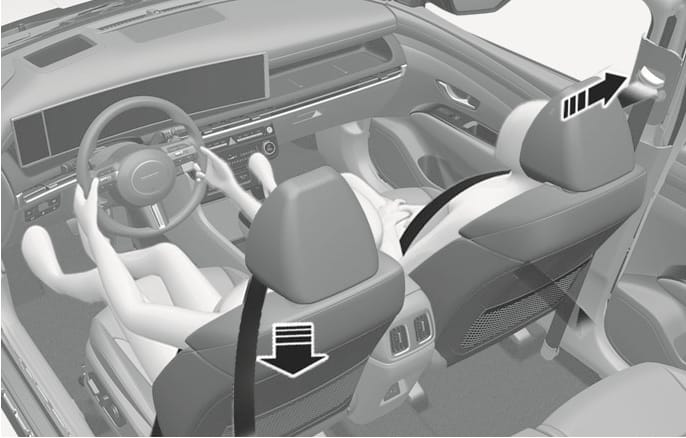

In certain frontal collisions, the pre-tensioner will activate and pull the seat belt into tighter contact against the occupant's body.

If the system senses excessive tension on the driver or passenger's seat belt when the pre-tensioner system activates, the load limiter inside the retractor pre-tensioner will release some of the pressure on the affected seat belt (if equipped with load limiter).

Always wear your seat belt and sit properly in your seat.
Do not use the seat belt if it is loose or twisted. A loose or twisted seat belt will not protect you properly in an accident.
Do not place anything near the buckle. This may adversely affect the buckle and cause it to function improperly.
Always replace your pre-tensioners after activation or an accident.
NEVER inspect, service, repair or replace the pre-tensioners by yourself. We recommend that you have the pre-tensioners inspected, serviced, repaired or replaced by an authorized HYUNDAI dealer.
Do not hit the seat belt assemblies.

Do not touch the pre-tensioner seat belt assemblies for several minutes after they have been activated. When the pre-tensioner seat belt mechanism deploys during a collision, the pre-tensioner can become hot and can burn you.

Body work on the front area of the vehicle may damage the pre-tensioner seat belt system. Therefore, we recommend the system to be serviced by an authorized HYUNDAI dealer.

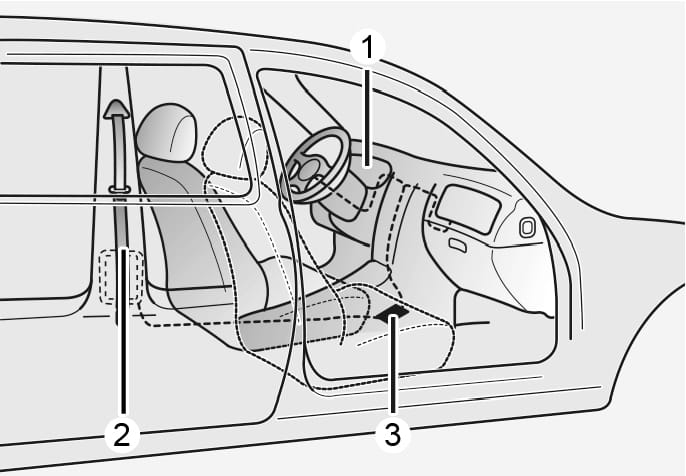

2025 Hyundai Tucson Pre-Tensioner Seat Belt System overview image. Numbered callouts indicate the locations of system components inside the vehicle: (1) the SRS air bag warning light on the instrument cluster, (2) the retractor pre-tensioner at the base of the B-pillar, and (3) the SRS control module in the center console. Dotted lines show the connections between these parts. Explains the location of the pre-tensioner seat belt system components.

The Pre-Tensioner Seat Belt System consists mainly of the following components. Their locations are shown in the illustration above:

SRS air bag warning light
Retractor pre-tensioner
SRS control module

The sensor that activates the SRS control module is connected with the pre-tensioner seat belts. The SRS air bag warning light on the instrument cluster will illuminate for approximately 3-6 seconds after the Engine Start/Stop button is in the ON position, and then it should turn off.

If the pre-tensioner is not working properly, the warning light will illuminate even if the SRS air bag is not malfunctioning. If the warning light does not illuminate, stays illuminated or illuminates when the vehicle is being driven, we recommend the pre-tensioner seat belts and/or SRS control module be inspected by an authorized HYUNDAI dealer as soon as possible.

Pre-tensioner seat belts may be activated in certain frontal or side collisions or rollover situations (if equipped with rollover sensor).
When the pre-tensioner seat belts are activated, a loud noise may be heard and fine dust, which may appear to be smoke, may be visible in the passenger compartment. These are normal operating conditions and are not hazardous.
Although it is non-toxic, the fine dust may cause skin irritation and should not be inhaled for prolonged periods. Wash all exposed skin areas thoroughly after an accident in which the pre-tensioner seat belts were activated.
