Blade replacement

When the wipers no longer clean adequately, the blades may be worn or cracked, and require replacement.

To prevent damage to the wiper arms or other components, do not attempt to move the wipers manually.

The use of a non-specified wiper blade could result in wiper malfunction and failure.

  • In order to prevent damage to the hood and the wiper arms, the wiper arms should only be lifted when in the top wiping position.

  • Always return the wiper arms to the windshield before driving.

Front windshield wiper service positions

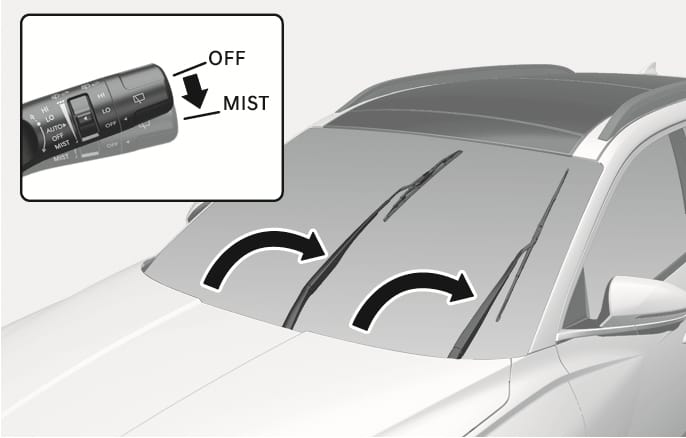

2025 Hyundai Tucson front windshield wiper service position image. The image displays the windshield with curved arrows indicating the wipers moving to the vertical position. An inset shows the wiper control lever with a downward arrow indicating the operation from OFF to MIST. Explains the function of moving the wipers to the top wipe position for replacement.

2C_FontWiperReplacementProcedure

This vehicle has a "hidden" wiper design which means that the wipers cannot be lifted when they are in their bottom resting position.

  1. Within 20 seconds of turning off the engine, lift and hold the wiper lever down to the MIST (or down to the 1x) position for about 2 seconds until the wipers move to the top wipe position.

  2. At this time you can lift the wipers off the windshield.

  3. Gently put the wipers back down onto the windshield.

  4. Turn the wipers to any ON position to return the wipers to the bottom resting position.

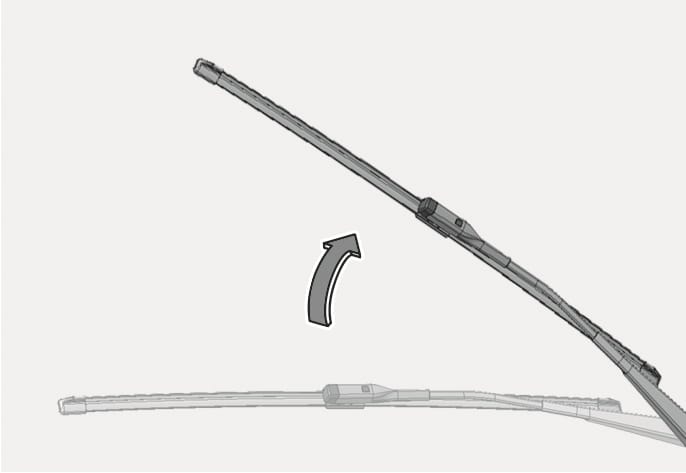

2025 Hyundai Tucson front windshield wiper arm image. A curved arrow points upward from the wiper arm lying on the glass to the arm in a lifted position. Explains the action of raising the wiper arm to replace the blade.

ONX4E090063

  1. Raise the wiper arm.

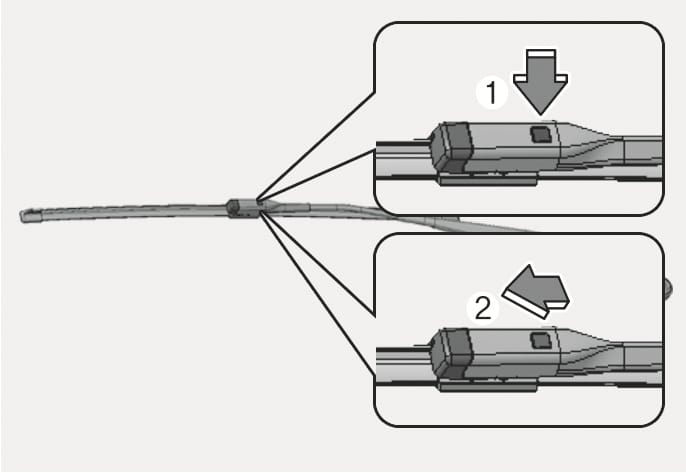

    2025 Hyundai Tucson wiper blade replacement image. Detailed views show a vertical arrow pressing the stopper (1) on the wiper arm, and a directional arrow indicating the blade assembly sliding up (2). Explains the process of pressing the stopper and sliding the blade assembly to remove it.

    ONX4E090064

  2. Press the stopper (1) on the wiper arm and slide the blade assembly up (2) and remove it.

  3. Install the new blade assembly in the reverse order of removal.

  4. Return the wiper arm on the windshield.

Rear window wiper blade replacement

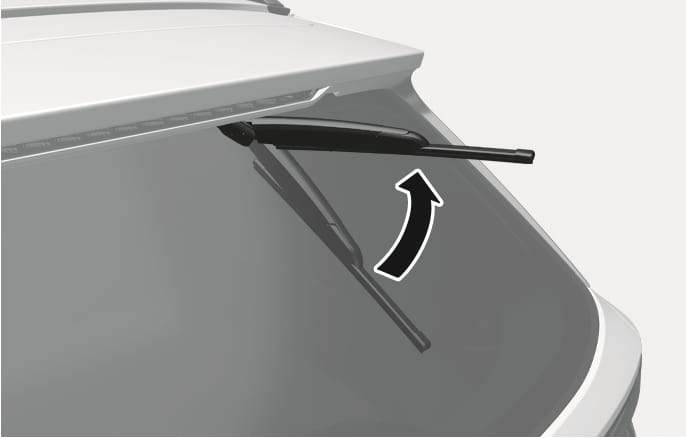

2025 Hyundai Tucson rear window wiper arm image. A curved black arrow points upward, showing the wiper arm being lifted away from the rear windshield. Explains the function of raising the wiper arm to replace the wiper blade.

2C_RearWiperReplacementProcedure_1

  1. Within 20 seconds after the vehicle is turned off, push up the wiper switch to the MIST position for about 2 seconds until the wipers move to the lowest position.

  2. Raise the wiper arm.

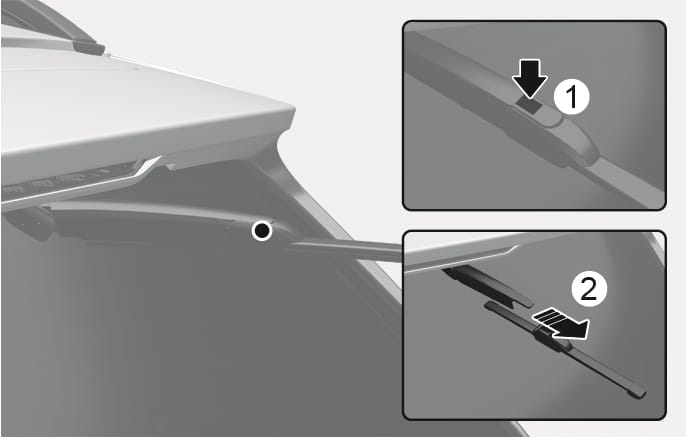

    2025 Hyundai Tucson rear wiper blade replacement image. The image shows the rear wiper arm raised from the window. Inset (1) displays a downward arrow indicating to press the release tab, and inset (2) shows a striped arrow indicating to slide the blade assembly out. This explains the function of removing the rear wiper blade.

    2C_RearWiperReplacementProcedure_2

  3. Lift off the wiper arm by pressing the blade home (1).

  4. Install the new blade assembly. Once the replacement is completed, the wiper arm will return to the original position once you operate the wiper one time.
