Windows

Left-hand drive

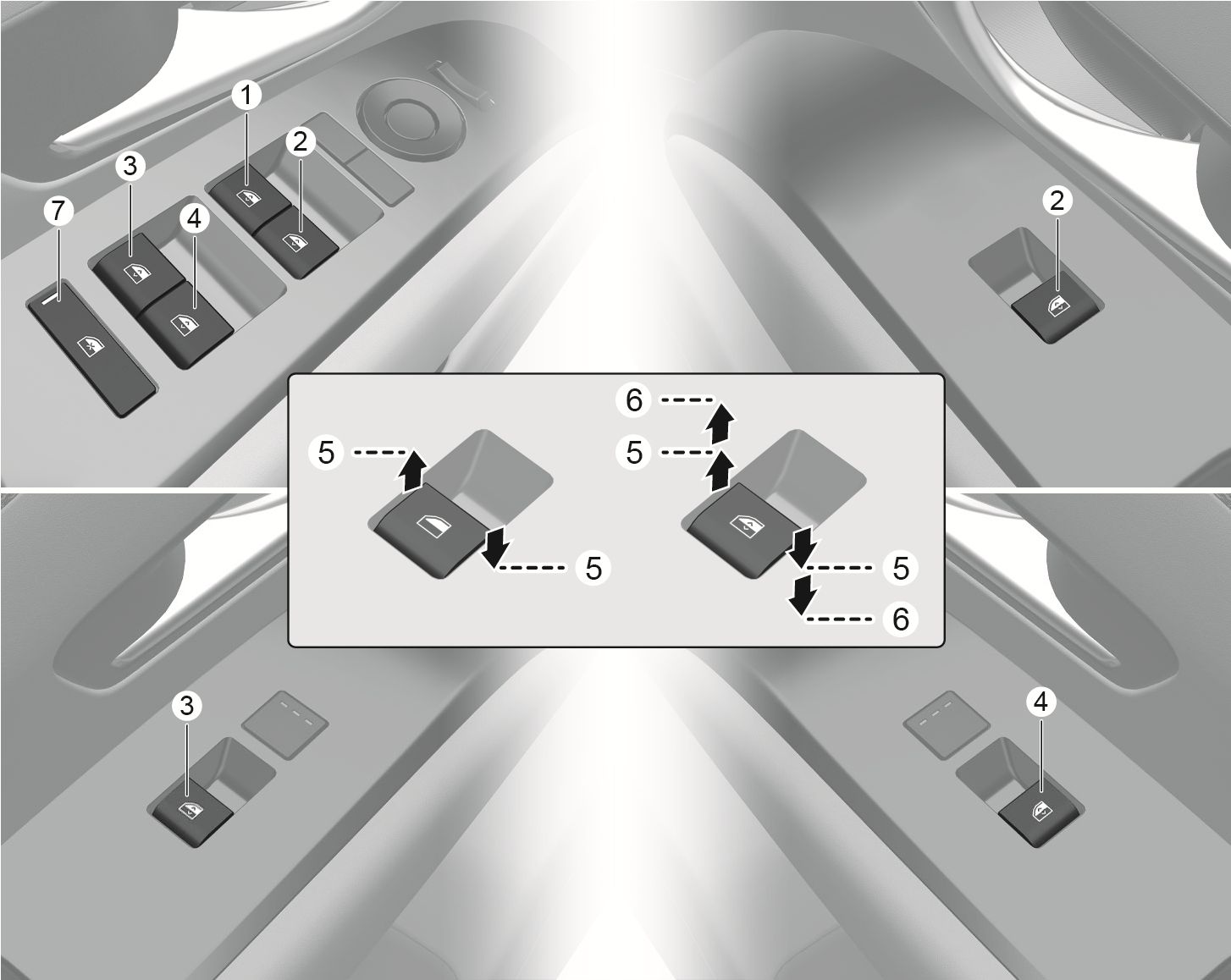

2025 Hyundai Tucson power window switches and operation image. The driver's door panel includes switches (1), (2), (3), (4) for all windows and a power window lock switch (7). Separate views show the front passenger (2) and rear door switches (3, 4). An inset diagram illustrates operation: pressing the switch down (5) opens the window, and pulling it up (5) closes it. Dashed arrows (6) indicate the automatic power window function. This describes the location and method for operating the power windows.

1C_WindowOpenClose

  1. Driver's door power window switch
  2. Front passenger's door power window switch
  3. Rear door (left) power window switch
  4. Rear door (right) power window switch
  5. Window opening and closing
  6. Automatic power window*
  7. Power window lock switch

* : if equipped

Right-hand drive

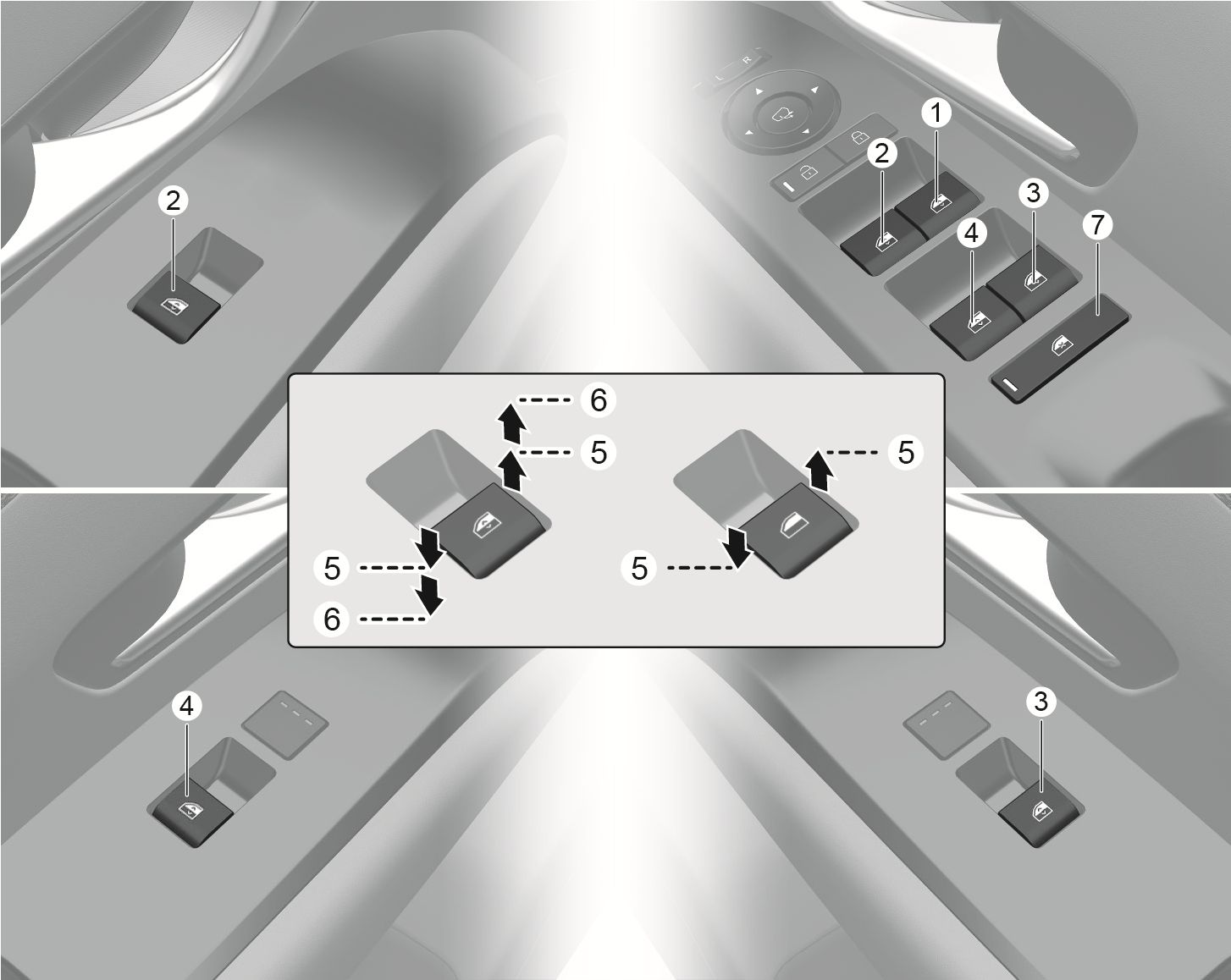

2025 Hyundai Tucson power window switches image. It shows the right-hand drive driver's door panel with switches (1, 2, 3, 4) and lock switch (7). A diagram uses vertical arrows to show pressing or pulling the switch (5) for manual control, and fully pressing or pulling (6) for automatic control. Explains the function of opening and closing windows.

1C_WindowOpenClose_RHD

  1. Driver's door power window switch
  2. Front passenger's door power window switch
  3. Rear door (left) power window switch
  4. Rear door (right) power window switch
  5. Window opening and closing
  6. Automatic power window*
  7. Power window lock switch

* : if equipped
