Fuses

Blade type
2025 Hyundai Tucson blade type fuse inspection image. The left fuse labeled 'O' shows an intact internal element, while the right fuse labeled 'X' shows a broken or melted element. Explains how to visually identify a blown fuse.

2C_FuseType

Cartridge type
2025 Hyundai Tucson Cartridge type fuse image. The image displays a comparison between a normal fuse labeled 'O' with an intact metal element and a blown fuse labeled 'X' with a disconnected or melted element inside the casing. Explains how to visually identify a blown cartridge type fuse.

2C_FuseType_2

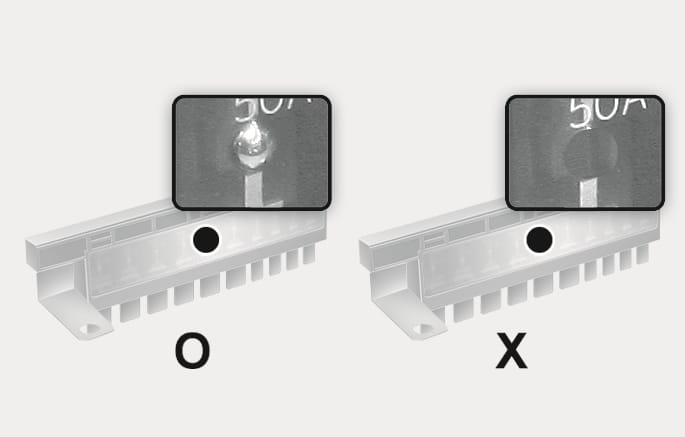

Multi type
2025 Hyundai Tucson Multi type fuse inspection image. The image shows a normal fuse labeled 'O' with an intact element and a blown fuse labeled 'X' with a broken element, highlighted by magnified views. Explains how to visually identify a blown fuse.

2C_FuseType_3

A vehicle's electrical system is protected from electrical overload damage by fuses.

This vehicle has 2 (or 3) fuse panels, one located in the driver's side panel bolster, the other in the engine compartment.

If any of your vehicle's lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse has blown, the element inside the fuse will be melted or broken.

If the electrical system does not work, first check the driver's side fuse panel. Before replacing a blown fuse, turn the engine and all switches off, and then disconnect the negative battery cable. Always replace a blown fuse with one of the same rating.

If the replacement fuse blows, this indicates an electrical problem. Avoid using the system involved. We recommend that you immediately consult an authorized HYUNDAI dealer.

NEVER replace a fuse with anything but another fuse of the same rating.

  • A higher capacity fuse could cause damage and possibly cause a fire.

  • Do not install a wire or aluminum foil instead of the proper fuse - even as a temporary repair. It may cause extensive wiring damage and possibly a fire.

Do not use a screwdriver or any other metal object to remove fuses because it may cause a short circuit and damage the system.
