Automatic climate control system

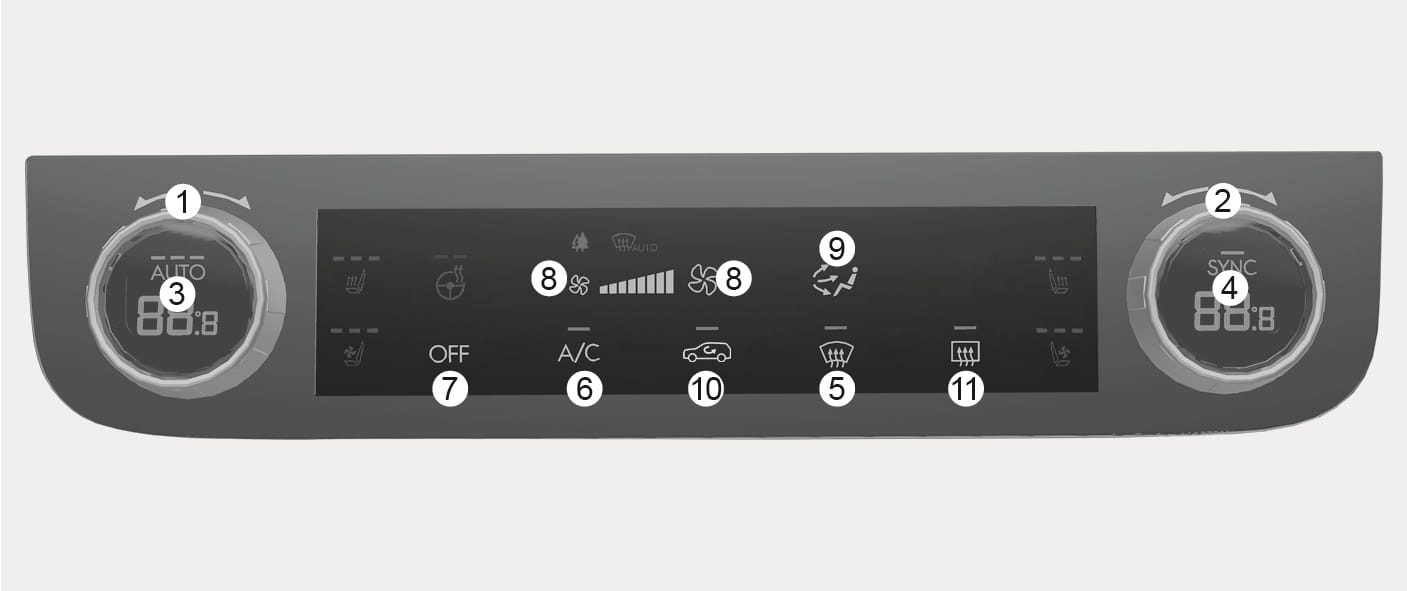

Left-hand drive
2025 Hyundai Tucson automatic climate control panel image. Shows driver's (1) and passenger's (2) temperature knobs with displays (3, 4). Includes buttons for front defroster (5), A/C (6), OFF (7), fan speed (8), mode selection (9), air intake (10), and rear defroster (11). Explains the system's button layout.

1C_Aircon

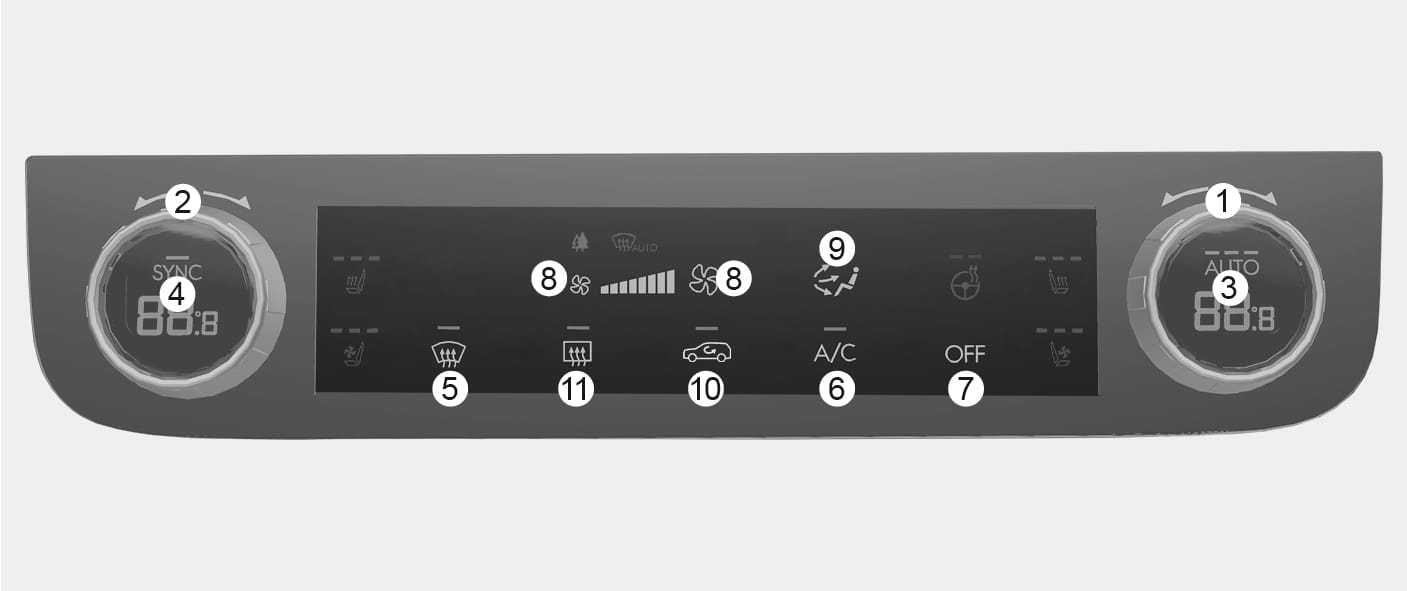

Right-hand drive
2025 Hyundai Tucson right-hand drive climate control image. Features driver's (1) and passenger's (2) dials with curved arrows, buttons for defrosters (5, 11), air intake (10), A/C (6), OFF (7), fan (8), mode (9). Describes the layout.

1C_Aircon_RHD

The climate control system buttons may differ depending on vehicle specification.

  1. Driver's temperature control
  2. Passenger's temperature control
  3. Driver's seat temperature display
  4. Passenger's seat temperature display
  5. Front windshield defroster
  6. A/C (air conditioning)
  7. OFF
  8. Fan speed control
  9. Mode selection
  10. Air intake control
  11. Rear window defroster
