Rear View Monitor settings

Warning methods

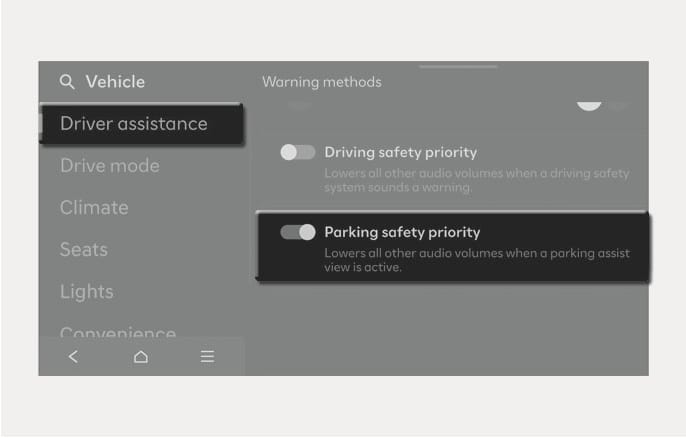

2025 Hyundai Tucson Warning methods settings screen image. The infotainment screen displays the 'Vehicle' menu with 'Driver assistance' selected on the left sidebar. On the right, the 'Parking safety priority' option is highlighted with its toggle switch enabled. The description states, 'Lowers all other audio volumes when a parking assist view is active.' This explains the function of reducing audio volume to prioritize parking safety warnings.

2C_WarningVolumnParkingSafetySetInfo

The Warning Methods can be set with the vehicle on. Select Settings > Vehicle > Driver Assistance > Warning Methods from the settings menu in the infotainment system to change the following settings:

  • Parking safety priority: Lowers all other audio volumes when a parking assist view is active.

  • If you change the Warning methods, the Warning methods of other Driver Assistance systems may change.

  • Warning method will maintain its last setting even if the vehicle is restarted.

  • The setting menu may not be available for your vehicle depending on the vehicle features and specifications.

Camera settings

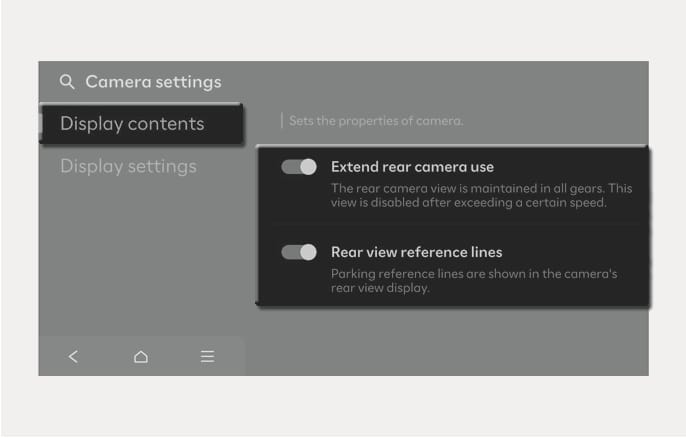

2025 Hyundai Tucson Camera settings screen image. The 'Display contents' menu is highlighted. Options for 'Extend rear camera use' and 'Rear view reference lines' are displayed with toggle switches. Explains the settings menu for configuring the rear view monitor display functions.

2C_RVMParkingDistanceWarningInfo

You can change Rear View Monitor Display contents by touching the setup icon (Ĵ) on the screen while Rear View Monitor is operating, or selecting Driver assistance > Parking safety > Camera settings from the Settings menu in the infotainment system while the engine is on.

  • In the Display contents, you can change settings for Extended rear camera use and Rear view reference lines.

Extended Rear View Monitor

Keeps displaying the rear view when shifting from R (Reverse) to N (Neutral) or D (Drive). When exceeding a certain speed, the rear view stops displaying.

Rear View Parking Lines

If Rear view reference lines is selected, the rear view parking guide lines and rear top view guide lines will be displayed at the rear view area of the infotainment system screen.

  • The horizontal guideline of the Rear View Parking Guidance shows the distance of 0.5 m (20 in.), 1 m (40 in.) and 2.3 m (91 in.) from the vehicle.

  • The horizontal guideline of the Rear Top View Parking Guidance shows the tailgate opening distance and the distance of 1.5 m (60 in.) from the vehicle.
