Cluster display message

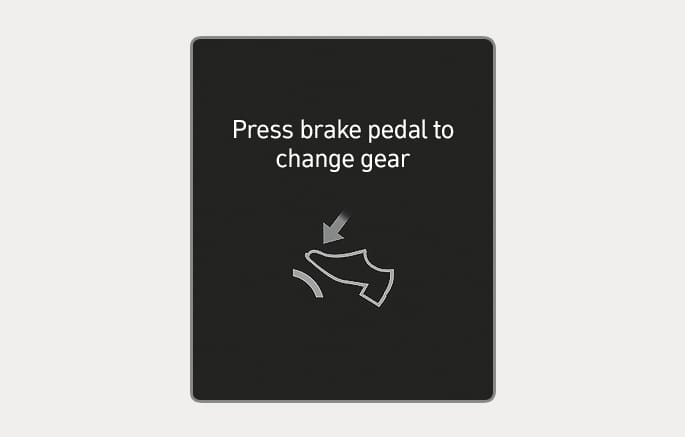

Press brake pedal to change gear
2025 Hyundai Tucson cluster display message image. The screen displays the text 'Press brake pedal to change gear' and an icon of a foot pressing a pedal with a downward arrow. This explains the warning message displayed when the brake pedal is not depressed while shifting the gear.

2C_PressureBreakPadalToChangeGearInfo

This message appears when the brake pedal is not depressed while shifting the gear.

Depress the brake pedal and then shift the gear.

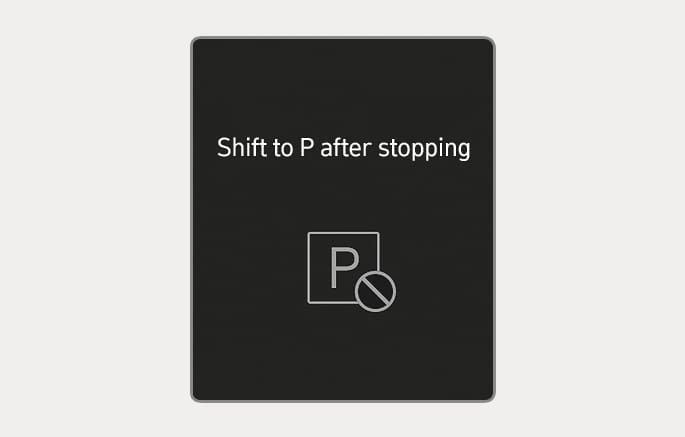

Shift to P after stopping
2025 Hyundai Tucson cluster display message image. The screen displays the text 'Shift to P after stopping' above a square icon containing the letter 'P' with a prohibition symbol. This describes the warning message that appears when attempting to shift to Park while the vehicle is moving.

2C_ShiftToPAfterStoppingInfo

This message appears when the gear is shifted to P (Park) while the vehicle is moving.

Stop the vehicle before shifting to P (Park).

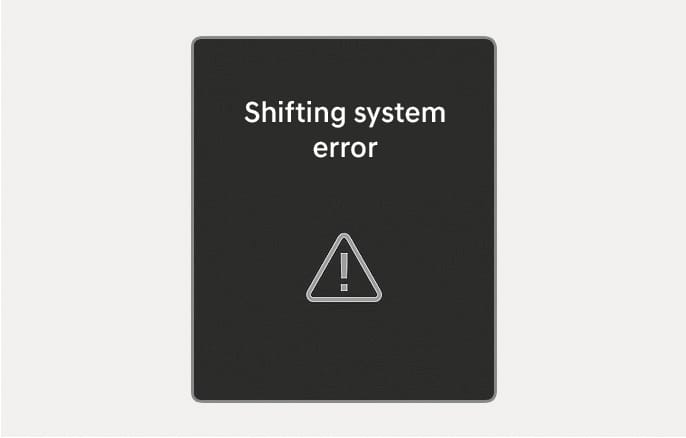

Shifting system error
2025 Hyundai Tucson Shifting system error image. The screen displays 'Shifting system error' and a triangle warning icon with an exclamation mark. This alerts the driver when the transmission or shift dial malfunctions in the P (Park) position.

2C_ShiftSystemMalfuncitonoInfo

This message appears when the transmission or the shift dial does not properly operate in the P (Park) position.

We recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

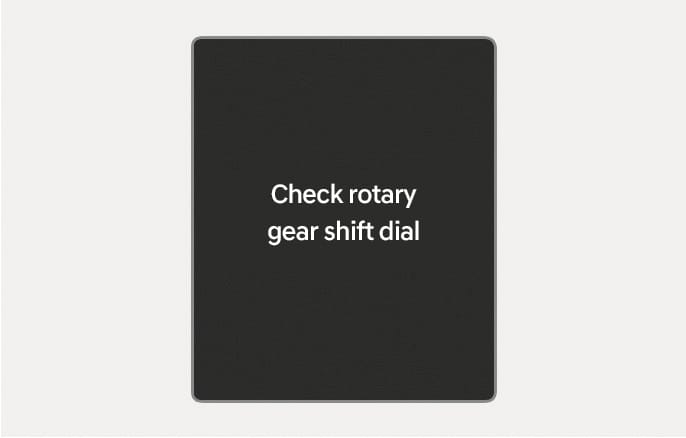

Check shift controls
2025 Hyundai Tucson cluster display message image. The screen displays the text 'Check rotary gear shift dial' in white on a dark background. Explains the function of alerting the driver when a malfunction occurs with the rotary gear shift dial.

2C_CheckShiftButtonInfo

This message appears when there is a malfunction with the rotary gear shift dial.

We recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

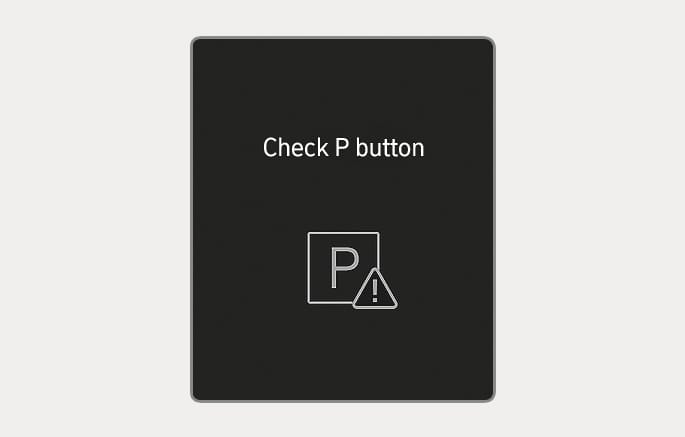

Check P button
2025 Hyundai Tucson Check P button warning message image. The cluster screen displays the text 'Check P button' above a square icon containing the letter 'P' with a warning triangle and exclamation mark. This explains the notification shown when there is a problem with the P button.

2C_CheckShiftPButtonInfo

This message appears when there is a problem with the P button.

We recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

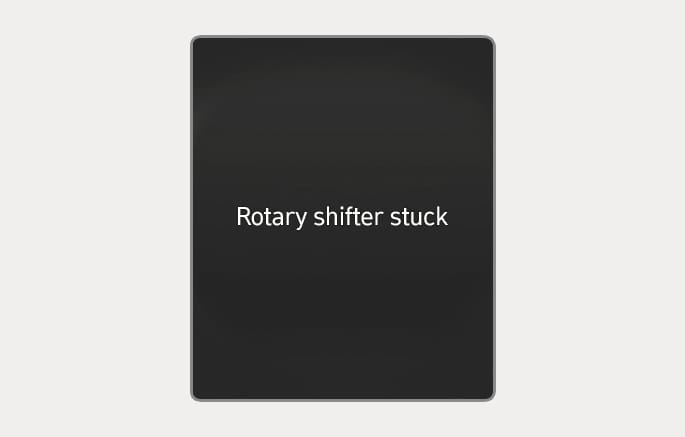

Rotary shifter stuck
2025 Hyundai Tucson cluster display message image. The text 'Rotary shifter stuck' is displayed in white on a dark background. Explains the warning message displayed when the rotary gear shift dial does not return to its normal position after operation.

2C_RotaryShifterStuckInfo

This message appears when the rotary gear shift dial does not return back to it’s normal position after rotating it.

We recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

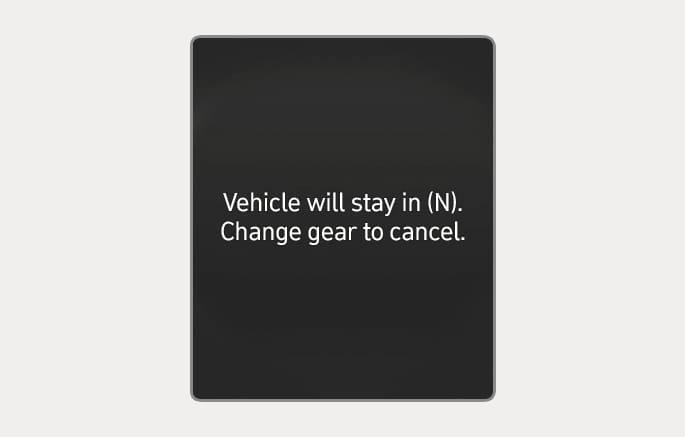

Vehicle will stay in (N). Change gear to cancel
2025 Hyundai Tucson cluster display message image. The screen shows the text 'Vehicle will stay in (N). Change gear to cancel.' in white letters on a black background. It explains the function indicating the gear remains in Neutral (N) after the engine is turned off.

2C_StayNAfterVehicleOffInfo

This message appears when pushing the “OK” button on the steering wheel after the message “Press and hold the OK button on the steering wheel to stay in Neutral” appears on the cluster display. The gear stays in N (Neutral) position after turning off the engine.

Transmission overheated warning

Transmission Hot! Park with engine on

2025 Hyundai Tucson cluster display message image. The screen displays the text 'Transmission Hot! Park with engine on' above a gear icon with a thermometer inside. It indicates the transmission is overheated and instructs the driver to park with the engine on.

2C_ShiftOverheatStopVehicleInfo

Repeated sudden acceleration and quick start may overheat the transmission. If the transmission is overheated, the self protection mode alarms the driver with an audible sound warning message.

Move the vehicle to a safe location and shift the gear to P (Park), and stop the vehicle with the engine on. Wait until the transmission is sufficiently cooled down.

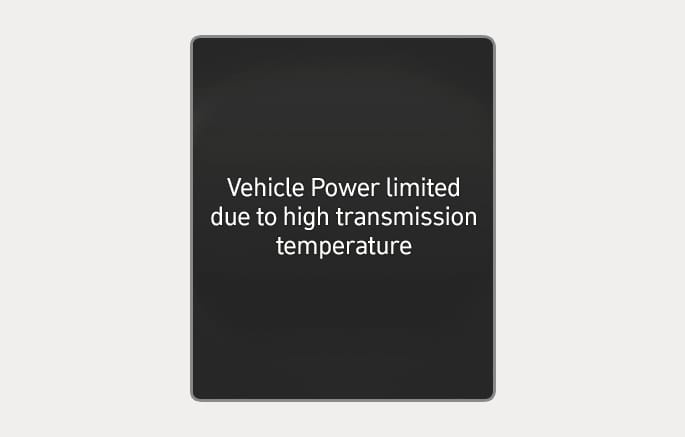

Vehicle Power limited due to high transmission temperature

2025 Hyundai Tucson cluster display warning message image. The screen displays the text 'Vehicle Power limited due to high transmission temperature' in white letters on a black background. This explains the warning indicating that the vehicle's power output is restricted due to transmission overheating.

2C_ShiftOverheatPowerLimittedInfo

If you continue to drive with overheated transmission, the above warning message appears and self-protection mode restricts the power output of the vehicle.

  • Move the vehicle to a safe location and shift the gear to P (Park), and stop the vehicle with the engine on. Wait until the transmission is sufficiently cooled down.

  • If the above message is continuously displayed, we recommend that you contact an authorized HYUNDAI dealer.

Transmission cooled and safe to drive

2025 Hyundai Tucson cluster display message image. The screen displays the text 'Trans cooled. Resume driving.' above a white gear icon containing a thermometer. Explains the notification indicating that the transmission has cooled down and it is safe to resume driving.

2C_ShiftOverheatCanDriveInfo

This message appears when the vehicle is safe to drive.
