Forward Collision-Avoidance Assist (FCA) (Front view camera only)

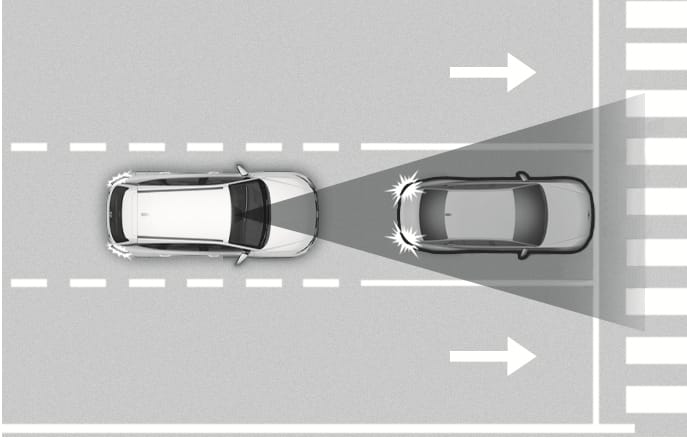

2025 Hyundai Tucson Forward Collision-Avoidance Assist operation image. A top-down view shows the subject vehicle projecting a cone-shaped detection field from the front camera onto a vehicle ahead, highlighted with white starburst markers. Explains the function of detecting the vehicle ahead to help prevent collisions.

2C_FCABasicFunction_Frontcamera

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a powered two-wheeler, pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message and warning and apply emergency braking.

Detecting sensor
2025 Hyundai Tucson front view camera location image. A high-angle view of the vehicle highlights the detecting sensor position. The number (1) points to the front view camera located at the top center of the windshield. Explains the location of the sensor for the Forward Collision-Avoidance Assist system.

2C_FrontViewCamera_2

  1. Front view camera

Refer to the picture above for the detailed location of the detecting sensor.

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensor have been replaced or repaired, we recommend that you have your vehicle inspected by an authorized HYUNDAI dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Pay extreme caution to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper, mirror) over the dashboard.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.
