Outside rearview mirrors

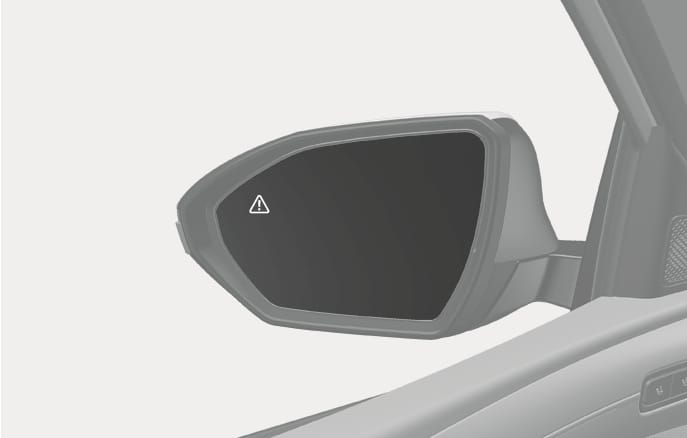

2025 Hyundai Tucson outside rearview mirror image. The image displays the driver's side exterior mirror with a triangular warning icon containing an exclamation mark on the mirror glass. This illustrates the design of the outside rearview mirror and the position of the safety warning indicator.

2C_SideViewMirror

Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors. The mirrors can be adjusted with the mirror adjustment control switch. Adjust the outside rearview mirrors to your desired position before driving. The outside rearview mirrors can be folded to help prevent damage when going through an automatic car wash or when passing through a narrow street.

The left and right outside rearview mirrors are convex.

Objects in mirror are closer than they appear.

Use the outside rearview mirror or turn your head and look to determine the actual distance of other vehicles prior to changing lanes.

Do not adjust or fold the outside rearview mirrors while driving. This may cause loss of vehicle control resulting in an accident.

  • Do not scrape ice off the mirror face; this may damage the surface of the glass.

  • If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved de-icer (not radiator antifreeze) spray, or a sponge or soft cloth with very warm water, or move the vehicle to a warm place and allow the ice to melt.

  • Do not clean the mirror with harsh abrasives, fuel or other petroleum based cleaning products.

Adjusting the rearview mirrors

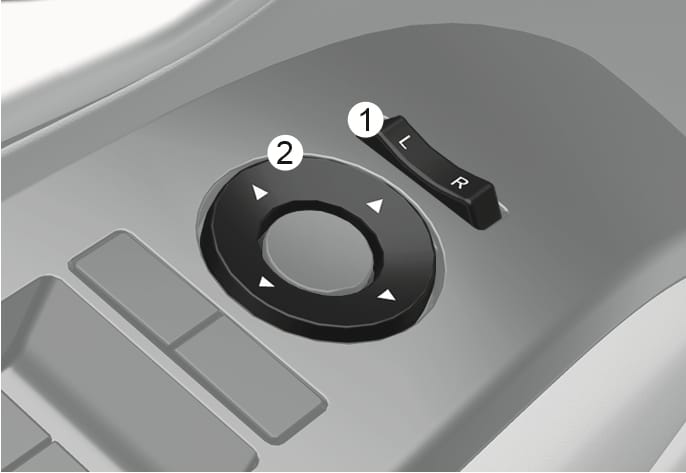

2025 Hyundai Tucson side view mirror adjustment control image. The image displays a selection lever (1) with 'L' and 'R' markings and a circular adjustment button (2) featuring four directional arrows. This explains the function of selecting the mirror and adjusting its angle using the control switch.

2C_AdjustSideViewMirror

  1. Move the lever (1) either to the L (left side) or R (right side) to select the rearview mirror you would like to adjust.

  2. Use the mirror adjustment control (2) to position the selected mirror up, down, left or right.

  3. After adjustment, move the lever (1) to the middle to prevent inadvertent adjustment.

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, because this can damage the motor.

  • Do not attempt to adjust the rearview mirrors by hand, because this can damage the motor.

Folding the outside rearview mirror

Folding button

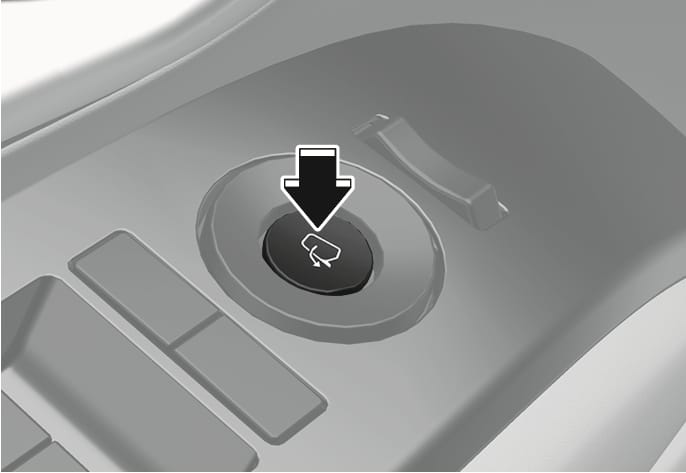

2025 Hyundai Tucson side view mirror folding button image. A black arrow points downwards to a circular button featuring a mirror icon with a curved arrow. Explains the function of folding or unfolding the outside rearview mirrors by pressing the button.

2C_FoldSideViewMirror

The outside rearview mirrors can be folded or unfolded by pressing the button.

Infotainment system setting

  • Enable on door unlock

    If Settings > Vehicle > Lights > Welcome mirror/light > On door unlock is selected from the Settings menu in the infotainment system:

    • The mirror folds or unfolds when the door is locked or unlocked using the smart key.

  • Enable on driver approach

    If Settings > Vehicle > Lights > Welcome mirror/light > On driver approach is selected from the Settings menu in the infotainment system, the mirror unfolds when the vehicle is approached with the smart key in possession.

  • The infotainment system may change after software updates. For more information, refer to the manual provided in the infotainment system and the quick reference guide.

  • For your safety, the outside rearview mirrors cannot be folded automatically when driving at a speed of 15 km/h (9 mph) or faster.

To prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary when the engine is not running.

Do not fold the electric type outside rearview mirror by hand. It may cause motor failure.

Reverse parking aid

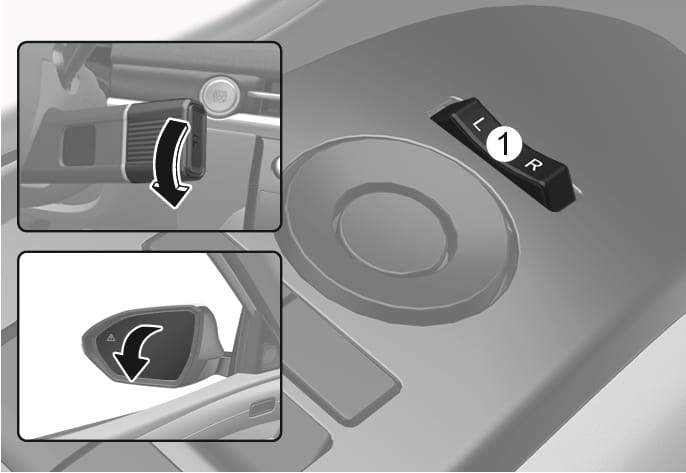

2025 Hyundai Tucson Reverse parking aid image. Shows the gear shift lever with a curved arrow indicating shifting to Reverse, a side mirror with a downward arrow, and the mirror switch (1) set to L or R. Explains the function where mirrors tilt down to aid parking when reversing with the switch selected.

2C_AutoAdjustSideViewMirrorWhenParking

When the gear is shifted to the R (Reverse) position, the outside rear view mirrors rotate downwards to aid with driving in reverse.

The state of the outside rear view mirror switch (1) determines whether or not the mirrors move.

How it works

  • Left/Right : When the switch is pressed to L or R, both outside rear view mirrors move.

  • Neutral : When both L or R is not pressed, the outside rear view mirrors does not move.

The outside rear view mirrors automatically revert to their original positions if any of the following occur:

  • The Engine Start/Stop button is moved to either the OFF position or the ACC position.

  • The gear is shifted to any position except R (Reverse).

  • The outside rear view mirror adjustment button is not selected.

Reverse parking aid user settings mode

You may change the angle of the outside rear view mirror if it is difficult to see the rearview with the basic downward mirror angle provided when reversing.

When the vehicle is first delivered, the set downward angle of the left and right outside rear view mirror are different to ensure driver visibility.

  1. Make sure the vehicle is stopped.

  2. Depress the brake pedal and shift the gear to R (Reverse). When L or R switch is pressed, both outside rear view mirrors move downward to the basic set position.

  3. Press the L or R switch to select the outside rear view mirror you want to adjust. Then press "ƀ, Ɓ, Ƃ, ƃ" switch to adjust the outside rear view mirror to the desired angle.

  4. After adjusting the angle to save the adjusted outside rear view mirror angle, shift the gear to another position other than R (Reverse), or change the L and R switch to the neutral position (L and R switch is not pressed).

  5. Set the other outside rear view mirror following the above procedure 1 to 4.

Resetting reverse parking aid user settings mode

To change the outside rear view mirror angle back to the basic angle, shift the gear to R (Reverse), and adjust the mirror angle higher than when the gear is in P (Park), N (Neutral) and D (Drive).

When changing the angle of both outside rear view mirrors, it is recommended to change the angle one side at a time following the procedure 1 to 4.
