Why didn't my air bag go off in a collision?

There are certain types of accidents in which the air bag would not be expected to provide additional protection. These include rear impacts, second or third collisions in multiple impact accidents, as well as low speed impacts. Damage to the vehicle indicates a collision energy absorption, and is not an indicator of whether or not an air bag should have inflated.

Air bag collision sensors

To reduce the risk of an air bag deploying unexpectedly and causing serious injury or death:

  • Do not hit or allow any objects to impact the locations where air bags or sensors are installed.

  • Do not perform maintenance on or around the air bag sensors. If the location or angle of the sensors is altered, the air bags may deploy when they should not or may not deploy when they should.

  • Installing bumper guards with non-genuine Hyundai or non-equivalent parts may adversely affect the collision and airbag deployment performance.

    To ensure correct function of the airbag system we recommend to replace the bumper with genuine Hyundai part or the equivalent (of the genuine part) specified for your vehicle.

  • Press the Engine Start/Stop button to the OFF or ACC position and wait for 3 minutes when the vehicle is being towed to prevent inadvertent air bag deployment.

  • We recommend that all air bag repairs are conducted by an authorized HYUNDAI dealer.

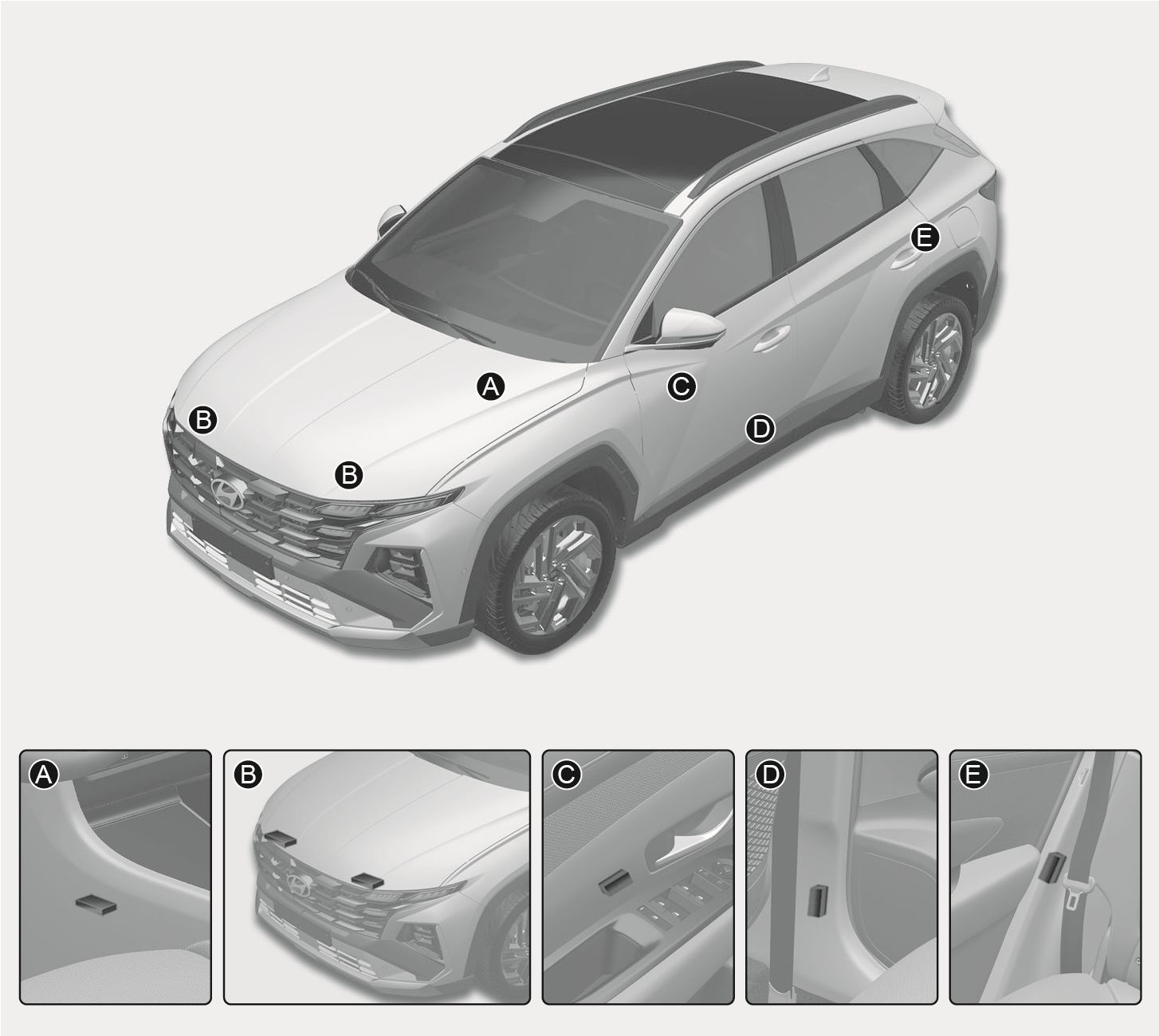

2025 Hyundai Tucson airbag collision sensors image. Detailed views identify the SRS control module (A), front impact sensors (B), and side impact sensors located in the front door (C), B-pillar (D), and C-pillar (E). Explains the airbag system sensor layout.

1C_AirbagSensorOverview

  1. SRS control module/Rollover sensor (if equipped)
  2. Front impact sensor
  3. Side impact sensor (Pressure): Front door (if equipped)
  4. Side impact sensor (Acceleration): B-Pillar (if equipped)
  5. Side impact sensor (Acceleration): C-Pillar (if equipped)
Air bag inflation conditions

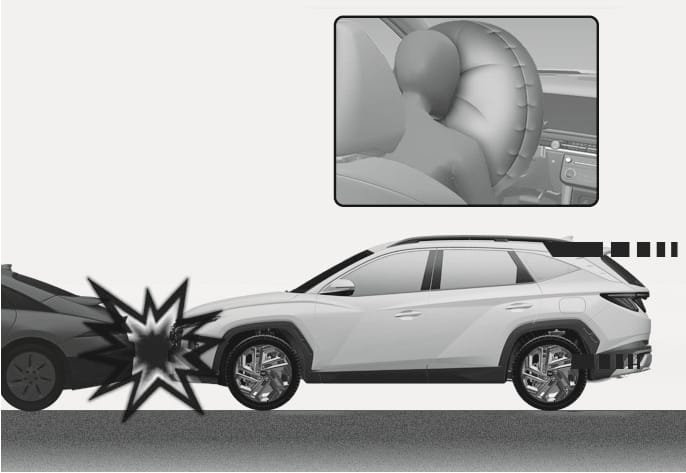

2025 Hyundai Tucson front airbag deployment image. Shows a white SUV in a frontal collision with an impact graphic and an inset of the inflated airbag. Explains that front airbags inflate in frontal collisions based on severity.

2C_AirbagOperatingConditionFrontAirbag

Front air bags

Front air bags are designed to inflate in a frontal collision depending on the severity of impact of the front collision.

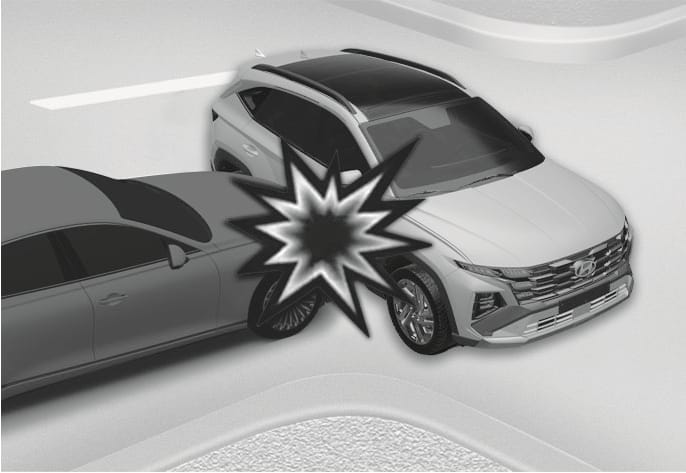

2025 Hyundai Tucson side airbag operating condition image. A dark vehicle is colliding with the side of the white SUV, with a starburst graphic highlighting the impact point. Explains the scenario where side and curtain air bags are designed to inflate upon detecting a side impact.

2C_AirbagOperatingConditionSideAirbag

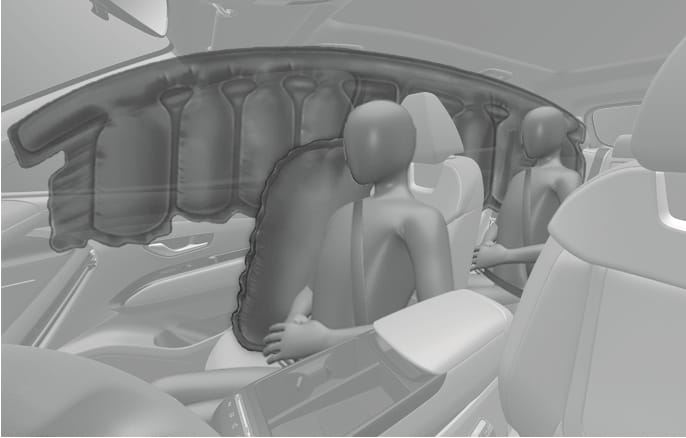

2025 Hyundai Tucson side and curtain airbag deployment image. The image shows the curtain airbag covering the side windows and the side airbag deployed from the front seat next to the occupants. This explains the function of protecting passengers during a side collision.

2C_SideCurtainAirbagDeployment

Side and curtain air bags

Side and curtain air bags are designed to inflate when an impact is detected by side collision sensors depending on the severity from a side impact collision.

Although the driver's and front passenger's air bags are designed to inflate in frontal collisions, they also may inflate in other types of collisions if the front impact sensors detect a sufficient impact. Side and curtain air bags are designed to inflate in side impact collisions, but they may inflate in other collisions if the side impact sensors detect a sufficient impact.

Also, the side and curtain air bags are designed to inflate when a rollover is detected by a rollover sensor. (if equipped with rollover sensor)

If the vehicle chassis is impacted by bumps or objects on unimproved roads, the air bags may deploy. Drive carefully on unimproved roads or on surfaces not designed for vehicle traffic to prevent unintended air bag deployment.

Air bag non-inflation conditions
2025 Hyundai Tucson Air bag non-inflation condition image. A dark vehicle strikes the rear of the white SUV, marked by a starburst. An inset shows the driver with the air bag undeployed. This illustrates a collision scenario where the air bag is not designed to inflate.

2C_AirbagNonOperatingConditionMinorCrash

In certain low-speed collisions the air bags may not deploy. The air bags are designed not to deploy in such cases because they may not provide benefits beyond the protection of the seat belts.

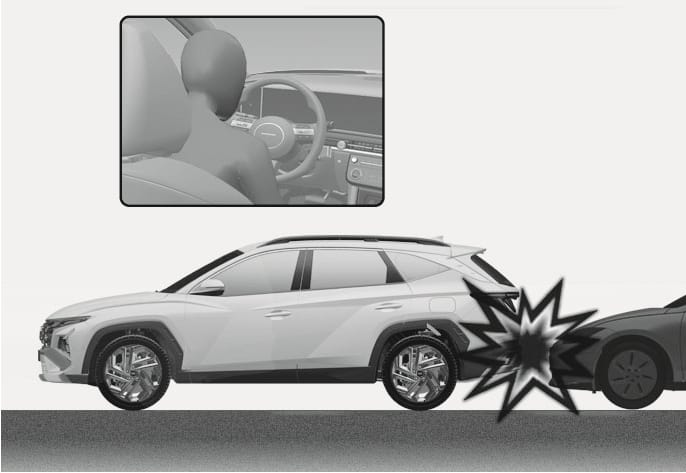

2025 Hyundai Tucson airbag non-inflation in rear crash image. A white SUV is struck from behind, indicated by an impact graphic. An inset shows the driver with the airbag undeployed. This illustrates that front airbags do not inflate in rear collisions.

2C_AirbagNonOperatingConditionRearCrash

Front air bags are not designed to inflate in rear collisions, because occupants are moved backward by the force of the impact. In this case, inflated air bags would not provide any additional benefit.

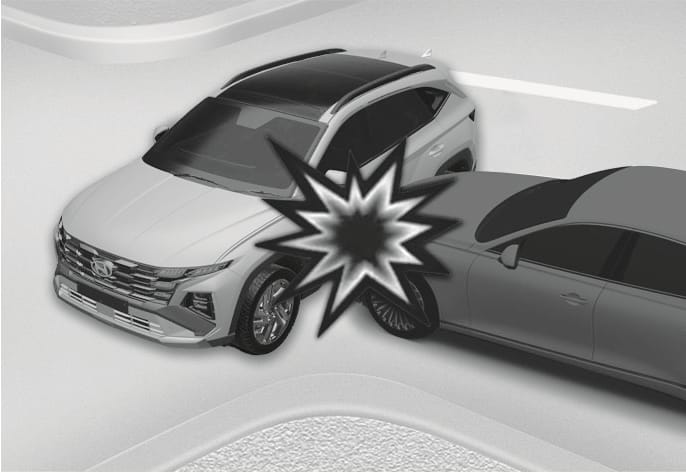

2025 Hyundai Tucson side crash scenario image. A grey sedan collides with the front side of a white SUV, highlighted by a starburst graphic. Illustrates why front air bags may not inflate in side impact collisions.

2C_AirbagNonOperatingConditionSideCrash

Front air bags may not inflate in side impact collisions, because occupants move in the direction of the collision, and thus in side impacts, front air bag deployment would not provide additional occupant protection.

However, side and curtain air bags may inflate depending on the severity of impact.

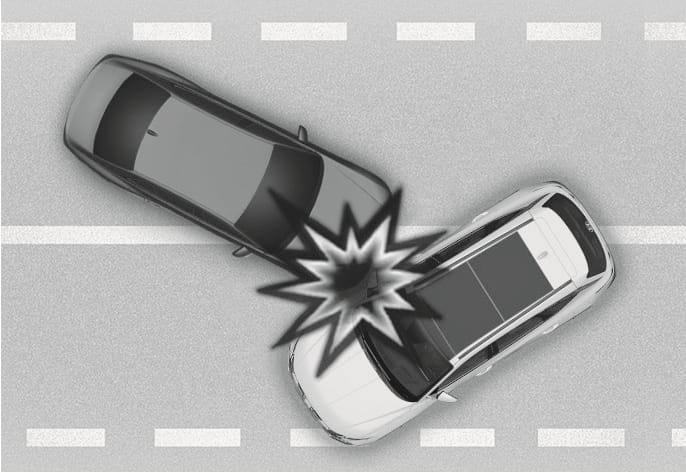

2025 Hyundai Tucson airbag non-inflation condition image. A top-down view shows a grey vehicle colliding with a white vehicle at an oblique angle, marked by a starburst symbol. Explains that airbags may not deploy in angled collisions where the force direction limits the airbag's effectiveness.

2C_AirbagNonOperatingConditionSidlingCrash

In an angled collision, the force of impact may direct the occupants in a direction where the air bags would not be able to provide any additional benefit, and thus the sensors may not deploy any air bags.

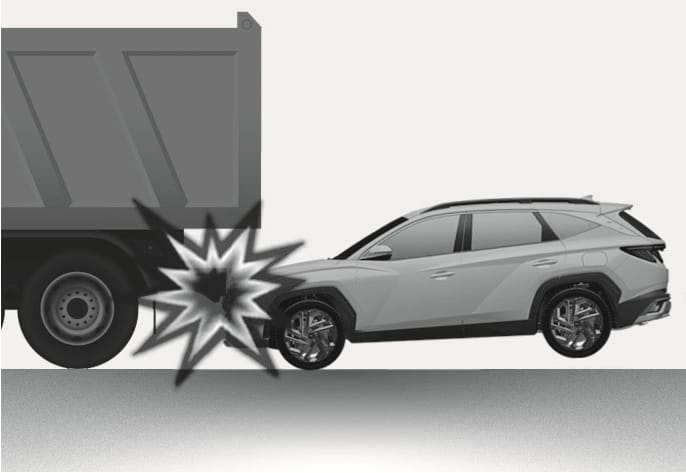

2025 Hyundai Tucson airbag non-inflation condition image. The illustration shows the vehicle's front end sliding under a truck's rear bed. It explains an underride situation where airbags may not deploy as the sensors detect reduced deceleration forces.

2C_AirbagNonOperatingConditionTruckCrash

Just before impact, drivers often brake heavily. Such heavy braking lowers the front portion of the vehicle causing it to "ride" under a vehicle with a higher ground clearance. Air bags may not inflate in this "underride" situation because deceleration forces that are detected by sensors may be significantly reduced by such "underride" collisions.

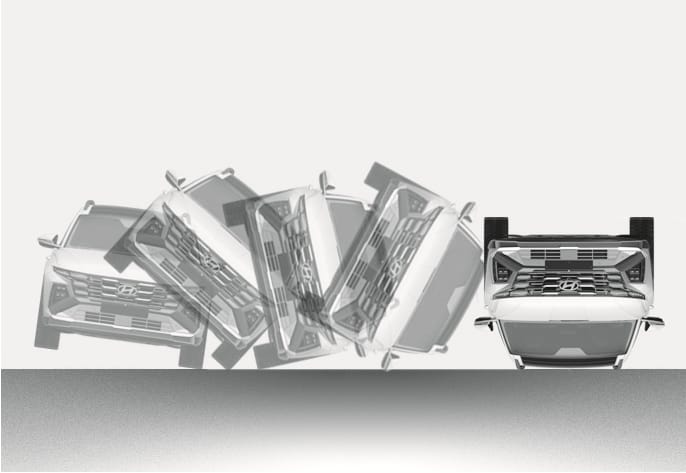

2025 Hyundai Tucson rollover crash scenario image. The image depicts a sequence of the vehicle rolling over sideways, transitioning from a tilted position to resting upside down on its roof. Illustrates a condition where front airbags may not inflate.

2C_AirbagNonOperatingConditionTurnoverCrash

Front air bags may not inflate in rollover accidents because front air bag deployment would not provide additional occupant protection.

  • Vehicles equipped with rollover sensor The side and curtain air bags may inflate in a rollover situation, when it is detected by the rollover sensor.

  • Vehicles not equipped with rollover sensor

    The side and/or curtain air bags may inflate when the vehicle is rolled over by a side impact collision, if the vehicle is equipped with side and/or curtain air bags.

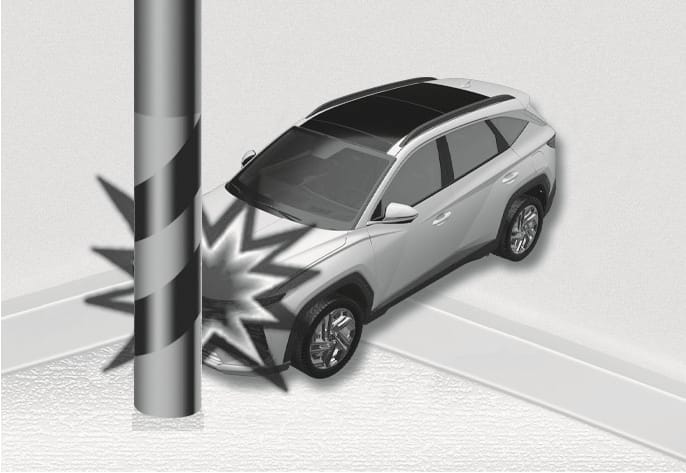

2025 Hyundai Tucson airbag non-inflation condition image. The vehicle is shown colliding with a vertical pole, with a starburst graphic at the front indicating a concentrated point of impact. Explains the condition where airbags may not inflate when the vehicle collides with objects like utility poles or trees.

2C_AirbagNonOperatingConditionPollCrash

Air bags may not inflate if the vehicle collides with objects such as utility poles or trees, where the point of impact is concentrated and the collision energy is absorbed by the vehicle structure.
