Downhill Brake Control (DBC)

Type A

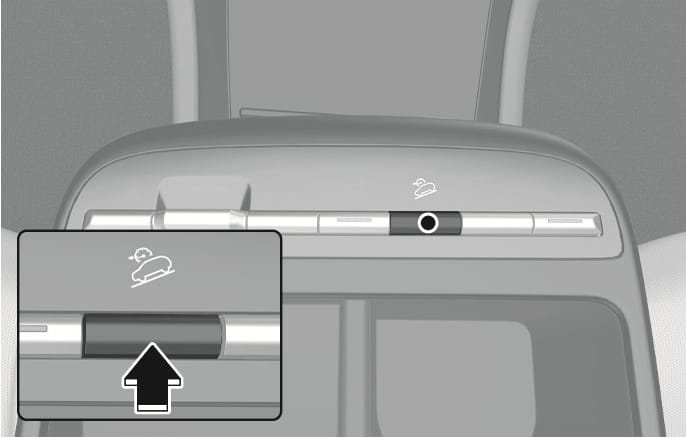

2025 Hyundai Tucson Downhill Brake Control button image. The image displays the button on the center console below the car-on-slope icon. An inset view shows a black arrow pointing upward to indicate pressing the silver button. This illustrates the operation to turn the Downhill Brake Control system on or off.

2C_DownhillBrakeControl

Type B

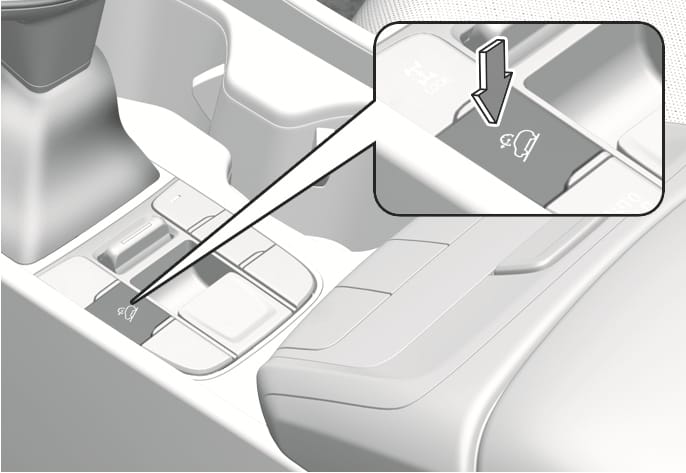

2025 Hyundai Tucson Downhill Brake Control button image. The image displays the Type B center console layout with a close-up of the button featuring a car on a slope icon. A downward arrow indicates pressing the button. This explains the function of turning the Downhill Brake Control system on or off.

2C_DownhillBrakeControl_2

Downhill Brake Control assists the driver to descend down a steep hill without having to depress the brake pedal.

The system automatically applies the brakes to maintain vehicle speed below a certain speed and allows the driver to concentrate on steering the vehicle down hill.

The system is turned off whenever the engine is turned off.

Press the button to turn on the system and press the button again to turn it off.

System operation

Mode

Indicator

Description

Standby

R

Green light on

Press the Downhill Brake Control button when vehicle speed is under 60 km/h (37 mph). Downhill Brake Control will turn on and enter the standby mode. The system does not turn on if vehicle speed is over 60 km/h (37 mph).

Activated

R

Green light blink

In the standby mode, Downhill Brake Control will activate under the following conditions:

  • The hill is steep enough.

  • The brake pedal or accelerator pedal is not depressed.

Within the activation speed range 4-40 km/h (2-25 mph), the driver can control the vehicle speed by depressing the brake pedal or accelerator pedal.

Deactivated

R

Green light off

Downhill Brake Control will turn off under the following conditions:

  • The Downhill Brake Control button is pressed again.

  • Vehicle speed is over 60 km/h (37 mph).

R

Green light on

Downhill Brake Control will be deactivated but maintain the standby mode under the following conditions:

  • The hill is not steep enough.

  • Vehicle speed is between 40-60 km/h (25-37 mph).

System malfunction

R

Yellow light on

The yellow warning light illuminates when the system may have malfunctioned or may not work properly during activation. If this occurs, Downhill Brake Control is deactivated. We recommend that the system be inspected by an authorized HYUNDAI dealer as soon as possible.

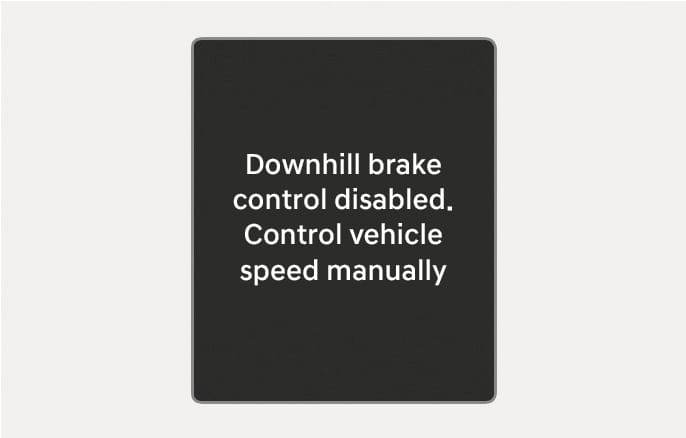

2025 Hyundai Tucson Downhill Brake Control warning image. The instrument cluster displays the text 'Downhill brake control disabled. Control vehicle speed manually'. This explains the warning message that appears when the system is not working properly.

2C_DBCDisabledInfo

Downhill Brake Control disabled. Control vehicle speed (manually)

When Downhill Brake Control is not working properly this warning message will appear on the cluster display and you will hear a warning sound. If this occurs, control vehicle speed by depressing the brake pedal.

Always turn off Downhill Brake Control on normal roads. The system might activate inadvertently from the standby mode when driving through speed bumps or making sharp curves.

  • Downhill Brake Control may not deactivate on steep inclines even though the brake pedal or accelerator pedal is depressed.

  • Downhill Brake Control may not always maintain vehicle speed at a certain speed.

  • Downhill Brake Control does not operate when:

    • The gear is in P (Park).

    • ESC is activated.

  • Noise or vibration may occur from the brakes when Downhill Brake Control is activated.

  • The rear stop light comes on when Downhill Brake Control is activated.
