Instrument panel fuse replacement

Driver's side

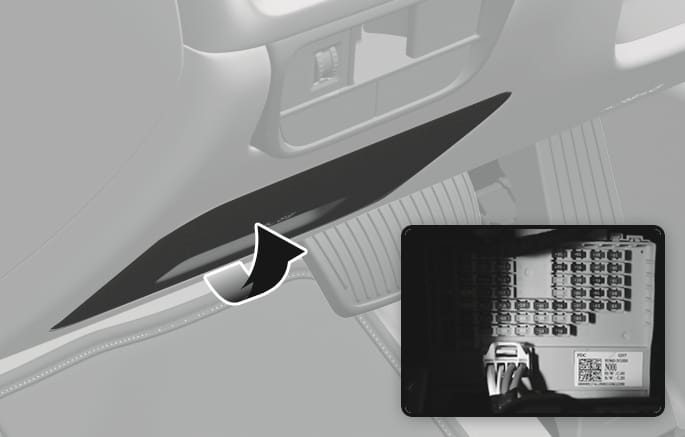

2025 Hyundai Tucson instrument panel fuse replacement image. A curved black arrow indicates the direction to pull and open the fuse panel cover on the driver's side lower dashboard. An inset image details the internal fuse layout. Explains how to access the fuse panel for maintenance.

2C_InstrumentPanelFuseReplacement

  1. Turn the vehicle off.

  2. Turn all other switches off.

  3. Open the fuse panel cover.

  4. Refer to the label on the inside of the fuse panel cover to locate the suspected fuse location.

    Multi type

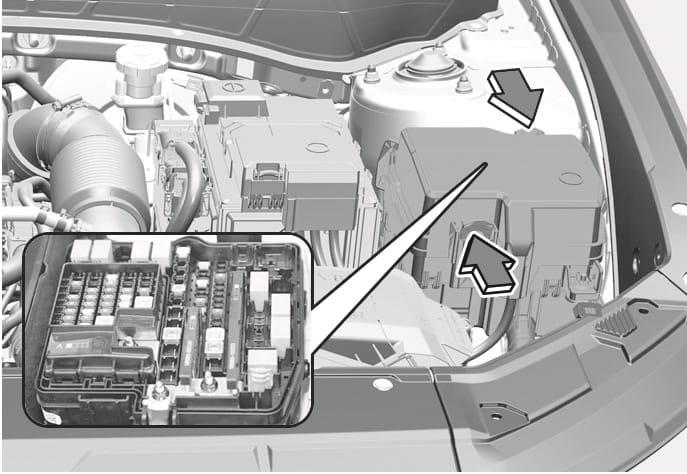

    2025 Hyundai Tucson engine compartment fuse panel image. Arrows point to the locking tabs on the cover, indicating the direction to press for removal. An inset close-up displays the internal fuse arrangement. Describes the function of accessing the engine compartment fuse panel.

    2C_EngineRoomFuseReplacement_2

  5. Pull the suspected fuse straight out. Use the removal tool provided in the engine compartment fuses panel cover.

  6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in the instrument panel fuse panels (or in the engine compartment fuse panel).

  7. Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we recommend that you consult an authorized HYUNDAI dealer.

In an emergency, if you do not have a spare fuse, use a fuse of the same rating from a circuit you may not need for operating the vehicle, such as the cigarette lighter fuse.

If the headlights or other electrical components do not work and the fuses are undamaged, check the fuse panel in the engine compartment. If a fuse is blown, it must be replaced with the same rating.
