Jack and tools

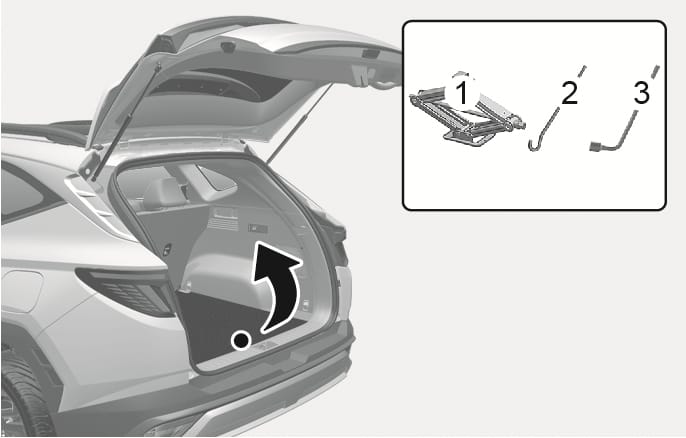

2025 Hyundai Tucson Jack and tools location image. A curved black arrow indicates lifting the luggage box cover in the open cargo area. An inset shows the (1) Jack, (2) Jack handle, and (3) Wheel nut wrench. Explains where the emergency tools are stored.

2C_SpareTireReplacementOverview

  1. Jack
  2. Jack handle
  3. Wheel nut wrench

The jack, jack handle, and wheel nut wrench are stored in the cargo area under the luggage box cover.

The jack is provided for emergency tire changing only.

Type A

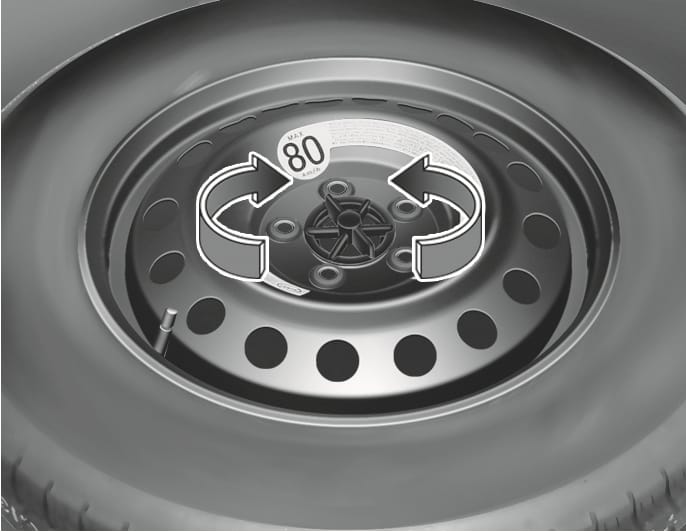

2025 Hyundai Tucson spare tire hold-down bolt image. Curved arrows indicate turning the central winged hold-down bolt counter-clockwise. A 'MAX 80 km/h' sticker is visible on the wheel. Explains the process of loosening the bolt to remove the spare tire.

2C_SpareTireReplacementPrecedure_1

Type B

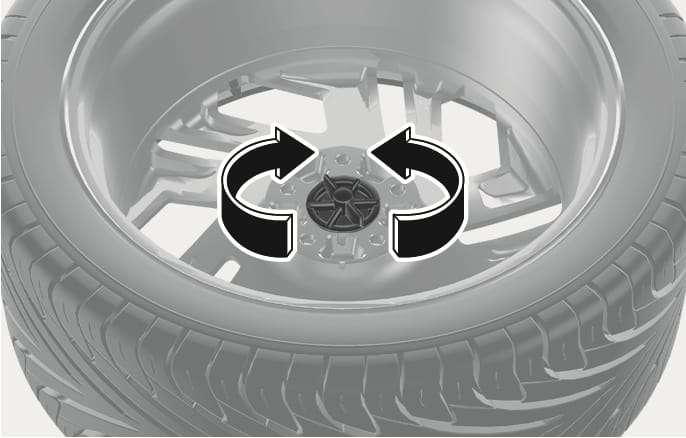

2025 Hyundai Tucson Type B spare tire hold-down bolt image. Large black curved arrows with white outlines surround the central wing bolt, indicating rotation. Explains the operation of turning the bolt to release or secure the spare tire.

2C_SpareTireReplacementPrecedure_1_TypeB

Turn the winged hold down bolt counterclockwise to remove the spare tire.

Store the spare tire in the same compartment by turning the winged hold down bolt clockwise.

To prevent the spare tire and tools from "rattling", store them in their proper location.

Type A

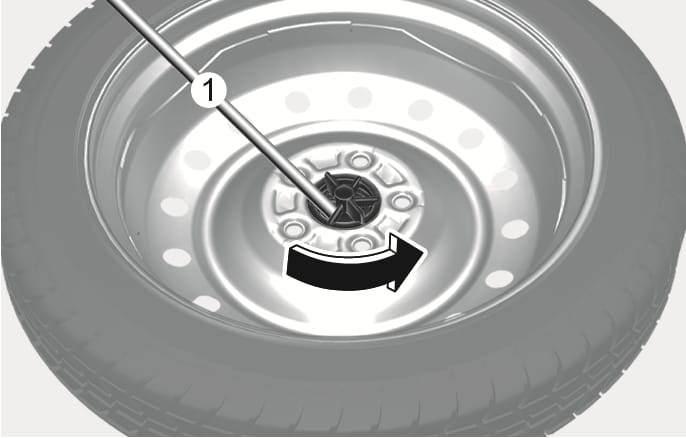

2025 Hyundai Tucson spare tire replacement Type A image. The jack handle (1) is inserted into the tire hold-down wing bolt at the center of the spare tire, with a black curved arrow indicating counterclockwise rotation. Explains the function of loosening the tire hold-down wing bolt using the jack handle.

2C_SpareTireReplacementPrecedure_1_TypeA

Type B

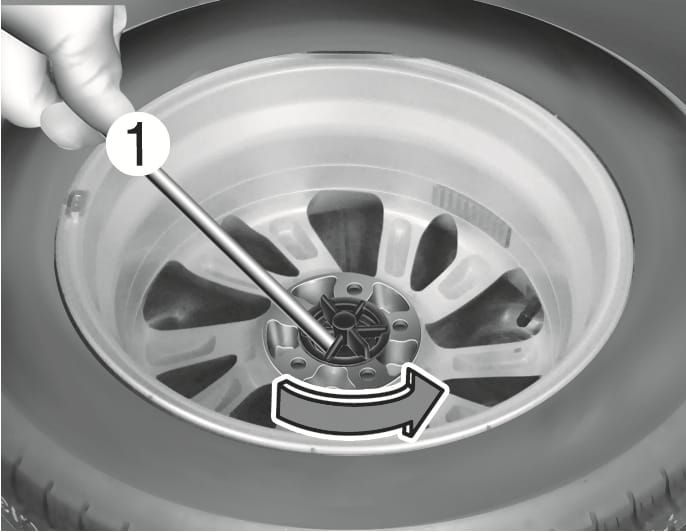

2025 Hyundai Tucson spare tire replacement image. A hand inserts the jack handle (1) into the tire hold-down wing bolt, with a curved arrow indicating counterclockwise rotation. Explains the function of loosening the bolt using the jack handle.

2C_SpareTireReplacementPrecedure_2

If it is hard to loosen the tire hold down wing bolt by hand, you can loosen it easily using the jack handle.

  1. Put the jack handle (1) inside of the tire hold-down wing bolt.

  2. Turn the tire hold-down wing bolt counterclockwise with the jack handle.
