2C_DriverAssistanceMalfunction

When Blind-Spot Collision-Avoidance Assist is not working properly, the Check Driver Assistance system warning message will appear on the instrument cluster for several seconds, and the master (X) warning light will appear on the instrument cluster. If this occurs, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

2C_CheckSideViewMirrorWarningLightInfo

When the outside rearview mirror warning light is not working properly, the Check outside rearview mirror warning light warning message will appear on the instrument cluster for several seconds, and the master (X) warning light will appear on the instrument cluster. If this occurs, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

2C_DriverAssistanceDisabledRadar

When the rear bumper around the rear corner radar or sensor is covered with foreign material, such as snow or rain, or installing a trailer or carrier, it can reduce the detecting performance and temporarily limit or disable Blind-Spot Collision-Avoidance Assist.

If this occurs, the Driver Assistance system limited. Radar blocked warning message will appear on the cluster.

Blind-Spot Collision-Avoidance Assist will operate properly when such foreign material or trailer, etc., is removed, and then the vehicle is restarted.

If Blind-Spot Collision-Avoidance Assist does not operate properly after it is removed, we recommend that your vehicle be inspected by an authorized HYUNDAI dealer.

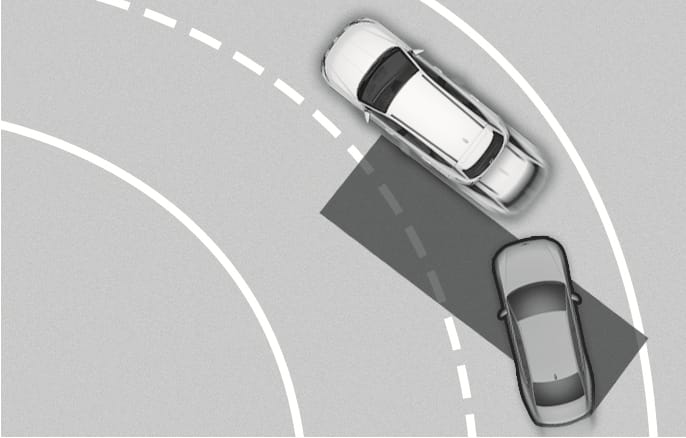

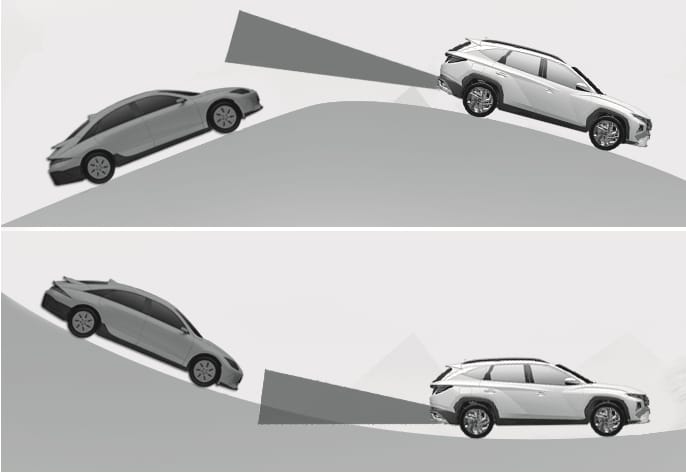

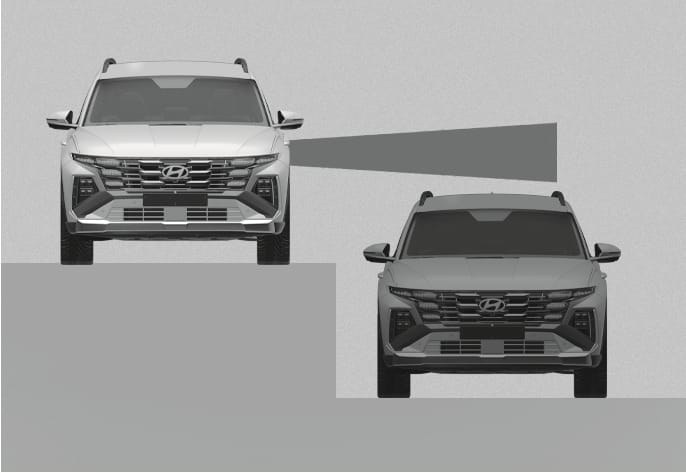

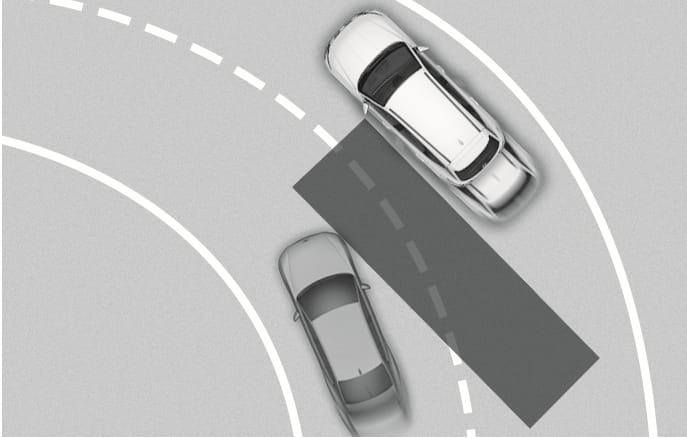

Blind-Spot Collision-Avoidance Assist may not operate properly, or it may operate unexpectedly under the following circumstances:

• There is inclement weather, such as heavy snow, heavy rain, etc.

• The rear corner radar is covered with snow, rain, dirt, etc.

• The temperature around the rear corner radar is high or low

• Driving on a highway ramp

• The road pavement (or the peripheral ground) abnormally contains metallic components (for example, possibly due to subway construction)

• There is a fixed object near the vehicle, such as sound barriers, guardrails, central dividers, entry barriers, street lamps, signs, tunnels, walls, etc. (including double structures)

• Driving in vast areas where there are few vehicles or structures (for example, desert, meadow, suburb, etc.)

• Driving through a narrow road where trees or grass are overgrown

• Driving on a wet road surface, such as a puddle on the road

• The other vehicle drives very close behind your vehicle, or the other vehicle passes by your vehicle in close proximity

• The speed of the other vehicle is very fast that it passes by your vehicle in a short time

• Your vehicle passes by the other vehicle

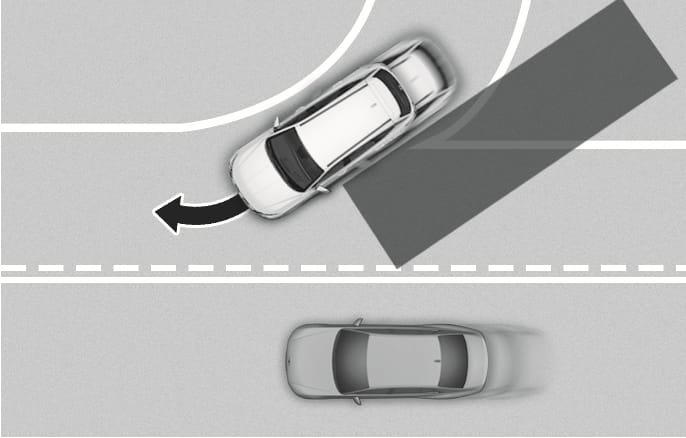

• Your vehicle changes lane

• Your vehicle has started at the same time as the vehicle next to you and has accelerated

• The vehicle in the next lane moves two lanes away from you, or when the vehicle two lanes away moves to the next lane from you

• A trailer, carrier or other attachment is installed around the rear corner radar

• The bumper around the rear corner radar is covered with objects, such as a bumper sticker, bumper guard, bike rack, etc.

• The bumper around the rear corner radar is impacted, damaged or the radar is out of position

• Your vehicle height is low or high due to heavy loads, abnormal tire pressure, etc.

Blind-Spot Collision-Avoidance Assist may not operate properly, or it may operate unexpectedly when the following objects are detected:

• A motorcycle or bicycle is detected

• A vehicle such as a flat trailer is detected

• A big vehicle such as a bus or truck is detected

• A moving obstacle such as a pedestrian, animal, shopping cart or a baby stroller is detected

• A vehicle with low height such as a sports car is detected

Braking control may not work, driver's attention is required in the following circumstances:

• The vehicle severely vibrates while driving over a bumpy road, uneven road or concrete patch

• Driving on a slippery surface due to snow, water puddle, ice, etc.

• The tire pressure is low or a tire is damaged

• The braking system has been modified

• The vehicle makes abrupt lane changes
