Checking the parking brake

Hand type

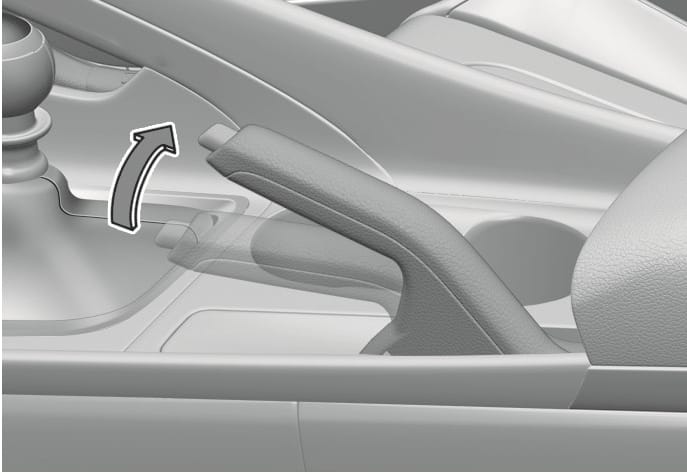

2025 Hyundai Tucson hand type parking brake image. A curved arrow indicates the upward pulling motion of the parking brake lever on the center console. This illustrates the operation of applying the parking brake.

2C_ApplyingParkingbrake_Handtype

Check the stroke of the parking brake by counting the number of “clicks’’ heard while fully applying it from the released position. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, we recommend that the system be serviced by an authorized HYUNDAI dealer.

Stroke : 5-6 "clicks" at a force of 20 kg (44 lbs, 196 N).

Foot type

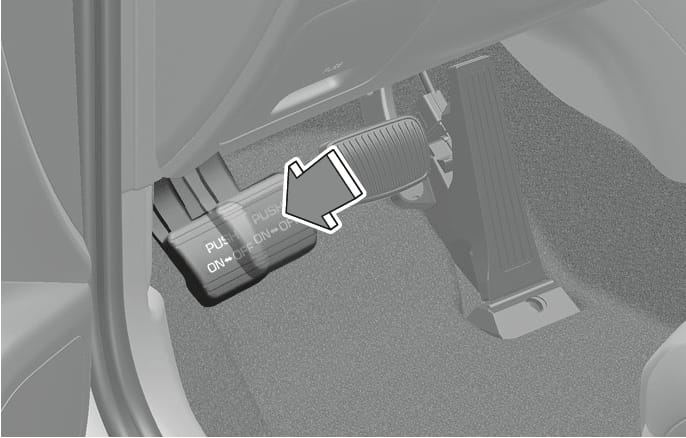

2025 Hyundai Tucson foot-type parking brake pedal image. A large arrow points diagonally downward, indicating the motion to depress the pedal located on the left side of the footwell. The pedal surface displays the text 'PUSH ON <-> OFF'. Explains the function of applying or releasing the parking brake by pushing the pedal.

2C_ReleasingParkingbrake_Foottype

Check whether the stroke is within specification when the parking brake pedal is depressed with 20 kg (44 lb, 196N) of force. Also, the parking brake alone should securely hold the vehicle on a fairly steep grade. If the stroke is more or less than specified, we recommend that the system be serviced by an authorized HYUNDAI dealer.

Stroke : 3 notch
