Headlight leveling device

Manual type

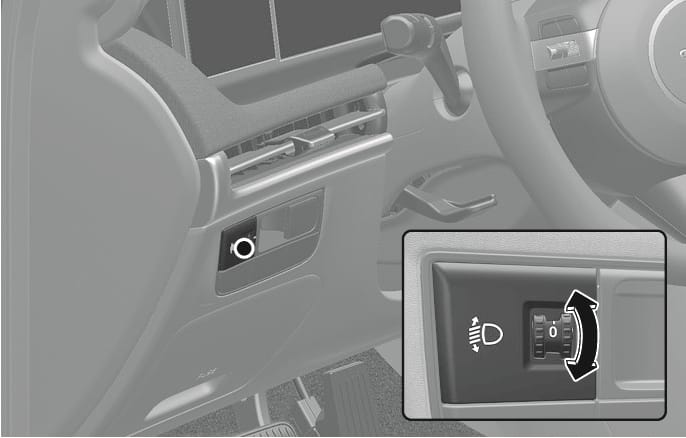

2025 Hyundai Tucson Headlight leveling device image. It shows the location of the beam leveling switch on the dashboard to the left of the steering wheel. A detailed inset displays the thumbwheel dial with a headlight icon and vertical arrows, featuring a curved arrow indicating the rotation direction to adjust the number setting. This explains the function of manually adjusting the headlight beam level according to the number of passengers and loading weight.

2C_HeadLampLevelingAuto

To adjust the headlight beam level according to the number of the passengers and loading weight in the luggage area, turn the beam leveling switch.

The higher the number on the switch position, the lower the headlight beam level. Always keep the headlight beam at the proper leveling position, or headlights may dazzle other road users.

Listed below are examples of appropriate switch settings for differing loads. For loading conditions other than those listed, adjust the switch position to the most similar situation.

Loading condition

Switch position

Driver only

0

Driver + Front passenger

0

Full passengers (including driver)

1

Full passengers (including driver) + Maximum permissible loading

2

Driver + Maximum permissible loading

3

If the function does not work properly, we recommend that the system be inspected by an authorized HYUNDAI dealer. Do not attempt to inspect or replace the wiring yourself.

Automatic type

This is a device that automatically adjusts the angle of the headlights when the inclination of the vehicle changes according to the change in vehicle weight (occupants and cargo loading) to secure the driver's visibility at night and reduce the fatigue of the occupants. It can also provide constant angle lighting under different conditions.

If the automatic headlight angle adjustment device does not work even when the vehicle is tilted backwards due to changes in the occupants or vehicle load, or if the headlight angle does not work at a certain angle due to the top or bottom tilt, we recommend that the system be inspected by an authorized HYUNDAI dealer. Do not attempt to inspect or replace the wiring yourself.
