Opening the fuel filler door

  1. Turn the engine off.

  2. Ensure the all doors are unlocked.

  3. Push the fuel filler door open button.

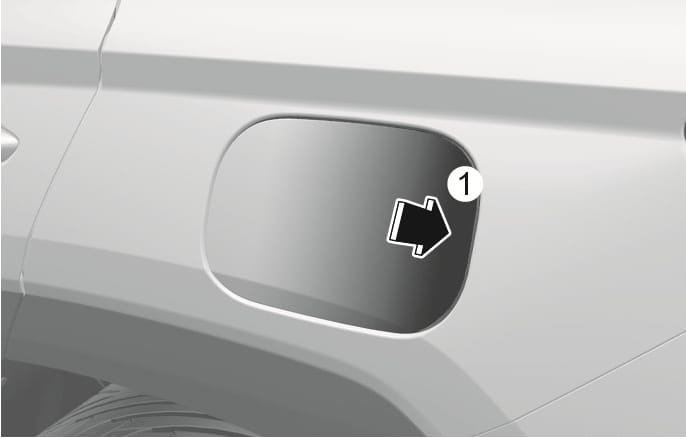

    2C_FuelInletDoor

  4. Pull the fuel filler door (1) outward to access the fuel tank cap.

  5. To remove the fuel tank cap (2), turn it counterclockwise. You may hear a hissing noise as the pressure inside the tank equalizes.

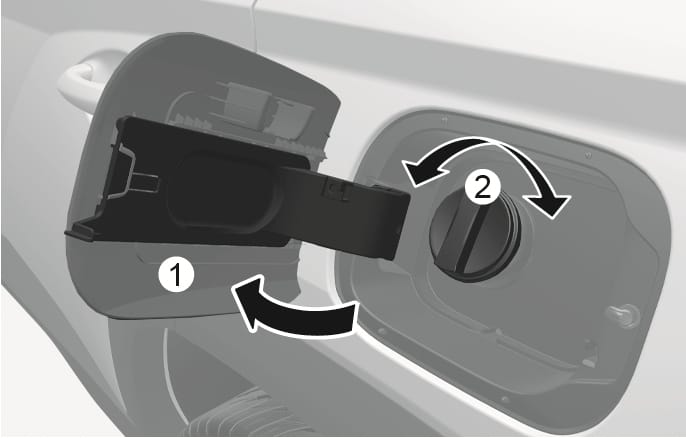

    2C_FuelInletDoorOpen

  6. Place the fuel tank cap (2) on the fuel filler door (1).

The fuel filler door will unlock when all doors are unlocked.

To unlock fuel filler door:

  • Press the unlock button on your smart key

  • Press the Central Door unlock button on armrest trim of driver's door

    The fuel filler door will lock when all doors are locked.

To lock fuel filler door:

  • Press the lock button on your smart key

  • Press the Central Door lock button on armrest trim of driver's door

* All doors will automatically lock after the vehicle speed exceeds 15 km/h (9 mph).

Fuel filler door is also locked when vehicle speed exceeds 15 km/h (9 mph).
