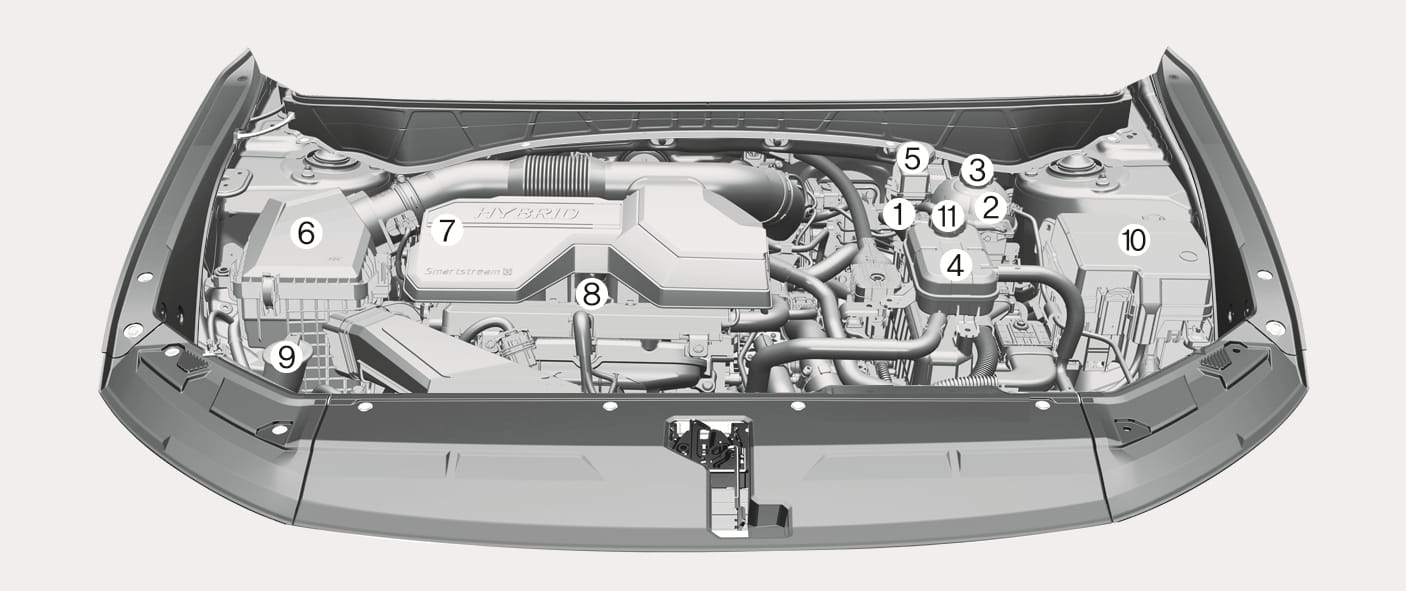

Engine compartment overview- Plug-in hybrid vehicle

1C_EngineRoom

The actual engine compartment in the vehicle may differ from the illustration.

  1. ECU
  2. Engine coolant reservoirEngine coolant/Battery system coolant
  3. Engine coolant reservoir capEngine coolant/Battery system coolant
  4. Inverter coolant reservoirEngine coolant/Battery system coolant
  5. Brake fluid reservoirBrake fluid
  6. Air cleanerAir cleaner
  7. Engine oil filler capEngine oil
  8. Engine oil dipstickEngine oil
  9. Windshield washer fluid reservoirWasher fluid
  10. Fuse boxEngine compartment panel fuse replacement
  11. Inverter coolant reservoir capEngine coolant/Battery system coolant
