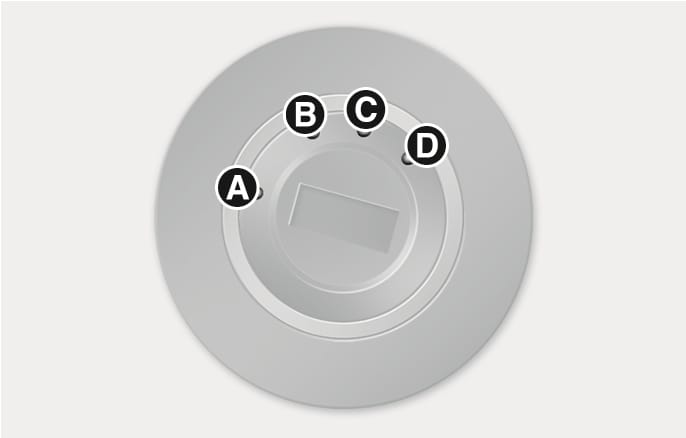

Key ignition switch

2C_IgnitionSwitch

  1. LOCK
  2. ACC
  3. ON
  4. START
  • Never turn the ignition switch to the LOCK or ACC position while the vehicle is moving except in an emergency. This may result in the engine turning off and loss of power assist for the steering and brake systems. This may cause loss of directional control and braking function, which could cause a collision.

  • Before leaving the driver's seat, always make sure the shift lever is in the P (Park) position, apply the parking brake, turn the ignition switch to the LOCK position, and take the keys with you to prevent unintended vehicle movement.

Never use aftermarket keyhole covers. These covers may prevent the vehicle from recognizing the key and not allow the vehicle to start.

Key ignition switch positions

Switch Position

Action

Notes

LOCK

To turn the ignition switch to the LOCK position, push the key in at the ACC position and turn the key towards the LOCK position.

The ignition key can be removed in the LOCK position.

The steering wheel locks to protect the vehicle from theft. (if equipped)

Always stop the vehicle before turning the ignition switch to the LOCK position.

ACC

Some electrical accessories are usable. The steering wheel unlocks.

If difficulty is experienced turning the ignition switch to the ACC position, turn the key while turning the steering wheel right and left to release.

ON

This is the normal key position when the engine has started. All features and accessories are usable.

The warning lights can be checked when you turn the ignition switch from ACC to ON.

Do not leave the ignition switch in the ON position when the engine is not running to prevent the battery from discharging.

START

To start the engine, turn the ignition switch to the START position. The switch returns to the ON position when you let go off the key.

The engine attempts to start until you release the key.

Starting the engine
  • Always wear appropriate shoes when operating your vehicle. Unsuitable shoes such as high heels, ski boots, sandals, and flip-flops may interfere with your ability to use the brake, accelerator, and clutch pedals. Do not drive barefoot.

  • Do not start your vehicle with the accelerator pedal depressed. Place your foot firmly on the brake pedal while starting your vehicle.

  • Wait until the engine is at normal idle before shifting gears and releasing the brake. Your vehicle may move suddenly if your vehicle is shifted while the engine RPM is high. It may cause damage to the transmission system.

  1. Make sure the parking brake is applied.

  2. Make sure the gear is in P (Park).

  3. Depress the brake pedal.

  4. Turn the ignition switch to the START position. Hold the key (maximum of 10 seconds) until the engine starts, and then release the key.

  • Do not wait for the engine to warm up or race the engine while the vehicle remains stationary.

  • Start driving at moderate engine speeds. Do not rapidly accelerate and decelerate while driving.

To prevent damage to the vehicle:

  • Do not hold the ignition key in the START position for more than 10 seconds before trying again.

  • Do not turn the ignition switch to the START position with the engine running. It may damage the starter.

  • If the engine stalls while the vehicle is moving, shift the gear to N (Neutral) and use the ignition switch to attempt to restart the engine.

  • Do not push or tow your vehicle to start the engine.

Turning off the engine
  1. Stop the vehicle and depress the brake pedal fully.

  2. Make sure the gear is in P (Park).

  3. Turn the ignition switch to the LOCK position and apply the EPB.

  4. Take the key with you when you leave the vehicle.
