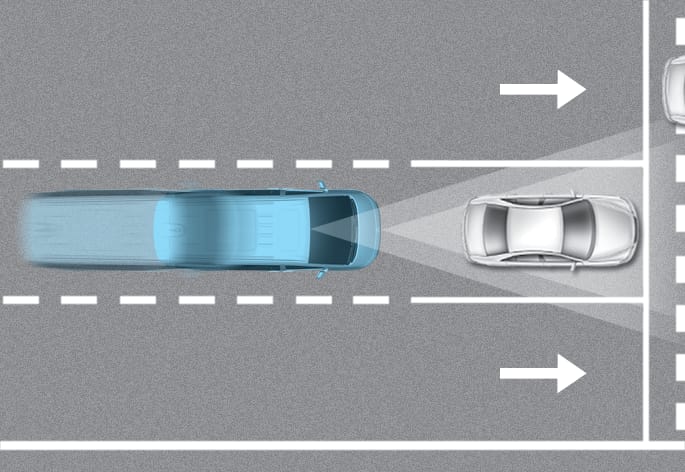

Forward Collision-Avoidance Assist (FCA) (Sensor fusion)

OUS4071116

Forward Collision-Avoidance Assist is designed to help detect and monitor the vehicle ahead or help detect a pedestrian or cyclist in the roadway and warn the driver that a collision is imminent with a warning message, an audible warning and application of emergency braking.

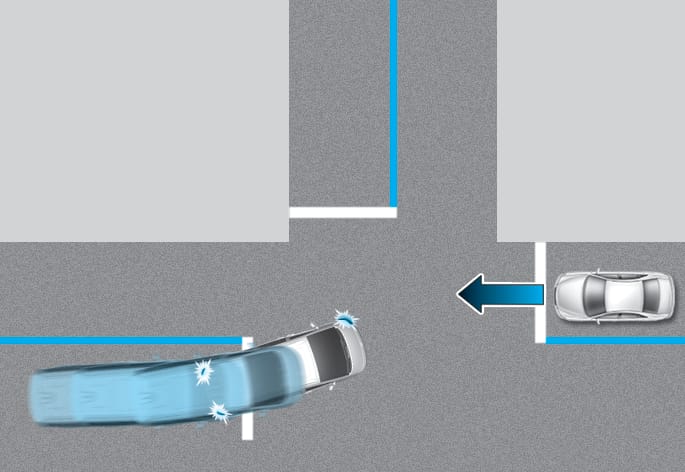

Junction Turning function

OUS4072117

Junction Turning function can help avoid a collision with an oncoming vehicle in an adjacent lane when turning left (left-hand drive) or right (right-hand drive) at a crossroad with the turn signal on by applying emergency braking.

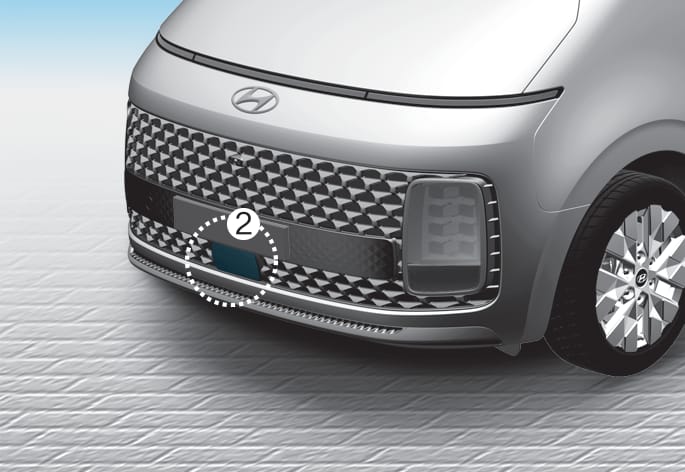

Detecting sensor

OUS4071001

OUS4071002

  1. : Front view camera
  2. : Front radar

Refer to the picture above for the detailed location of the detecting sensors.

Take the following precautions to maintain optimal performance of the detecting sensor:

  • Never disassemble the detecting sensor or sensor assembly, or cause any damage to it.

  • If the detecting sensors have been replaced or repaired, we recommend that you have your vehicle inspected by an authorized HYUNDAI dealer.

  • Never install any accessories or stickers on the front windshield, or tint the front windshield.

  • Exercise extreme caution to keep the front view camera dry.

  • Never place any reflective objects (i.e. white paper, mirror) over the dashboard.

  • Do not apply license plate frame or objects, such as a bumper sticker, film or a bumper guard, near the front radar cover.

  • Always keep the front radar and cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • If the radar or around the radar has been damaged or impacted in any way, Forward Collision-Avoidance Assist may not properly operate even though a warning message does not appear on the cluster. We recommend that the vehicle be inspected by an authorized HYUNDAI dealer.

  • Use only genuine parts to repair or replace a damaged front radar cover. Do not apply paint to the front radar cover.

  • Do not place any objects near the front windshield or install any accessories on the front windshield. It can affect the performance of the defogging and defrosting function of the climate control system, which may prevent the Driver Assistance systems from operating.

  • The genuine HYUNDAI front radar sensor cover is a part with quality and performance ensured. If arbitrarily applying paint on or changing the cover, Forward Collision-Avoidance Assist may not function properly. Use only HYUNDAI Genuine Parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • If a trailer, carrier, etc. is installed, it may adversely affect the performance of Forward Collision-Avoidance Assist may not operate properly.

  • Do not arbitrarily attach objects (accessories, moldings, stickers, films, packaging materials, etc.) to the detection sensor or its surroundings, or paint the bumper.
